1. Description
This component operates the General Spring Support function in Civil NX.
Enter general spring support with 6x6 coupled matrix for stiffness, damping and mass, which includes the components related to other degrees-of-freedom with respect to GCS or node's local coordinate system for selected nodes.
The Assign General Spring Supports function can be found in the Civil NX main menu,select [Boundary] tab > [Spring Supports] group > [General Spring Supports]
2. Grasshopper Path
[Midas] > [Boundary] > [Assign General Spring Supports]

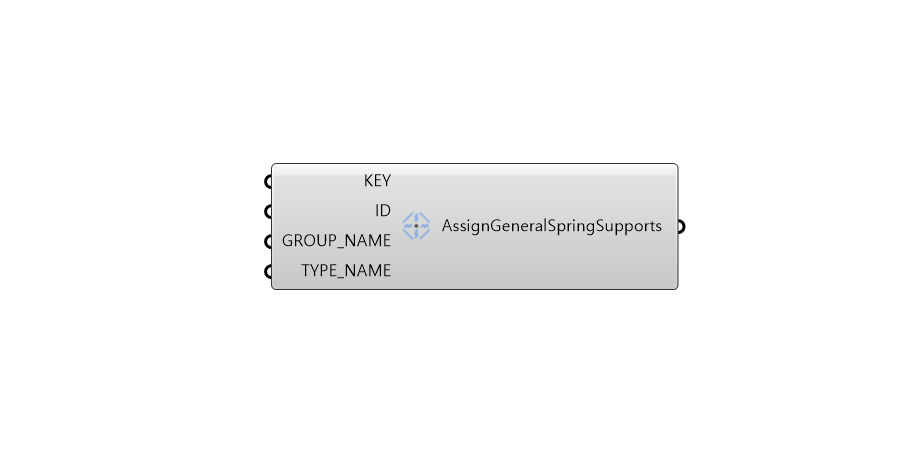

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Key | Node No. | Integer | - | - |
| 2 | ID | Serial Number | Integer | - | - |
| 3 | GROUP_NAME | Boundary Group Name | String | - | - |
| 4 |
TYPE_NAME |
General Spring Type Name | String | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | GSPR | Assign General Spring Supports | Json | PUT/DELETE | - |
5. Reference API Manual Link
Assign General Spring Supports
