1. Description
This component operates the Beam End Release function in Civil NX.
Enter the end release conditions (Hinge, Sliding, Roller Joint and Partial Fixity) at both ends of beam elements, or replace or remove previously entered end release conditions.
The Beam End Release function can be found in the Civil NX main menu,select [Boundary] tab > [Release/Offset] group > [Beam End Release]
2. Grasshopper Path
[Midas] > [Boundary] > [Beam End Release]

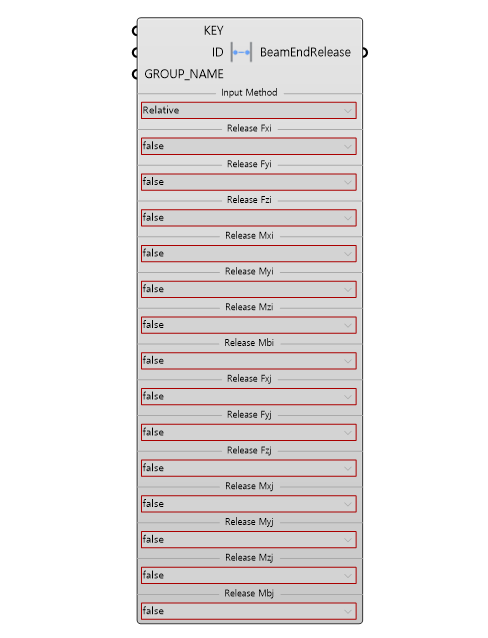

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Key | Element ID | Integer | - | - |
| 2 | ID | Serial Number | Integer | - | - |
| 3 | GROUP_NAME | Boundary Group Name | String | - | - |
| 4 | Input Method | Relative or Value Type | Select | - | - |
| 5 | Release Fxi Release Fyi Release Fzi Release Mxi Release Myi Release Mzi Release Mbi |
Release i-Node Partial Fixity (Fxi, Fyi, Fzi, Mxi, Myi, Mzi, Mbi) |
Select | False |
- |
| 6 | Release Fxj Release Fyj Release Fzj Release Mxj Release Myj Release Mzj Release Mbj |
Release j-Node Partial Fixity (Fxi, Fyi, Fzi, Mxi, Myi, Mzi, Mbi) |
Select | False | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | FRLS | Assign Beam End Release | Json | PUT/DELETE | - |
5. Reference API Manual Link
