1. Description
This component operates the SRC type material among Material Properies function in Civil NX.
Enter the isotropic and orthotropic material properties. The user should enter the orthotropic material in User Defined Material.
The SRC type material among Material Properies can be found in the Civil NX main menu,select [Properties] tab > [Material Properties] group > [Material Properties] menu > Material
2. Grasshopper Path
[Midas] > [Properties] > [SRC Material]

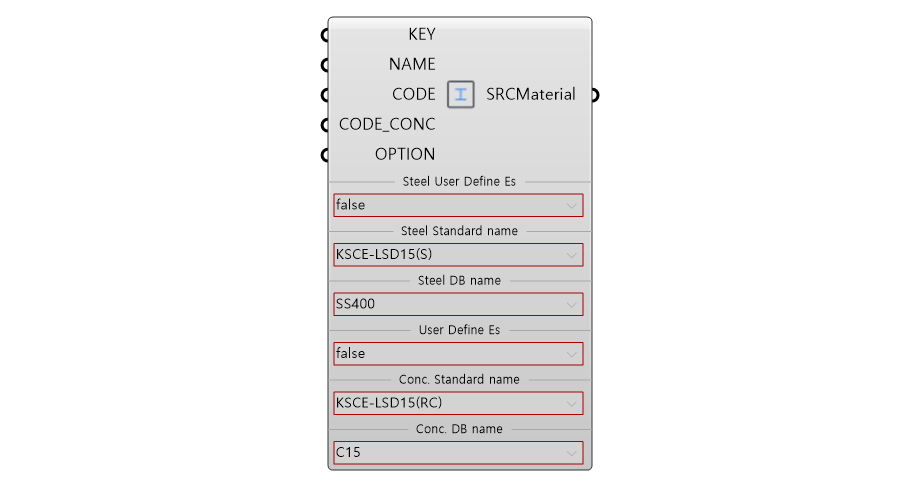

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Material ID | Integer | 1 | - |
| 2 | NAME | Name | String | - | - |
| 3 | CODE |
Steel Code name |
String | - | - |
| 4 | CODE_CONC |
Concrete Code name |
String | - | |
| 5 | OPTION | Additional Option | Object | - | Material Additional Option |
| 6 | Steel User Define Es |
Steel User Define Es |
Select | false | - |
| 7 | Steel Standard name | Steel Standard name | Select | KSCE-LSD15(S) | - |
| 8 | Steel DB name | Steel DB name | Select | SS400 | - |
| 9 | User Define Es |
Concrete User Define Es |
Select | false | - |
| 10 | Conc.Standard name | Concrete Standard name | Select | KSCE-LSD15(RC) | - |
| 11 | Conc. DB name | Concrete DB name | Select | C15 | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MATL | Create SRC Material Property | Json | Put/Delete | - |
5. Reference API Manual Link
