1. Description
This component operates the Time Dependent Material(Creep/Shrinkage) function in Civil NX.
Define the time dependent creep and shrinkage material data for concrete. The properties are applied to Construction stage analysis and Heat of hydration analysis.
The Time Dependent Material(Creep/Shrinkage) can be found in the Civil NX main menu,select [Properties] tab > [Material Properties] group > [Time Dependent] menu > Creep/Shrinkage
2. Grasshopper Path
[Midas] > [Properties] > [Creep/Shrinkage]

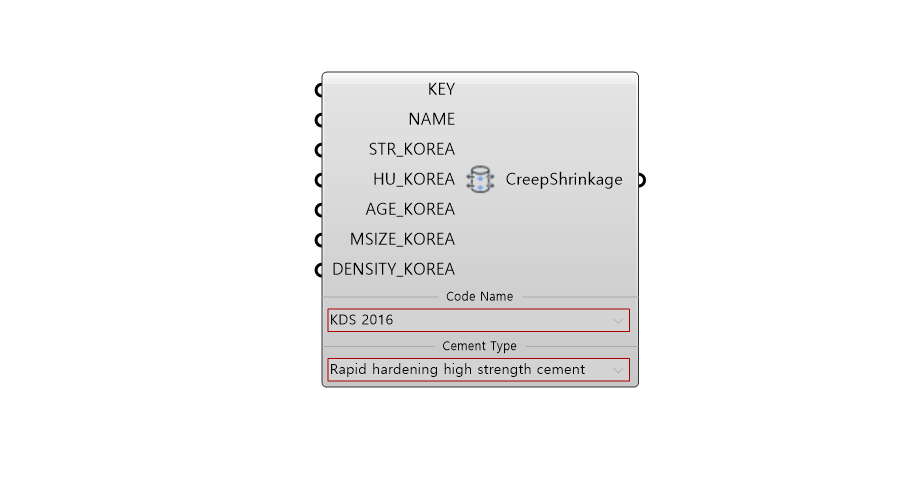

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Creep&Shrinkage No. | Integer | - | - |
| 2 | NAME | Material Name | String | - | - |
| 3 | STR |
Compression Strength |
Real | - | - |
| 4 | HU |
Relative Humidity |
Real | - | - |
| 5 | AGE | Age | Real | - | - |
| 6 | MSIZE | Member Size | Real | - | - |
| 7 | DENSITY | Wieght Density | Real | - | - |
| 8 | Code Name | Code Name | Select | KDS 2016 | - |
| 9 | Cement Type |
Cement Type |
Select | RS | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TDMT | Create Creep/Shrinkage Property | Json | Put/Delete | - |
5. Reference API Manual Link
