1. Description
This component operates the Time Dependent Material(Comp.Strength) function in Civil NX.
Define Compressive Strength of concrete or the change of modulus of elasticity to reflect the variation of modulus of elasticity with time.
The Time Dependent Material(Comp.Strength) can be found in the Civil NX main menu,select [Properties] tab > [Material Properties] group > [Time Dependent] menu >Comp.Strength
2. Grasshopper Path
[Midas] > [Properties] > [CompStrength]

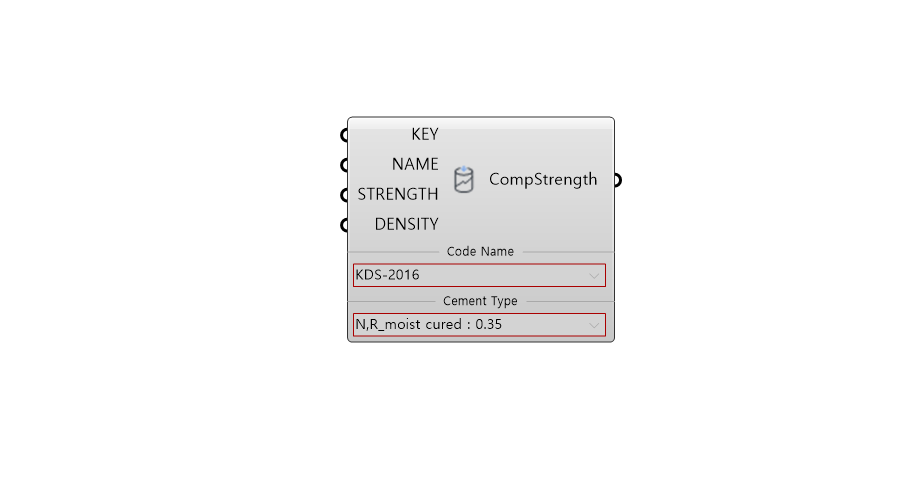

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Comp.Strength No. | Integer | - | - |
| 2 | NAME | Material Name | String | - | - |
| 3 | STRENGTH |
Compression Strength |
Real | - | - |
| 4 | DENSITY |
Weight Density |
Real | - | - |
| 5 | Code Name | Code Name | Select | KDS 2016 | - |
| 6 | Cement Type |
Cement Type |
Select | N.R | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | TDME | Create Comp.Strength Property | Json | Put/Delete | - |
5. Reference API Manual Link
