1. Description
This component converts the DB shape of Civil NX into data for the Shape of the Section component.
Section Shape List: Select a section shape (Angle, Channel, H-Section, T-Section, Box, Pipe, Double Angle, Double Channel, Solid Rectangle, Solid Round, Octagon, Solid Octagon, R-Octagon, Track, Solid Track, Half Track, Cold Formed Channel & U-Rib).
The DB Shape in the Section Propeties function can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > DB/User
2. Grasshopper Path
[Midas] > [Properties] > [Shape DB]

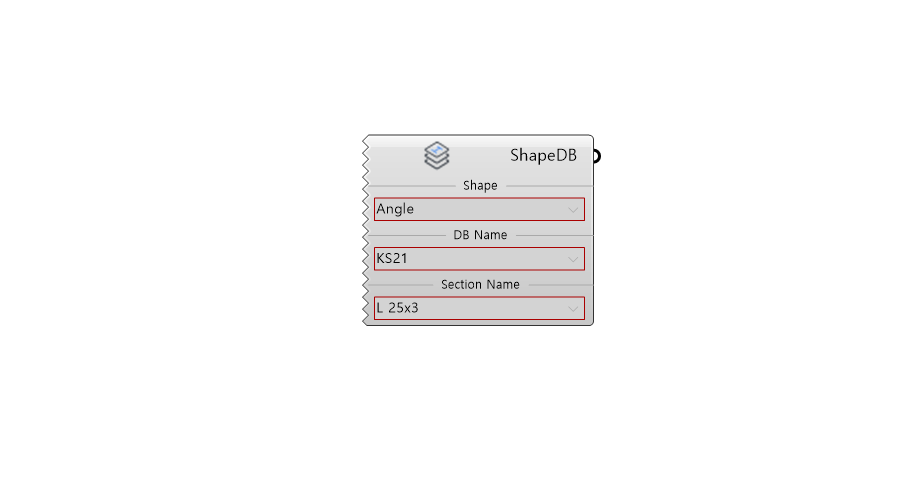

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Shape | Section Shape Type | Select | Angle | - |
| 2 | DB_Name | DB Name | Select | KS21 | - |
| 3 | Section_Name | Section Name of DB | Select | L 25x3 |
- |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create DB Shape Data | Object | - |
Section Shape SRC PSC Shape-1,2Cell Tapered Shape |
5. Reference API Manual Link
