1. Description
This component converts the User Shape of Civil NX into data for the Shape of the Section component.
Section Shape List: Select a section shape (Angle, Channel, H-Section, T-Section, Box, Pipe, Double Angle, Double Channel, Solid Rectangle, Solid Round, Octagon, Solid Octagon, R-Octagon, Track, Solid Track, Half Track, Cold Formed Channel & U-Rib).
The User Shape in the Section Propeties function can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > DB/User
2. Grasshopper Path
[Midas] > [Properties] > [Shape User]

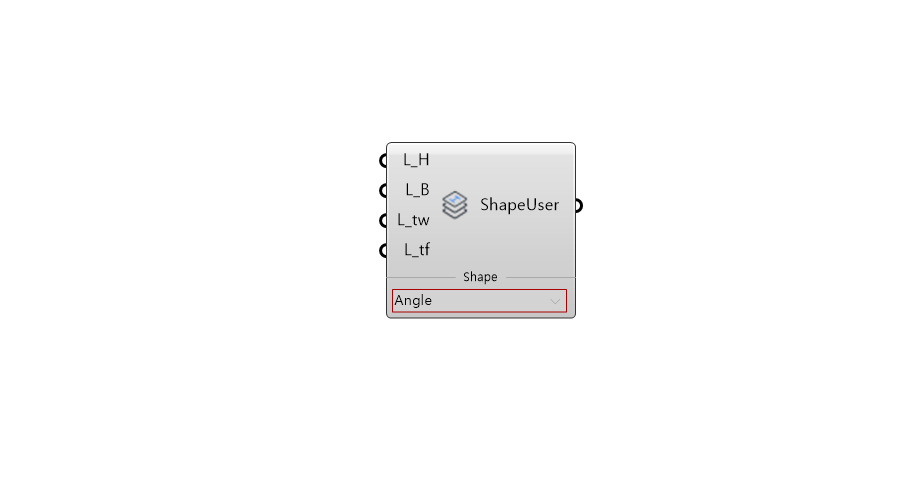

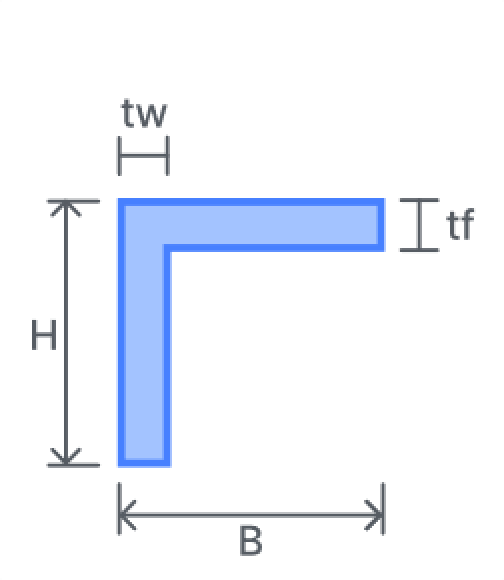

Case 1 : Angle
3. Component Image
※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | L_H | Height | Real | - | - |
| 2 | L_B | Width of top flange | Real | - | - |
| 3 | L_tw | Thickness of web | Real | - | - |
| 4 | L_tf | Thickness of flange | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create User Shape Data (Angle) |
Object | - |
Section Shape SRC PSC Shape-1,2Cell Tapered Shape |

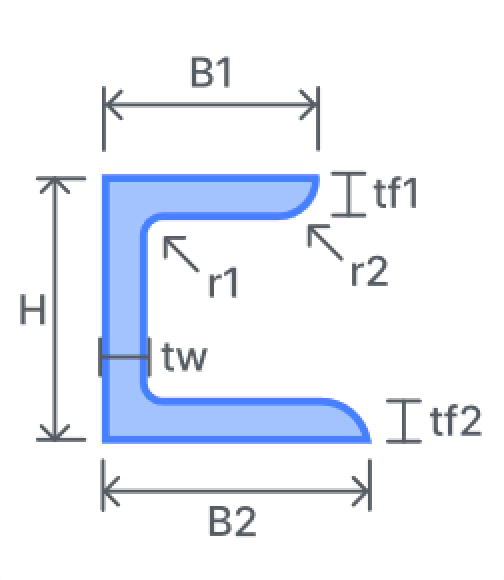

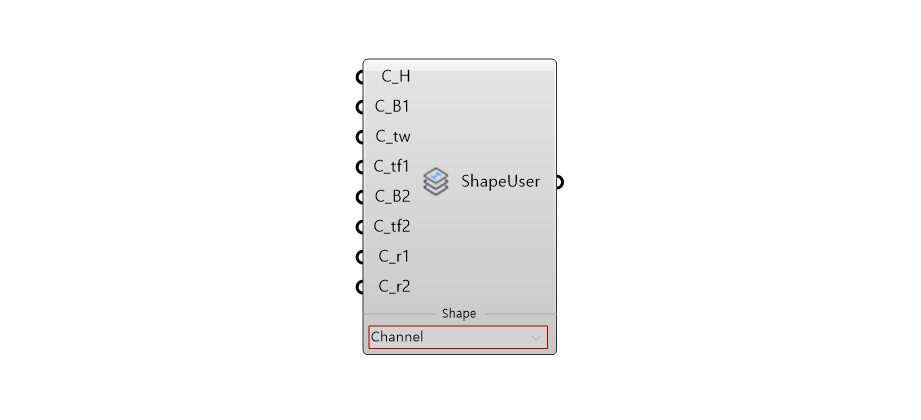

Case 2 : Channel
3. Component Image
※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | C_H | Height | Real | - | - |
| 2 | C_B1 | Width of top flange | Real | - | - |
| 3 | C_tw | Thickness of web | Real | - | - |
| 4 | C_tf1 | Thickness of top flange | Real | - | - |
| 5 | C_B2 | Width of bottom flange | Real | - | - |
| 6 | C_tf2 | Thickness of bottom flange | Real | - | - |
| 7 | C_r1 | Radius of Web-to -flange connection curvature | Real | - | - |
| 8 | C_r2 | Radius of flange corner curvature | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create User Shape Data (Channel) |
Object | - |
Section Shape SRC PSC Shape-1,2Cell Tapered Shape |

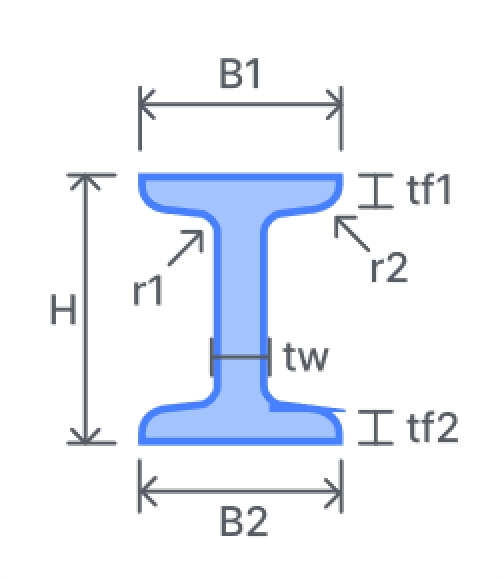

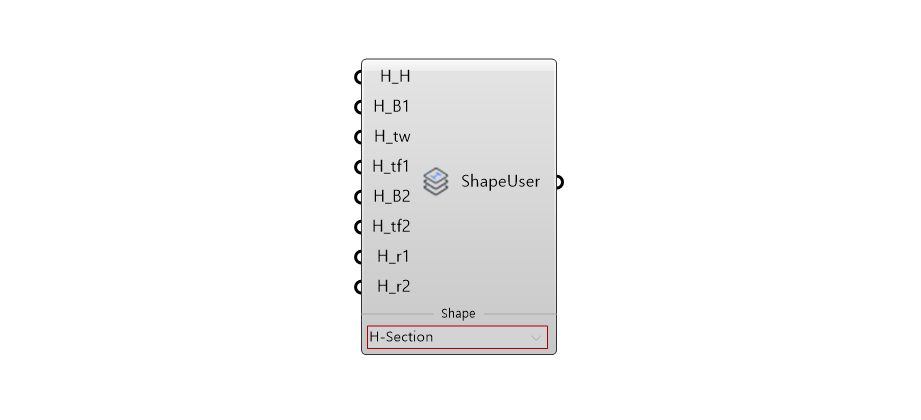

Case 3 : H-Section
3. Component Image
※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | H_H | Height | Real | - | - |
| 2 | H_B1 | Width of top flange | Real | - | - |
| 3 | H_tw | Thickness of web | Real | - | - |
| 4 | H_tf1 | Thickness of top flange | Real | - | - |
| 5 | H_B2 | Width of bottom flange | Real | - | - |
| 6 | H_tf2 | Thickness of bottom flange | Real | - | - |
| 7 | H_r1 | Radius of Web-to -flange connection curvature | Real | - | - |
| 8 | H_r2 | Radius of flange corner curvature | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create User Shape Data (H-Section) |
Object | - |
Section Shape SRC PSC Shape-1,2Cell Tapered Shape |

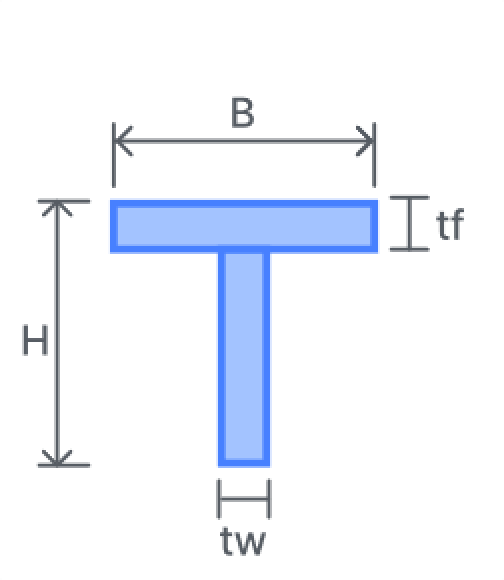

Case 4 : T-Seciton

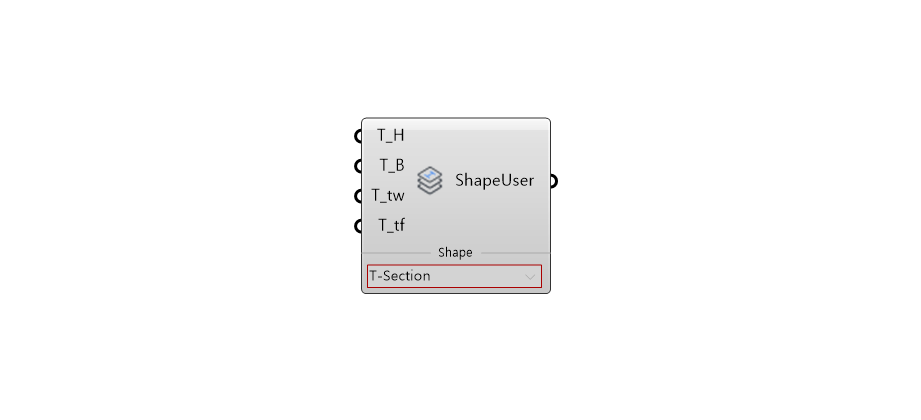

3. Component Image
※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | T_H | Height | Real | - | - |
| 2 | T_B | Width | Real | - | - |
| 3 | T_tw | Thickness of web | Real | - | - |
| 4 | T_tf | Thickness of flange | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create User Shape Data (T-Section) |
Object | - |
Section Shape SRC PSC Shape-1,2Cell Tapered Shape |

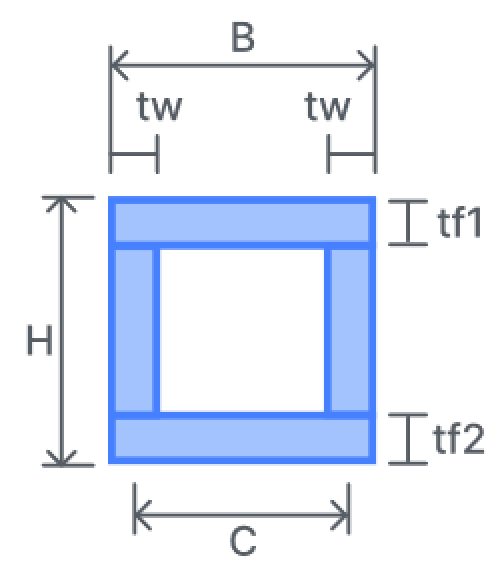

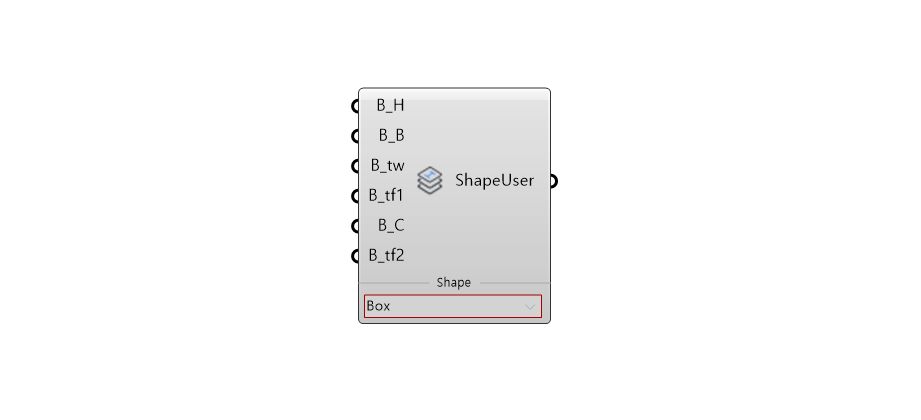

Case 5 : Box
3. Component Image
※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | B_H | Outer Height | Real | - | - |
| 2 | B_B | Outer Width | Real | - | - |
| 3 | B_tw | Thickness of web | Real | - | - |
| 4 | B_tf1 | Thickness of Top flange | Real | - | - |
| 5 | B_C | Distance between web center | Real | - | - |
| 6 | B_tf2 | Thickness of Bottom flange | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create User Shape Data (Box) |
Object | - |
Section Shape SRC PSC Shape-1,2Cell Tapered Shape |

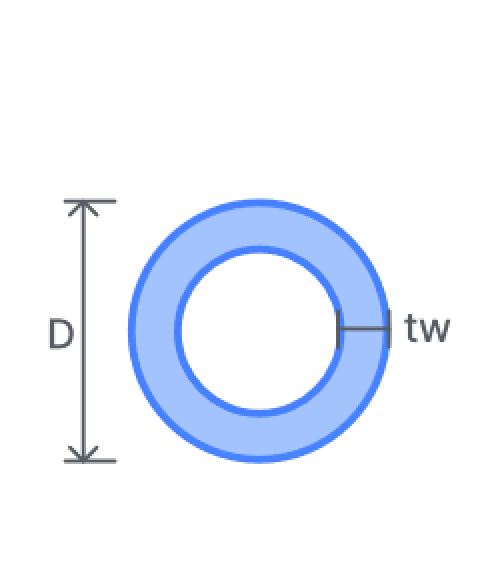

Case 6 : Pipe

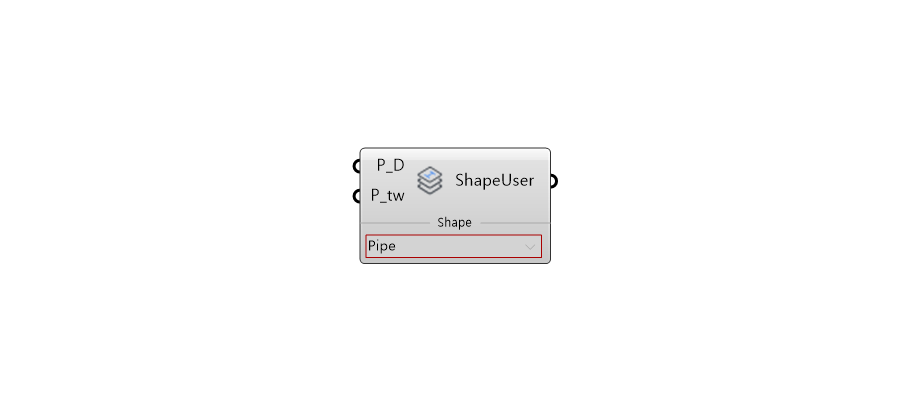

3. Component Image
※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | P_D | Outer Diameter | Real | - | - |
| 2 | P_Tw | Thickness of Pipe | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create User Shape Data (Pipe) |
Object | - |
Section Shape SRC PSC Shape-1,2Cell Tapered Shape |

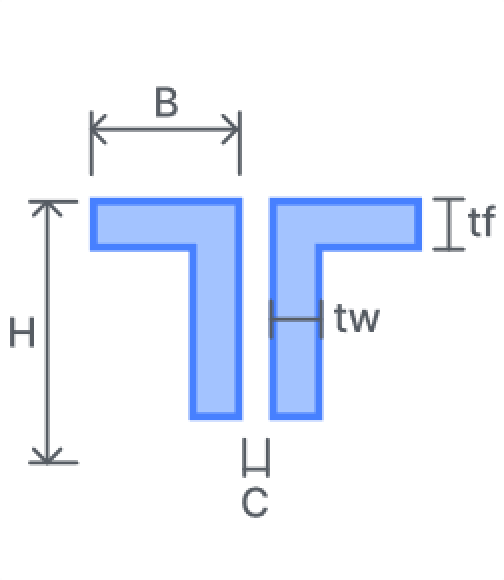

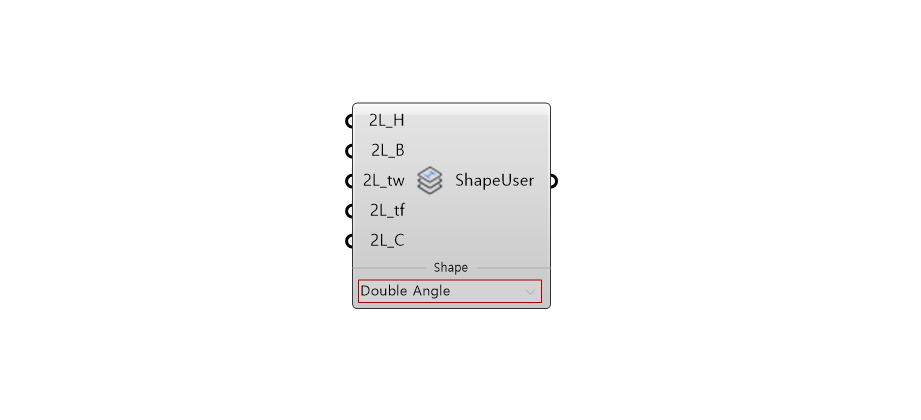

Case 7 : Double Angle
3. Component Image
※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | 2L_H | Height of Single Angle | Real | - | - |
| 2 | 2L_B | Width of Single Angle | Real | - | - |
| 3 | 2L_tw | Thickness of Web | Real | - | - |
| 4 | 2L_tf | Thickness of flange | Real | - | - |
| 5 | 2L_C | Distance of Angle | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create User Shape Data (Double Angle) |
Object | - |
Section Shape SRC PSC Shape-1,2Cell Tapered Shape |

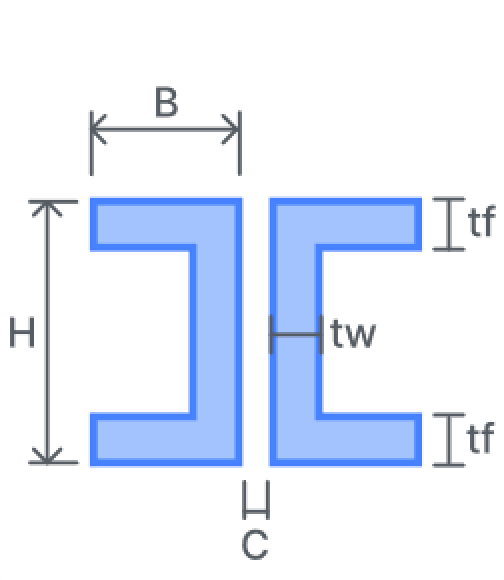

Case 8 : Double Channel

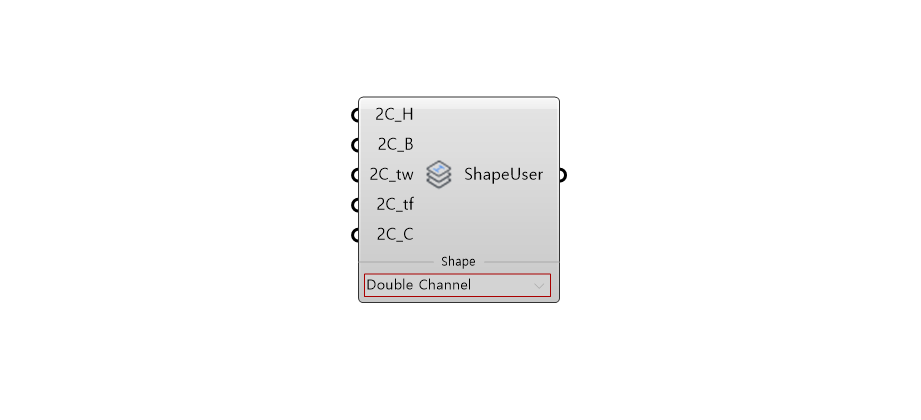

3. Component Image
※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | 2C_H | Height of Single Channel | Real | - | - |
| 2 | 2C_B | Width of Single Channel | Real | - | - |
| 3 | 2C_tw | Thickness of Web | Real | - | - |
| 4 | 2C_tf | Thickness of flange | Real | - | - |
| 5 | 2C_C | Distance of Channel | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create User Shape Data (Double Channel) |
Object | - |
Section Shape SRC PSC Shape-1,2Cell Tapered Shape |

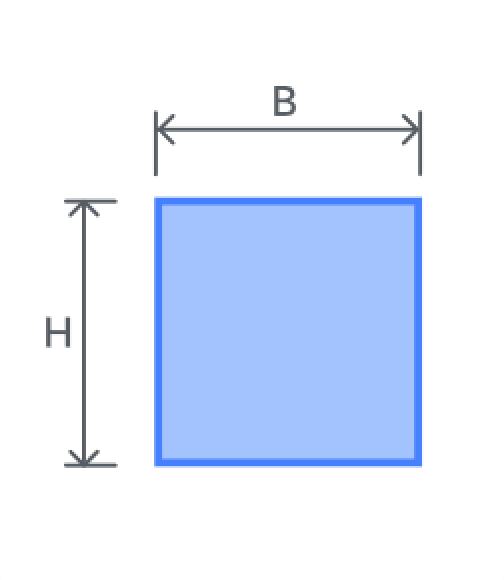

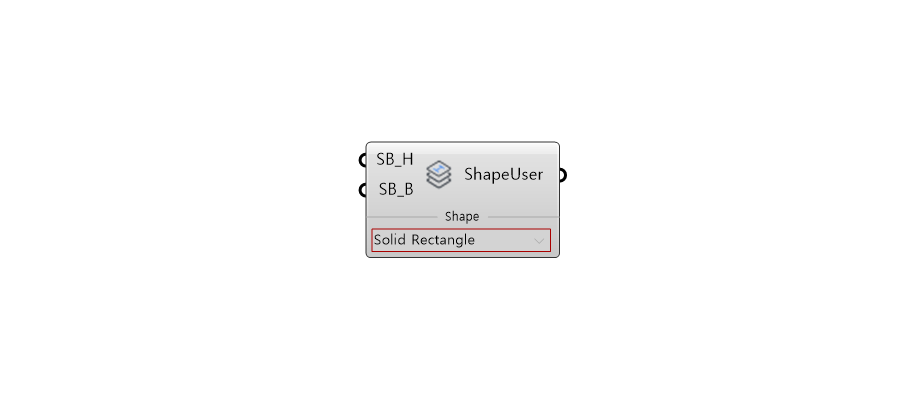

Case 9 : Solid Rectangle
3. Component Image
※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | SB_H | Height | Real | - | - |
| 2 | SB_B | Width | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create User Shape Data (Solid Rectangle) |
Object | - |
Section Shape SRC PSC Shape-1,2Cell Tapered Shape |

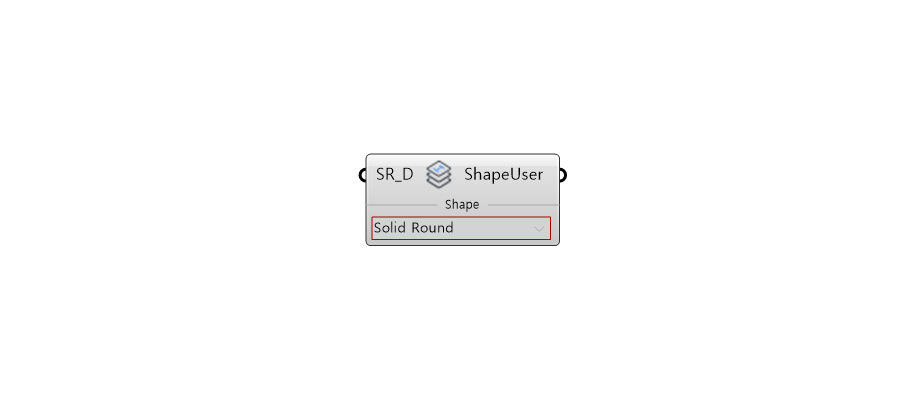

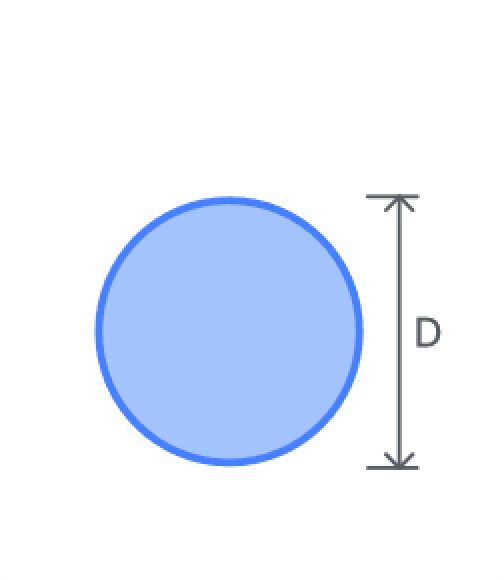

Case 10 : Solid Round
3. Component Image
※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | SR_D | Diameter | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create User Shape Data (Solid Round) |
Object | - |
Section Shape SRC PSC Shape-1,2Cell Tapered Shape |

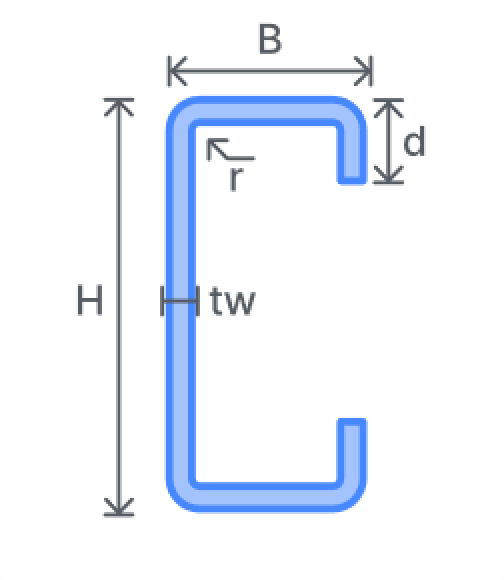

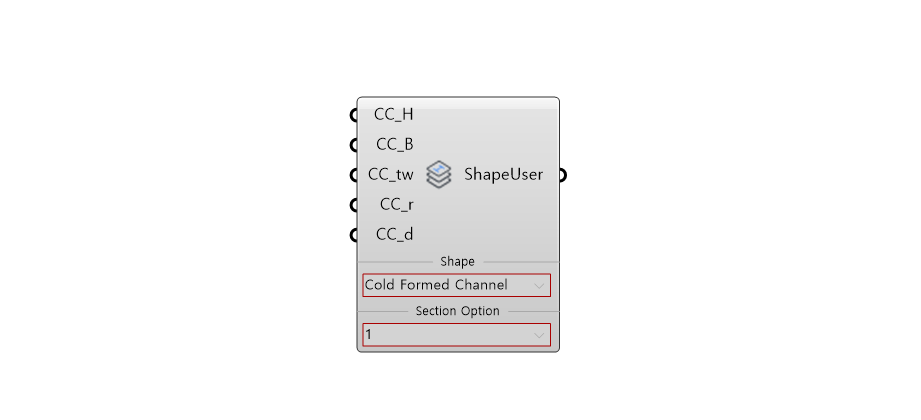

Case 11 : Cold Formed Channel
3. Component Image
※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | CC_H | Height | Real | - | - |
| 2 | CC_B | Top Width | Real | - | - |
| 3 | CC_tw | Thickness of Web | Real | - | - |
| 4 | CC_r | Radius of bend curvuture | Real | - | - |
| 5 | CC_d | Height of Bending Part | Real | - | - |
| 6 | Section Option | Section Option
· Single Section : "1" |
Select | 1 | - |
※ Ref.
"IS" : Web-to-Web Shaped Bolt Connection
"IW" : Web-to-Web Shaped Weld Joint
"BS" : Flange-to-Flange Shaped Bolt Connection
"BW" : Flange-to-Flange Shaped Weld Joint
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create User Shape Data (Cold Formed Channel) |
Object | - |
Section Shape SRC PSC Shape-1,2Cell Tapered Shape |

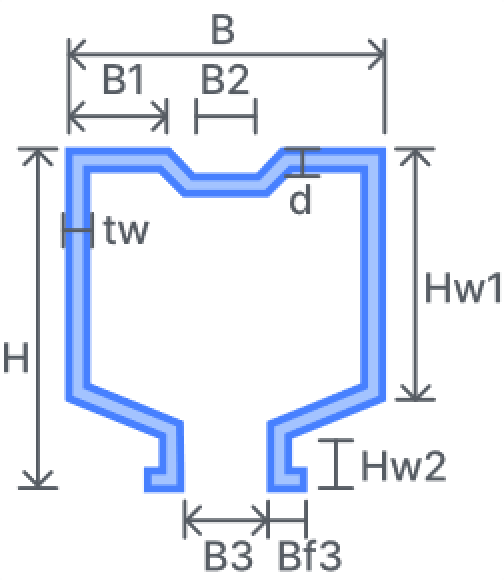

Case 12 : Upright

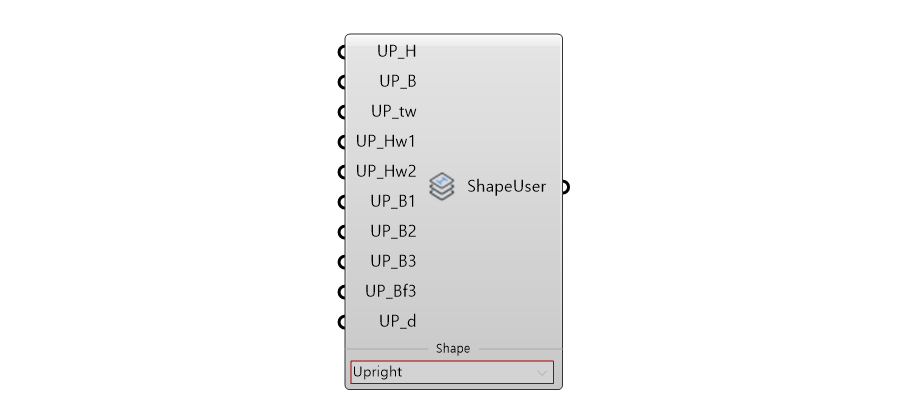

3. Component Image
※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | UP_H | Height | Real | - | - |
| 2 | UP_B | Top Width | Real | - | - |
| 3 | UP_tw | Thickness of Web | Real | - | - |
| 4 | UP_Hw1 | Height of upper Web | Real | - | - |
| 5 | UP_Hw2 | Height of lower Web | Real | - | - |
| 6 | UP_B1 | Top Side Width Dimension | Real | - | - |
| 7 | UP_B2 | Top Center Width Dimension | Real | - | - |
| 8 | UP_B3 | Bottom Width Dimension | Real | - | - |
| 9 | UP_Bf3 | Clear spacing between the bottom flanges | Real | - | - |
| 10 | UP_d | Thickness of Top Flange | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create User Shape Data (Upright) |
Object | - |
Section Shape SRC PSC Shape-1,2Cell Tapered Shape |

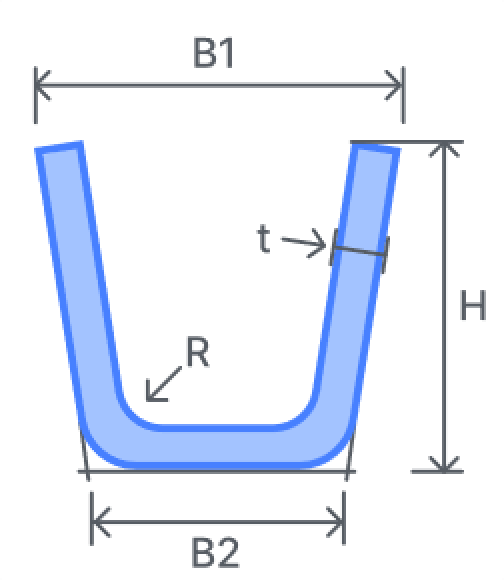

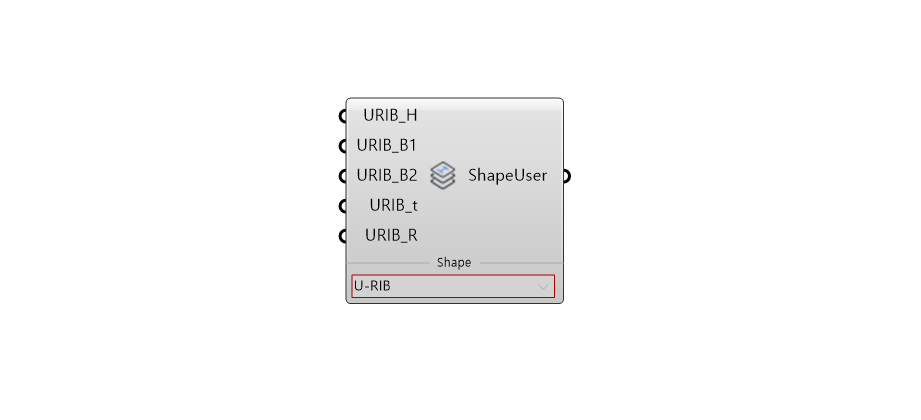

Case 13 : U-RIB
3. Component Image
※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | URIB_H | Height | Real | - | - |
| 2 | URIB_B1 | Top Width | Real | - | - |
| 3 | URIB_B2 | Bottom Width | Real | - | - |
| 4 | URIB_t | Thickness | Real | - | - |
| 5 | URIB_R | Radius of bend curvuture | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create User Shape Data (U-RIB) |
Object | - |
Section Shape SRC PSC Shape-1,2Cell Tapered Shape |
5. Reference API Manual Link
