1. Description

This component operates the Define Plane Load Type function in Civil NX.
Define types and magnitudes of Plane Loads. The Plane Loads defined by this feature are applied to the structure through the Assign Plane Loads feature. The Plane Loads can be applied to any specific locations on plate and solid elements, which constitute an analysis model. This capability alleviates the cumbersome tasks of locating nodes where loads are applied. The defined loads are converted into nodal loads based on the stiffness of the plate and solid elements and applied to the contiguous nodes.

The Define Plane Load Type funtion can be found in the Civil NX main menu,select [Load] tab > [Static Loads(Type)] group > [Pressure Load] group > [Assign Plane Loads] menu > [Define Plane Load Type] > [Point] Load Type

2. Grasshopper Path

[Midas] > [Static Loads] > [Point Plane Load Type]

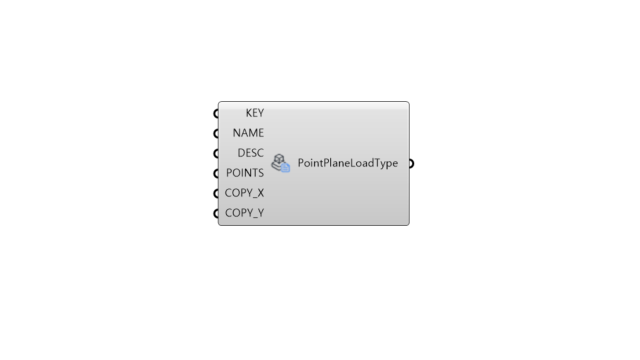

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	KEY	Plane Load Type ID	Integer	-	-
2	NAME	Plane Load Type Name	String	-	-
3	DESC	Description	String	-	-
4	POINTS	Point Coordinate & Point Loads	Array [x,y,P]	-	-
5	COPY_X COPY_Y	Magnitudes of force/moment at each location	Real	-	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	PLND	Define Point Plane Load Type	Json	PUT/DELETE	-

5. Reference API Manual Link

Define Plane Load Type
