1. Description
This component converts the SRC Shape of Civil NX into data for the Shape of the Section component.
The SRC Shape in the Section Propeties function can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > SRC
2. Grasshopper Path
[Midas] > [Properties] > [ Shape SRC ]

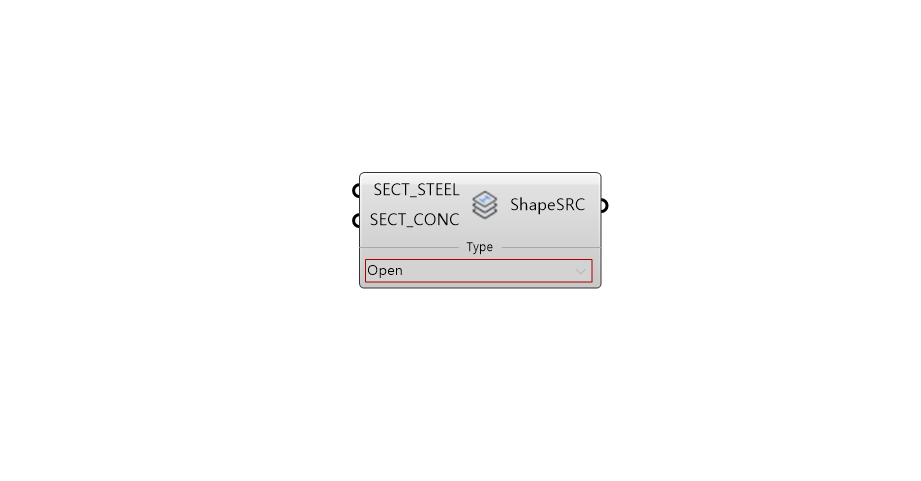

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | SECT_STEEL | Steel Dimension | Object | - |
Shape DB Shape User |
| 2 | SECT_CONC | Concrete Dimension | Object | - |
Shape User |
| 3 | Type | SRC Type | Select | Open | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create SRC Shape Data | Object | - | Section |
5. Reference API Manual Link
