1. Description
This component converts the Tapered Shape of Civil NX into data for the Shape of the Section component.
The Tapered Shape in the Section Propeties function can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > Tapered
2. Grasshopper Path
[Midas] > [Properties] > [ Tapered Shape ]

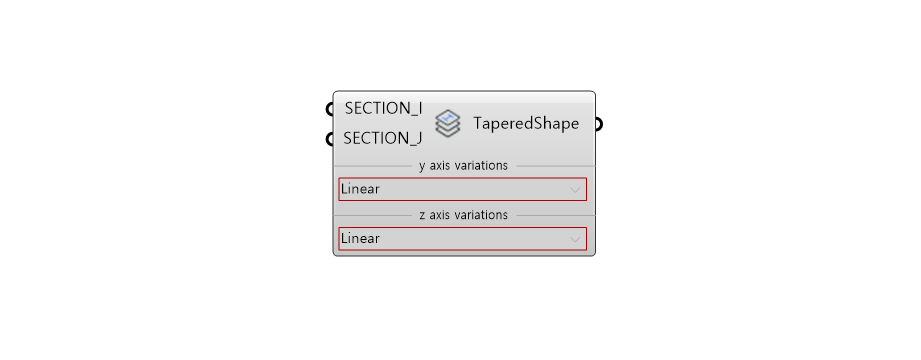

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | SECTION_I | Section I Shape | Object | - |
Shape DB Shape User |
| 2 | SECTION_J | Section J Shape | Object | - |
Shape DB Shape User |
| 3 | y axis variations | y axis variations Option | Select | Linear | - |
| 4 |
z axis variations |
y axis variations Option | Select | Linear | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SECT | Create Tapered Shape Data | Object | - | Section |
5. Reference API Manual Link
Section Properties - Tapered - DB/User
