1. Description
This component related the Beam Loads function in Civil NX. By assigning the eccentricity distance, the user can easily assign an eccentric load.
The Beam Load Eccentricity in the Beam Loads can be found in the Civil NX main menu,select [Load] tab > [Static Loads(Type)] group > [Element/Line Beam Loads]
2. Grasshopper Path
[Midas] > [Static Loads] > [Beam Load Eccentricity]

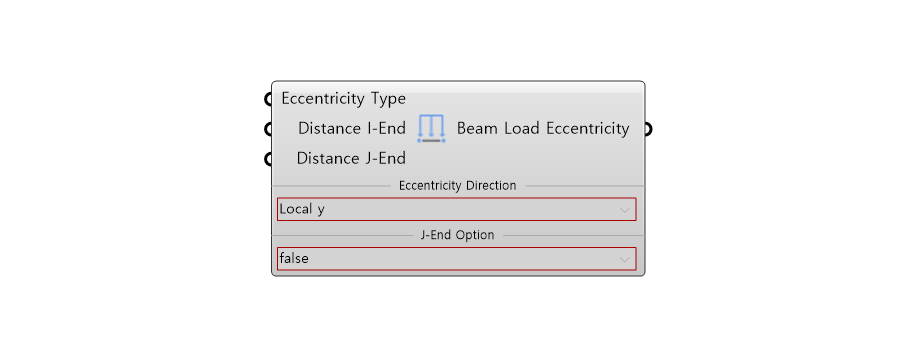

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | ECCEN_TYPE |
Eccentiricity Type |
Integer | - | - |
| 2 | I_END | Distance I-End | Real | - | - |
| 3 | J_END | Distance J-End | Real | - | - |
| 4 | Eccentricity Direction | Eccetricity Direction | Select | Local y | - |
| 5 | J-End option | Use J-End Option | Select | false | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | BMLD | Create Beam Loads | Json | - | Beam Loads |
5. Reference API Manual Link
Beam Loads (Element, Line, Typical)
