1. Description
This component operates the Point Spring Support function in Civil NX.
Enter the stiffness of linear elastic spring
The Linear Point Spring Supports function can be found in the Civil NX main menu,select [Boundary] tab > [Spring Supports] group > [Point Spring Supports]
2. Grasshopper Path
[Midas] > [Boundary] > [Linear Point Spring]

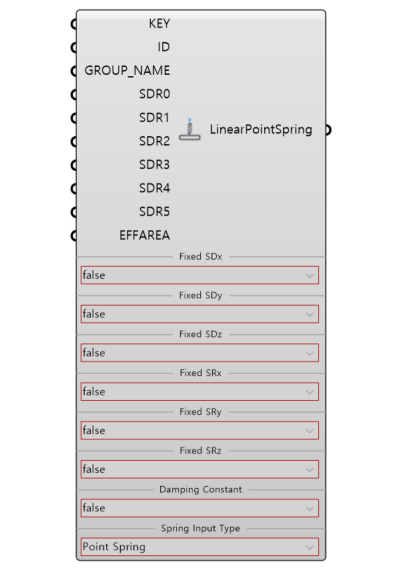

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Node No. | Integer | - | - |
| 2 | ID | Serial Number | Integer | - | - |
| 3 | GROUP_NAME | Boundary Group Name | String | - | - |
| 4 | SDR0~SDR5 | Spring Stiffness in GCS | Real | - | - |
| 5 | EFFAREA | Effective Area | Real | - | - |
| 6 | Fixed SDx,SDy,SDz SRx,SRy,SRz |
Stiffness of the selected components is entered as very large value | Select | - | - |
| 7 | Damping Constant | Check in an option to assign damping constant | Select | - | - |
| 8 | CDx,CDy,CDz CRx,CRy,CRz |
(Rotational)Damping constant in GCS | Select | - | - |
| 9 | Spring Input Type | Point Spring or Surface Spring | Select | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | NSPR | Assign Point Spring Supports | Json | PUT/DELETE | - |
| 2 | SSPS | Assign Surface Spring Supports | Json | PUT/DELETE | - |
5. Reference API Manual Link
