1. Description
This component operates the Point Spring Support function in Civil NX.
Enter the stiffness of compression only type elastic spring.
The Comp Only Point Spring Supports function can be found in the Civil NX main menu,select [Boundary] tab > [Spring Supports] group > [Point Spring Supports]
2. Grasshopper Path
[Midas] > [Boundary] > [Comp Only Point Spring]

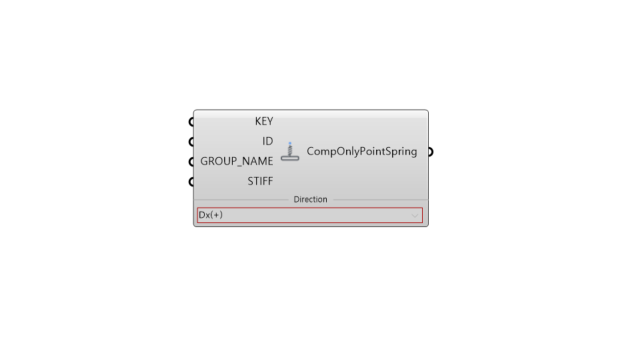

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Node No. | Integer | - | - |
| 2 | ID | Serial Number | Integer | - | - |
| 3 | GROUP_NAME | Boundary Group Name | String | - | - |
| 4 | STIFF | Comp-Only spring stiffness value | Real | - | - |
| 5 | Direction | The direction of a spring | Select | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | NSPR | Assign Point Spring Supports | Json | PUT/DELETE | - |
5. Reference API Manual Link
