1. Description
This component operates the Point Spring Support function in Civil NX.
Enter the stiffness of Multi-Linear type elastic spring.
The Multi-Linear Point Spring Supports function can be found in the Civil NX main menu,select [Boundary] tab > [Spring Supports] group > [Point Spring Supports]
2. Grasshopper Path
[Midas] > [Boundary] > [Multi Linear Point Spring]

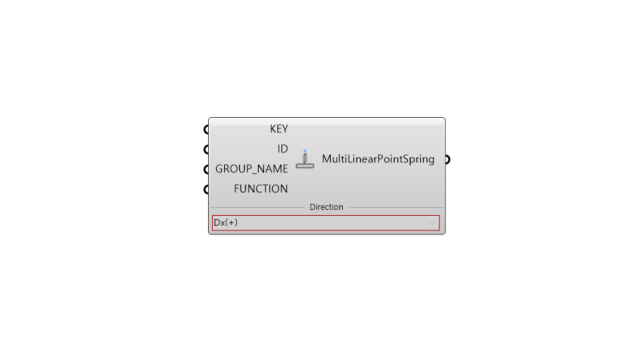

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Node No. | Integer | - | - |
| 2 | ID | Serial Number | Integer | - | - |
| 3 | GROUP_NAME | Boundary Group Name | String | - | - |
| 4 | FUNCTION | Force-Deformation Function ID | Integer | - | - |
| 5 | Direction | The direction of a spring | Select | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | NSPR | Create Point Spring Supports | Json | PUT/DELETE | - |
5. Reference API Manual Link
