1. Description
This component operates the Elastic Link function in Civil NX.
Create compression only elastic link data.
The Comp Only Elastic Link function can be found in the Civil NX main menu,select [Boundary] tab > [Links] group > [Elastic Link]
2. Grasshopper Path
[Midas] > [Boundary] > [Comp Only Elastic Link]

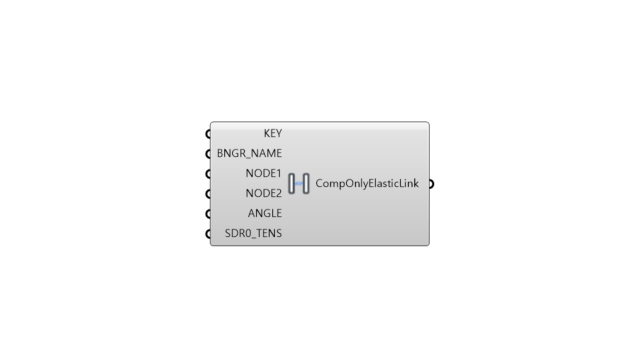

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Elastic Link ID | Integer | - | - |
| 2 | BNGR_NAME | Boundary Group Name | Integer | - | - |
| 3 | NODE1, NODE2 | Node No 1,2 | Integer | - | - |
| 4 | ANGLE | Angle defining the elastic link orientation | Real | - | - |
| 5 | SDR0_COMP | Compression Only Stiffness | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | ELNK | Create Elastic Link | Json | PUT/DELETE | - |
5. Reference API Manual Link
