1. Description
This component operates the Rigid Link function in Civil NX.
Constrain certian degrees-of-freedom of Slave Nodes to a Master Node.
The Rigid Link function can be found in the Civil NX main menu,select [Boundary] tab > [Links] group > [Rigid Link]
2. Grasshopper Path
[Midas] > [Boundary] > [Rigid Link]

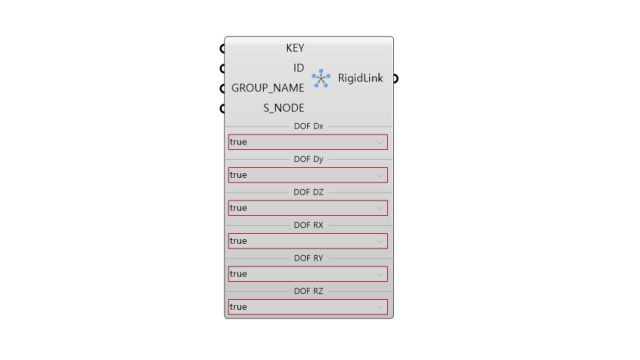

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | KEY | Rigid Link ID | Integer | - | - |
| 2 | ID | Serial Number | Integer | - | - |
| 3 | GROUP_NAME | Boudary Group Name | Integer | - | - |
| 4 | S_NODE | Sub Node ID | Integer | - | - |
| 5 | DOF DX,DY,DZ RX,RY,RZ |
Assign the DOF to be slaved to the master node | Boolean | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | RIGD | Create Rigid Link | Json | PUT/DELETE | - |
5. Reference API Manual Link
