1. Description
This component operate the Additional Option function of Shape Properties in Civil NX.
"Additional Option" includes the following content:
- Consider Shear Deformation Option
- Consider Warping Effect Option
The Additional Option funtion can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > Additional Option
2. Grasshopper Path
[Midas] > [Properties] > [ Additional Option ]

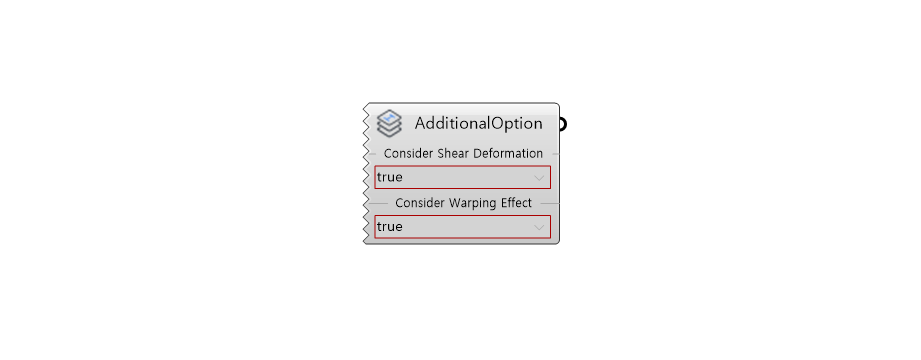

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Consider Shear Deformation | Consider Shear Deformation Option | Select | true | - |
| 2 | Consider Warping Effect | Consider Warping Effect Option | Select | true | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Consider Shear Deformation & Consider Warping Effect | Object | - | Section |
