1. Description
This component generates Outer Dimension Data for PSC 1,2 Cells in the Civil NX.
Outer Dimension can activate to define additional variant dimensions of the section based on the state of the Joint.
The Outer Dimension of PSC Shape funtion can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > [PSC] tab
2. Grasshopper Path
[Midas] > [Properties] > [ Outer Dimension of PSC Shape ]

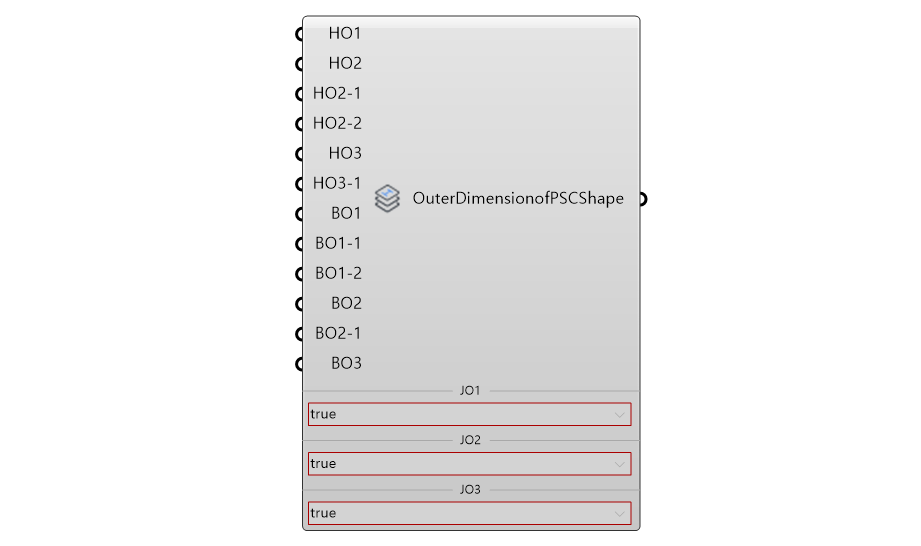

3. Component Image

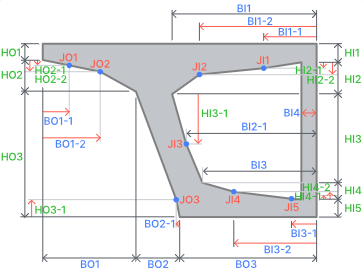

※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | HO1~HO3 | Outer-Height Dimension | Real | - | - |
| 2 | BO1~BO3 | Outer-Breadth Dimension | Real | - | - |
| 3 | JO1 | The Joint responsible for HO2-1 and BO1-1 Dimensions | Select | true | - |
| 4 | JO2 | The Joint responsible for HO2-2 and BO1-2 Dimensions | Select | true | - |
| 5 | JO3 | The Joint responsible for HO3-1 and BO2-1 Dimensions | Select | true | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Outer Dimension of PSC Shape | Object | - |
PSC Shape 1,2 Cell |
5. Reference API Manual Link
