1. Description
This component generates Inner Dimension Data for PSC 1,2 Cells in the Civil NX.
Inner Dimension can activate to define additional variant dimensions of the section based on the state of the Joint.
The Inner Dimension of PSC Shape funtion can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > [PSC] tab
2. Grasshopper Path
[Midas] > [Properties] > [ Inner Dimension of PSC Shape ]

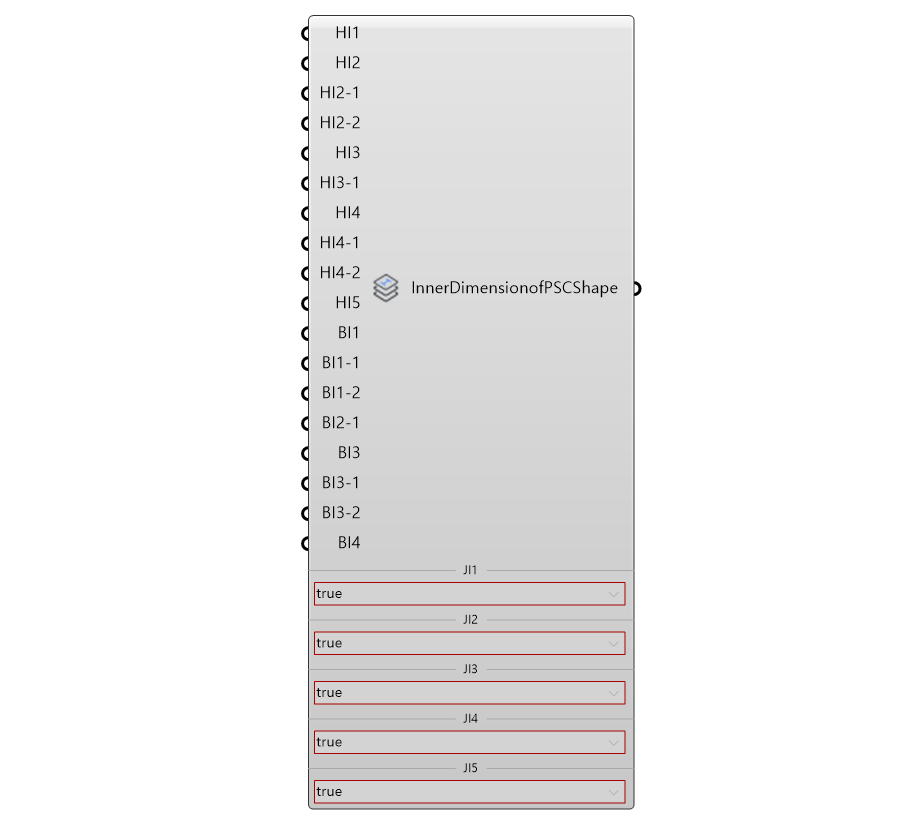

3. Component Image

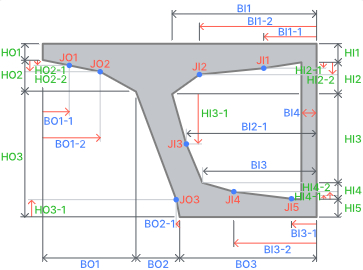

※ Ref. Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | HI1~HI5 | Inner-Height Dimension | Real | - | - |
| 2 | BI1~BI4 | Inner-Breadth Dimension | Real | - | - |
| 3 | JI1 | The Joint responsible for HI2-1 and BI1-1 Dimensions | Select | true | - |
| 4 | JI2 | The Joint responsible for HI2-2 and BI1-2 Dimensions | Select | true | - |
| 5 | JI3 | The Joint responsible for HI3-1 and BI2-1 Dimensions | Select | true | - |
| 6 | JI4 | The Joint responsible for HI4-1 and BI3-1 Dimensions | Select | true | - |
| 7 | JI5 | The Joint responsible for HI4-2 and BI3-2 Dimensions | Select | true | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Inner Dimension of PSC Shape | Object | - |
PSC Shape 1,2 Cell |
5. Reference API Manual Link
