1. Description
This component generates Slab Dimension Data for Composite Shape in the Civil NX.
Slab Dimension includes only the Type for Steel Girder, and the detailed configuration items are as follows
a. Steel-Box [ Type 1, 2 ]
b. Steel-I [ Type 1, 2 ]
c. Steel -Tub [ Type 1, 2 ]
The Slab Dimension of Composite Shape funtion can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > [Composite] tab
2. Grasshopper Path
[Midas] > [Properties] > [ Slab Dimension of Composite Shape ]

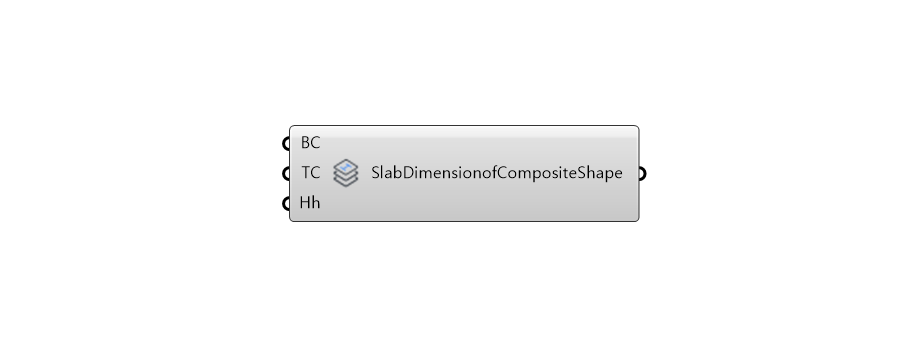

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 |
BC |
Slab Dimension | Real | - | - |
| 2 | Hh | Distance of Steel Girder | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Slab Dimension of Composite Shape Data | Object | - | Composite Steel Shape (Type 1,2) |
5. Reference API Manual Link
Section Properties - Composite - Steel
