1. Description
This component generates Stiffener of Composite Steel Shape Type 2 in the Civil NX.
Enter Composite section properties for line elements.
The Stiffener of Composite Steel Shape Type2 funtion can be found in the Civil NX main menu,select [Properties] tab > [Section Properties] group > [Section Properties] menu > Section > [Composite] tab > Stiffener
2. Grasshopper Path
[Midas] > [Properties] > [ Stiffener of Composite Steel Shape Type2 ]

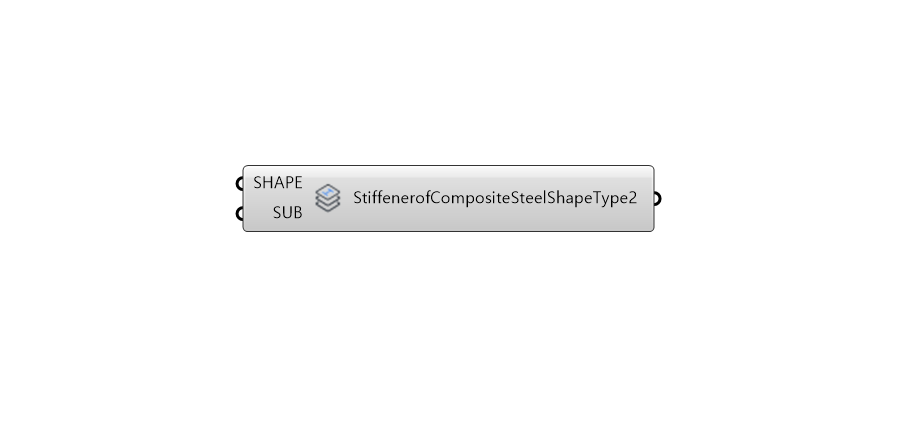

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | SHAPE | Define Stiffener Shape | Object | - | Stiffener Shape of Composite Steel Shape |
| 2 | SUB | Stiffener Positions | Object | - | Stiffener Position of Composite Steel Shape(Type2) |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Stiffener of Composite Shape(Type2) Data | Object | - | Composite Steel Shape (Type 2) |
5. Reference API Manual Link
Section Properties - Composite - Steel
