Overview
- Output the Slope stability analysis results that incorporate the limit equilibrium method indicators.
Methodology

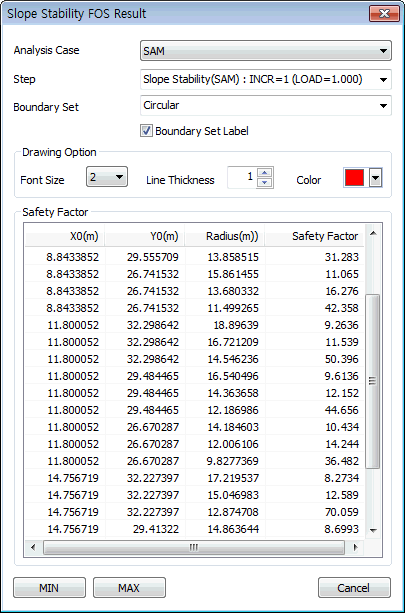

Output the Slope stability analysis results that incorporate the limit equilibrium method indicators. Specify the analyzed analysis case and analysis step to check the results on the virtual fracture plane and get the probable failure surface defined in the stage. Check [Boundary Set Label] and specify the Boundary set to identify the boundary conditions of the virtual fracture plane specified on the screen.

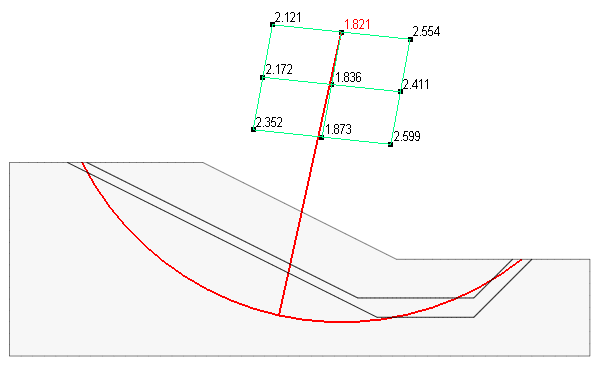

Use Min, Max to check the area where the maximum/minimum values occur, and use the Drawing option to modify the thickness, safety factor, size and color of the fracture plane at that point.
Fig. SAM result
