1. Description
This component operates the Moving Load Code function in Civil NX.
Prior to defining moving load, Code must be selected first from Moving Load Analysis Data > Moving Load Code.
The Moving Load Code funtion can be found in the Civil NX main menu,select [Load] tab > [Moving Load(Type)] group > [Moving Load Code]
2. Grasshopper Path
[Midas] > [Moving Load] > [Moving Load Code]

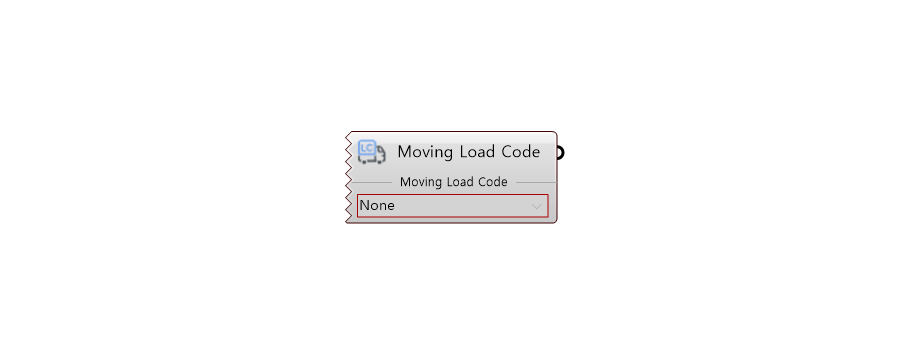

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Moving Load Code |
Moving Load Code · Available Code 1) KSCE_LSD15 2) Korea 3) AASHTO Standard 4) AASHTO LRFD 5) PENNDOT 6) EUROCODE |
Select | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVCD | Create Moving Load Code | Json | Put/Delete | - |
5. Reference API Manual Link
