1. Description
This component related the Traffic Line Lanes function in Civil NX.
Enter the traffic (line) lanes for moving load analysis.
The Lane Items of Traffic Line Lanes function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Traffic Line Lanes] Menu > [Traffic Line Lanes]
2. Grasshopper Path
[Midas] > [Moving Load] > [Lane Items of Traffic Line Lanes]

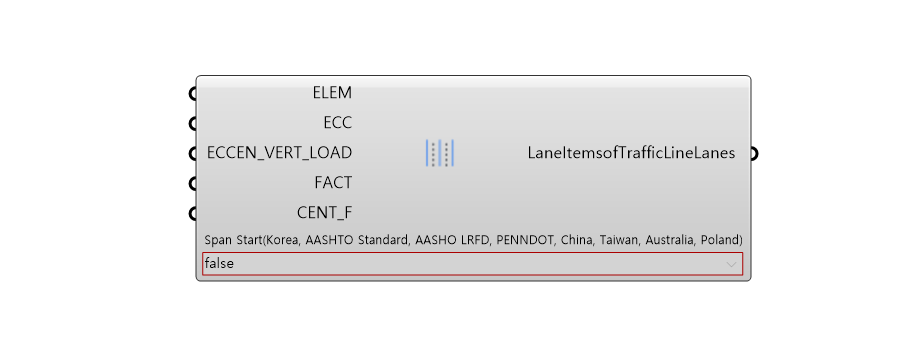

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | ELEM | Element No. | Integer | - | - |
| 2 | ECC | Eccentricity | Real | 0 | - |
| 3 | ECCEN_VERT _LOAD |
Eccentricity of Vertical Loads to Consider Cant (Eurocode Only) |
Real | 0 | - |
| 4 | FACT | Factor (Korea, AASHTO Standard, Taiwan code Only) |
Real | - | - |
| 5 | CENT_F | Centrifugal force factor (AASHTO LRFD Only) |
Real | - | - |
| 6 | Span Start | Span Start (Korea, AASHTO Standard, AASHTO LRFD, PENNDOT, China, Taiwan , Australia, Poland code Only) |
Select | false | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Lane Items of Traffic Line Lanes | Object | - | Traffic Line Lanes |
5. Reference API Manual Link
