Intro
Create a new Tapered Section by swapping the I and J ends of the existing tapered Section.
-
Create a tapered mirror section to have the same local axis.
Version
- v1.0.0 : Release
Applicable Standards
- General Use
Benefits of this plugin
[Symmetrical Arrangement of Tapered Sections]

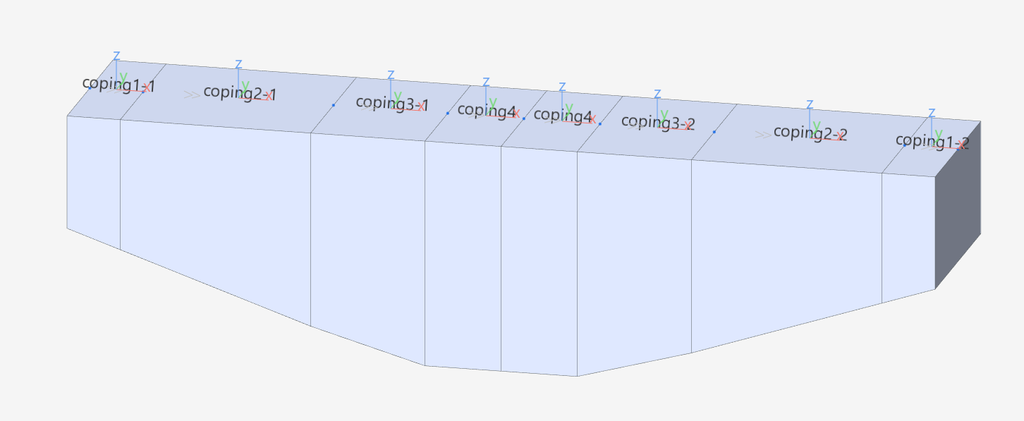

To match the local axis of the coping as above, swap the sections of I and J to create a tapered section. (coping 1-1 / coping 1-2: tapered section with sections I and J swapped)
This plugin can quickly generate sections by creating a tapered section on one side of a symmetric shape, then swapping the I and J ends to form a new tapered section.

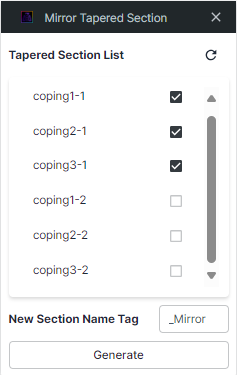

How to use this plugin?
- Tapered Section List
Gets the currently entered Tapered Sections, which can be updated via the Referesh button.
Select the section you want to mirror. - New Section Name Tag
Enter a tag to follow the name of the newly created section.
For example, if you selected section A, a new Tapered section will be created with the name A_Mirror. - Generate
Create a new Tapered section.
Note
It is applicable to apply the Mirror function to tapered sections. Tapered Value, User, and DB sections are all possible.
Conclusion
For tapered sections with symmetrical geometry you can easily create sections with the Mirror Section plug in.
