1. Description
This component operates the Traffic Surface Lanes function in Civil NX.
Enter the traffic surface lanes for moving load analysis.
The Traffic Surface Lanes function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Traffic Surface Lanes] Menu > [Traffic Surface Lanes]
2. Grasshopper Path
[Midas] > [Moving Load] > [Traffic Surface Lanes]

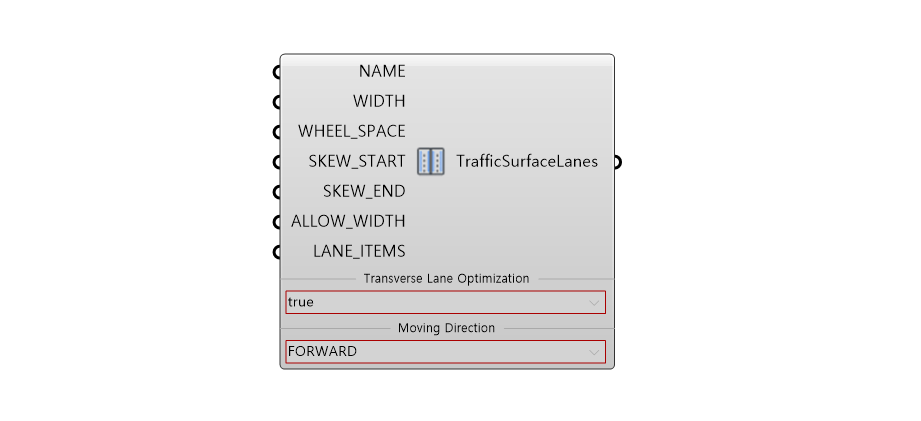

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | NAME | Name of Line Lane | String | - | - |
| 2 | WIDTH | Lane Width | Real | - | - |
| 3 | WHEEL_SPACE | Wheel Spacing | Real | - | - |
| 4 | SKEW_START | Skew Start | Real | 0 | - |
| 5 | SKEW_END | Skew End | Real | 0 | - |
| 6 | ALLOW _WIDTH * |
Allow Width for Optimization | Real | 0 | - |
| 7 | LANE_ITEMS | Define Lane Items | Object | - | Lane Items of Traffic Surface Lanes |
| 8 | Transverse Lane Optimization | Transverse Lane Optimization | Select | false | - |
| 9 | Moving Direction | Moving Direstion | Select | FORWARD | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SLAN | Create Traffic Surface Lanes | Json | PUT/DELETE | - |
Activation Condition
* Only for if Transverse Lane Optimization is True
5. Reference API Manual Link
