Summary
- The Graphical User Interface (GUI) is a crucial element that helps users interact with the product intuitively and efficiently.
Instead of text-based command inputs, the GUI uses visual elements (icons, buttons, menus, etc.) to enable users to easily access and utilize the product's various features. - This manual describes the components of the CIM's GUI, how they function, and the key features designed to optimize the user experience.
MIDAS CIM, GUI

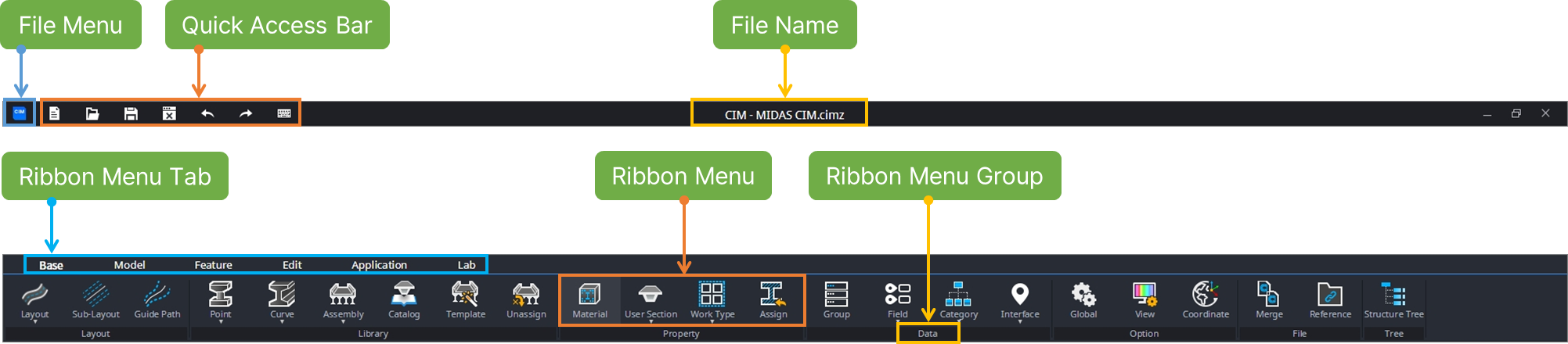

File Menu
The File Menu is a menu that allows you to perform various file-related tasks.
It includes functions such as creating a new file, opening a file, saving, and saving as a different name.
Quick Access Bar
The Quick Access Bar is a toolbar that helps you quickly access frequently used commands or tools.
File Name
The File Name indicates the name of the file currently being worked on.
Ribbon Menu Tab
The Ribbon Menu Tab is a tab in the ribbon menu that groups various functions.
Each tab contains commands and tools related to a specific task group (such as Base, Model, Feature, Edit, Application).
Ribbon Menu
The Ribbon Menu is a menu system composed of multiple tabs, where each tab groups related commands and tools.
Ribbon Menu Group
The Ribbon Menu Group is a section within a ribbon menu tab that groups related commands and tools.

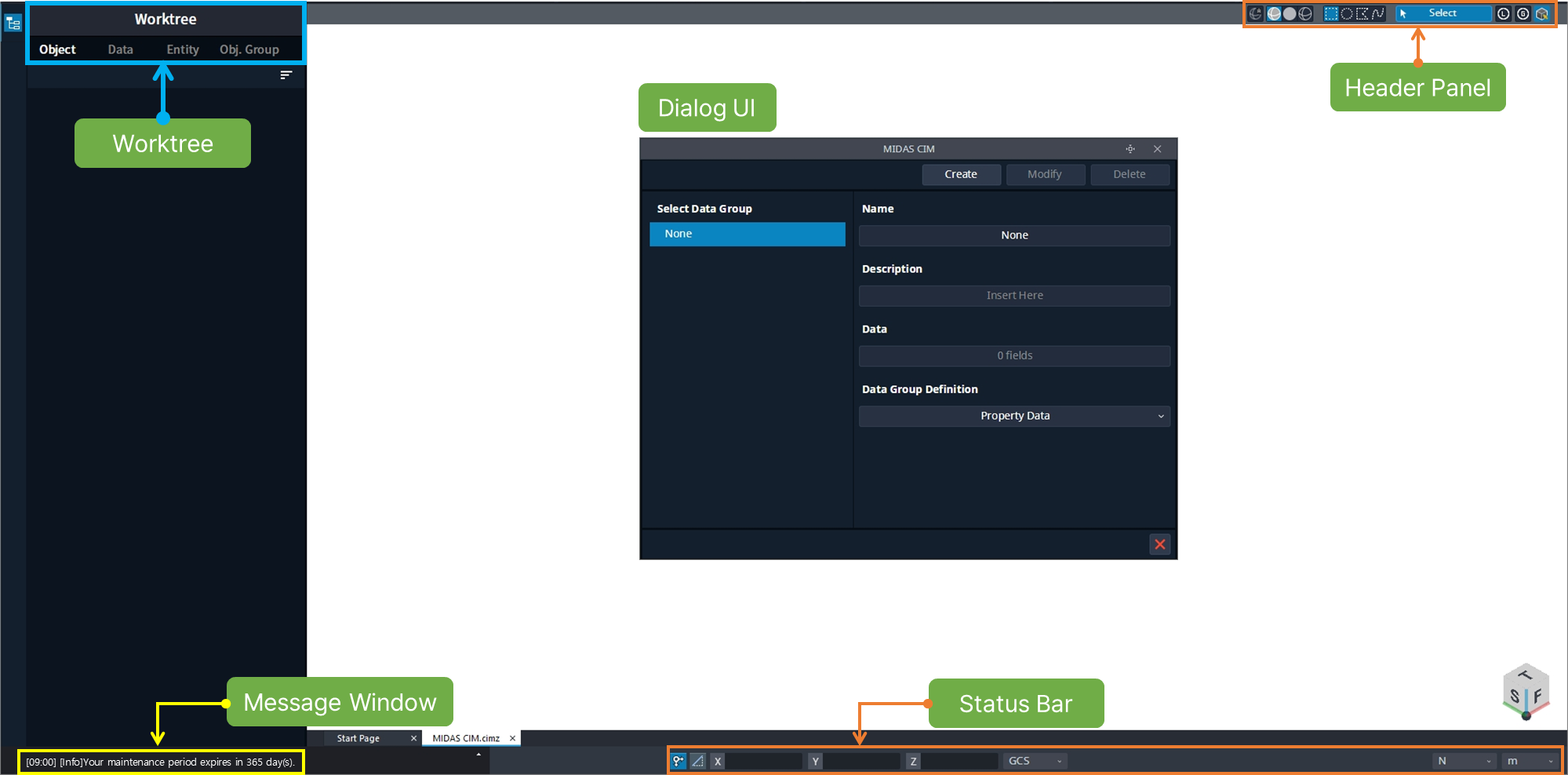

Worktree
The Worktree is a feature that allows you to view and edit the information of a CIM project in a hierarchical structure.
Header Panel
The Header Panel is a panel where the status information of the view screen and functions that can be used during tasks are placed.
Message Window
The Message Window displays messages or notifications during modeling tasks.
Status Bar
The Status Bar is located at the bottom of the CIM window and provides information on the coordinate system status and units.
Main Panel
The Main Panel is the central workspace for CIM modeling, where additional information for various functions can be entered and displayed.

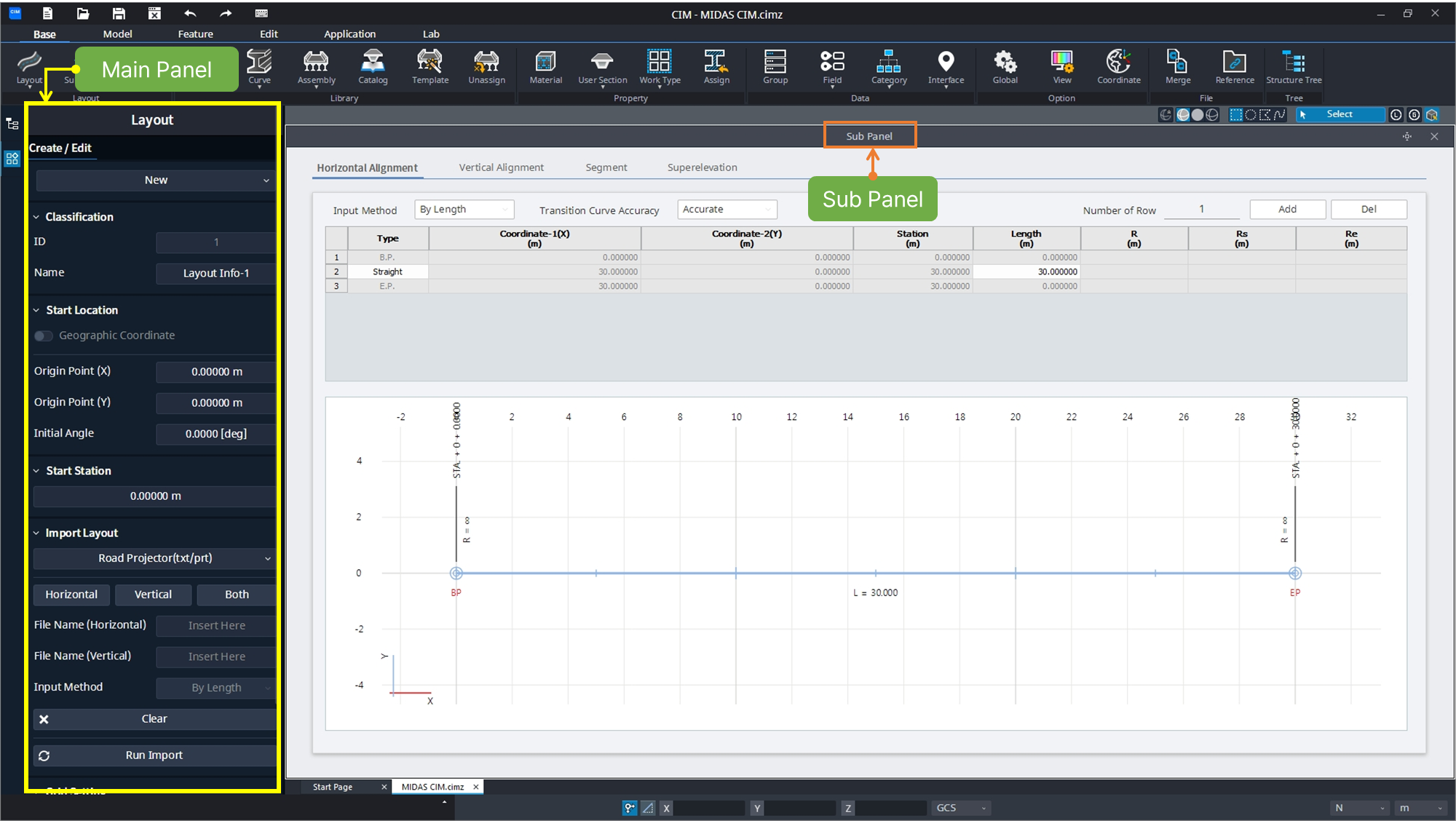

Sub Panel
The Sub Panel is an additional panel that complements the Main Panel, providing auxiliary tools, detailed settings, and extra information.
Examples include configuration information for layouts and tendon coordinate information.

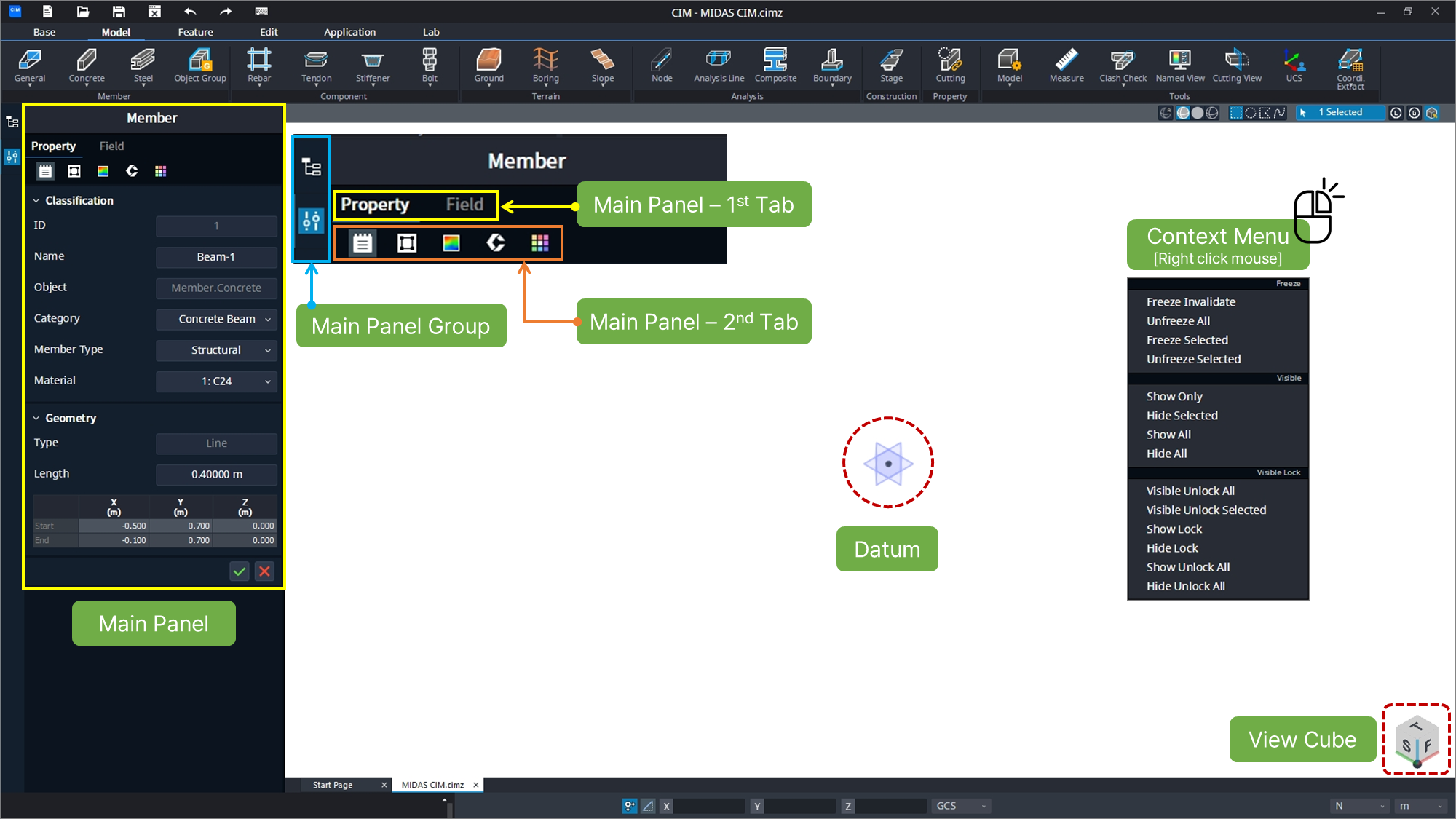

Main Panel Group
The Main Panel Group is a section that groups multiple Main Panels, allowing users to switch between different work areas or use multiple work areas simultaneously. The shortcut Alt + Q can be used to switch between section groups.
Main Panel 1st Tab
The Main Panel 1st Tab is the first tab within the Main Panel Group, providing an independent workspace focused on specific tasks or functions.
It mainly consists of the Property and Field information tabs when an object is selected.
Main Panel 2nd Tab
The Main Panel 2nd Tab is the second tab within the Main Panel Group, offering another independent workspace for different tasks or functions.
It primarily includes tabs for detailed properties of sectional objects, structure information, and graphic texture information.
Datum
DDatum represents a reference point in the CIM model space.
View Cube
The View Cube visually displays the orientation of the current 3D view in the CIM 3D model space.
Context Menu
The Context Menu appears when you right-click within the workspace window.
It provides quick access to functions related to Show/Hide when an object is selected.
