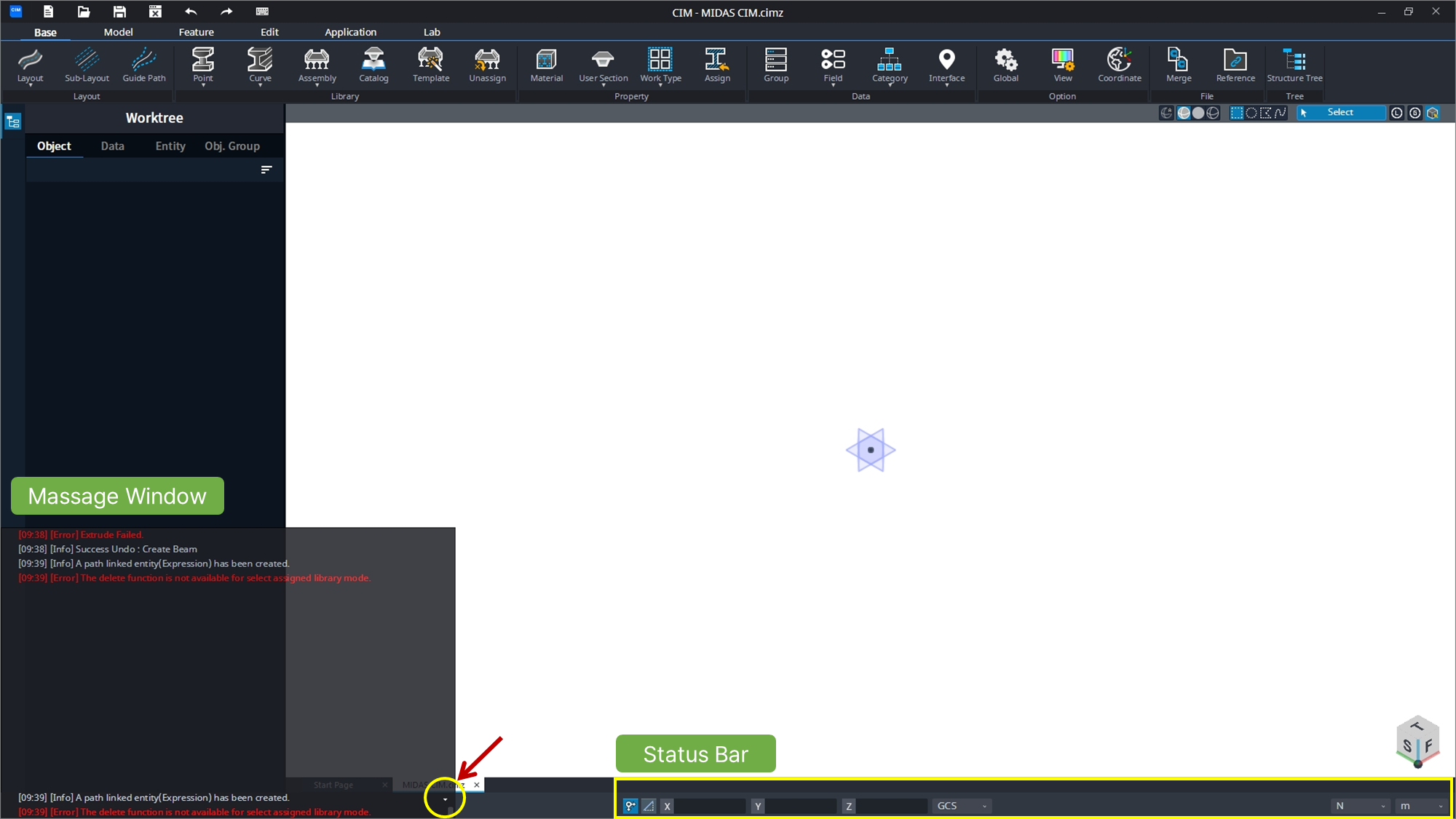

Message Window : Displays status messages such as ‘Undo/Redo’.
Absolute Coordinate/Relative Coordinate : Convert between absolute and relative coordinates.
Distance XYZ, Distance Angele
: Select a coordinate system between Cartesian (X, Y) and Polar (r, ϴ) coordinate systems to measure distance on a plane.
Displays the X, Y, Z coordinates of the current cursor location.
Coordinate System : Select between Global Coordinate System (GCS) and User Coordinate System (UCS).
Unit System : Select the unit system to represent the force or distance.
