MIDAS CIM Hotkey List
| Shortcut Key | Mode | Result |
|---|---|---|
| F1 | All | Open CIM Learning Center homepage |
| Alt + F1 | All | Open Hotkey Manual |
| F2 | All | Show Only the object selected in Neutral's Select Phase. |
| Ctrl + F2 | All | Hide Only the object selected in Neutral's Select Phase. |
| F3 | All | Freeze the object selected in Neutral's Select Phase. |
| Ctrl + F3 | All | Unfreeze the object selected in Neutral's Select Phase. |
| F5 | All | Clear the message window at the bottom left of the screen |
| Ctrl + F | All | Zoom fitting is performed based on the current camera viewpoint. |
| Alt+ A | All | Show All all objects in the current mode. |
| Ctrl + 1 | Base, PLB, CLB, AUB, User Section, Rebar, Stiffner | Execute the Import DWG/DXF function. |
| Ctrl + 2 | Base, PLB, CLB, AUB, User Section, Rebar, Stiffner | Execute the Measure function. |
| Ctrl + 3 | Base, PLB, CLB, AUB, User Section, Rebar, Stiffner | Execute the Global Option function. |
| Ctrl + 4 | Base, PLB, CLB, AUB, User Section, Rebar, Stiffner | Execute the View Option function. |
| Ctrl + Z | All | Undo |
| Ctrl + Y | All | Redo |
| Ctrl + S | Base | Save |
| Ctrl + Shift + S | Base | Save As |
| Alt + Z | All |
Main Panel OK |
| Alt + X | All |
Main Panel Apply |
| Alt + ` | All |
Main Panel Cancel |
| Alt + D | Base, PLB, CLB, AUB, Analysis, Construction | Switches the Datum On/Off status of View Option. |
| Alt + P | Base, PLB, CLB, AUB, Analysis, Construction | Switches the Perspective On/Off status of View Option. |
| Ctrl + D | Base, PLB, CLB, AUB, Analysis, Construction |
Switches the Display Mode status of View Option. |

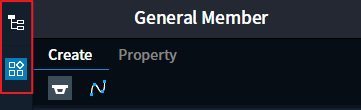

| Alt + Q | All |
Switch to the left tap of the Main Panel |

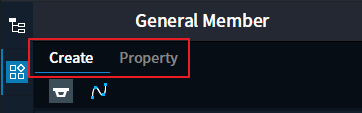

| Alt + Shift + Q | All |
Switch to the Tap at the top of the Main Panel |

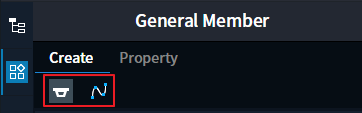

| Alt + Shift + W | All |
Switch to the 2nd Tap at the top of the Main Panel. |

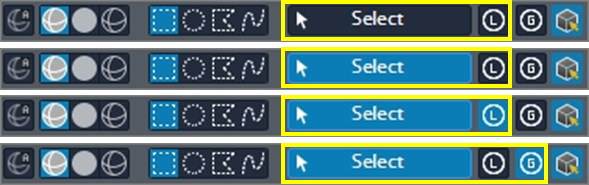

| Ctrl + Space | All |
Switch between ‘Inactivate Select’ > ‘Activate Select’ > ‘Activate Assigned Library Select’ > ‘Activate Object Group Select’ options |
| Ctrl + Shift + A | All |
Auto Edge option On/Off |
| Alt + Space bar | All |
Freeze object (when using Feature or Edit function) reference option On/Off |
| Alt + 1 | All | Switch to the currently active first tab on the left side of the Main Panel |
| Alt + 2 | All | Switch to the currently active second tab on the left side of the Main Panel |
| Alt + 3 | All | Switch to the currently active third tab on the left side of the Main Panel |
| Alt + 4 | All | Switch to the currently active fourth tab on the left side of the Main Panel |
| Alt + 8 | Base 제외 |
Mode OK |
| Alt + 9 | Base 제외 |
Mode Apply |
| Alt + 0 | Base 제외 |
Mode Cancel |
| Alt + F4 | All | Program exit |
| Mouse wheel button click | All |
When you click the mouse wheel button, the pivot position is set at that location. |
| Double click the mouse wheel button | All | When there is a selected object, Zoom fit Selected When there are no selected objects, zoom fit the entire model |
| Hold down Ctrl and drag the mouse wheel button | View | When you hold down the Ctrl button and drag the mouse wheel button, the view point rotates around the previous pivot position. |
| Shift | View | If you move the mouse while holding down the Shift button while drawing, the mouse will move with the snap fixed. |
| F / S /T | View | Switches the plane to Front (F, XZ plane), Side (S, YZ plane), and Top (T, XY plane) based on the snap captured on the screen. |
| Ctrl + Click | Works tree | Select additionally (Release Select) |
| Shift + Click | Works tree | Selects all Lists between the start point and the end point. |

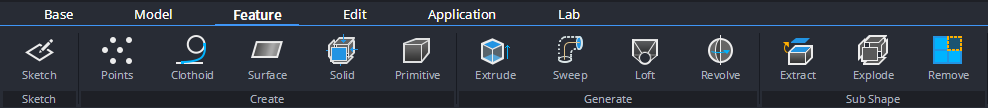

Feature Function Hotkey
| Shortcut Key | Result |
|---|---|
| Ctrl + Shift + C | Sketch |
| Ctrl + Shift + P | Points |
| Ctrl + Shift + B | Points(by Layout) |
| Ctrl + Shift + T | Clothoid |
| Ctrl + Shift + F | Surface(Plane) |
| Ctrl + Shift + U | Surface(Curved) |
| Ctrl + Shift + O | Solid |
| Ctrl + Shift + I | Primitive |
| Ctrl + Shift + E | Extrude |
| Ctrl + Shift + W | Sweep |
| Ctrl + Shift + L | Loft(Face) |
| Ctrl + Shift + V | |
| Ctrl + Shift + X | |
| Ctrl + Shift + D | |
| Ctrl + Shift + R |

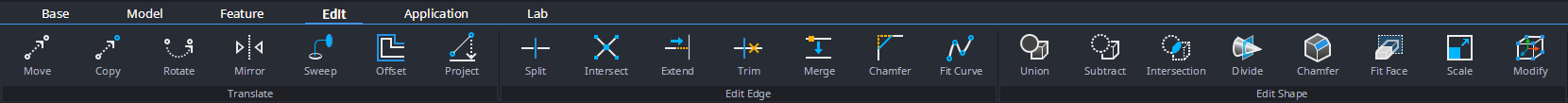

Edit Function Hotkey
| Shortcut Key | Result |
|---|---|
| Alt + M | Move |
| Alt + C | Copy |
| Alt + R | Rotate |
| Alt + I | Mirror |
| Alt + W | Sweep |
| Alt + O | Offset |
| Alt + J | Project |
| Alt + L | Split |
| Alt + N | Intersect |
| Alt + E | Extend |
| Alt + T | Trim |
| Alt + G | Merge |
| Alt + H | Chamfer Edge |
| Alt + F | Fit Curve |
| Alt + Shift + U | Union(Solid) |
| Alt + Shift + N | Union(Surface) |
| Alt + Shift + S | Subtract(Solid) |
| Alt + Shift + I | Intersection(Solid) |
| Alt + Shift + D | Divide(Solid) |
| Alt + Shift + C | Chamfer Shape |
| Alt + Shift + F | Fit Face |
| Alt + Shift + A | Scale |
| Alt + Shift + V | Move Vertex |
| Alt + Shift + E | Move Edge |
