1. Description
This component operates the Vehicles KSCE-LSD15 function in Civil NX.
Enter vehicle loads specified in KSCE-LSD15.
The Vehicles KSCE-LSD15 function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Vehicles] Menu
2. Grasshopper Path
[Midas] > [Moving Load] > [Vehicles KSCE-LSD15]

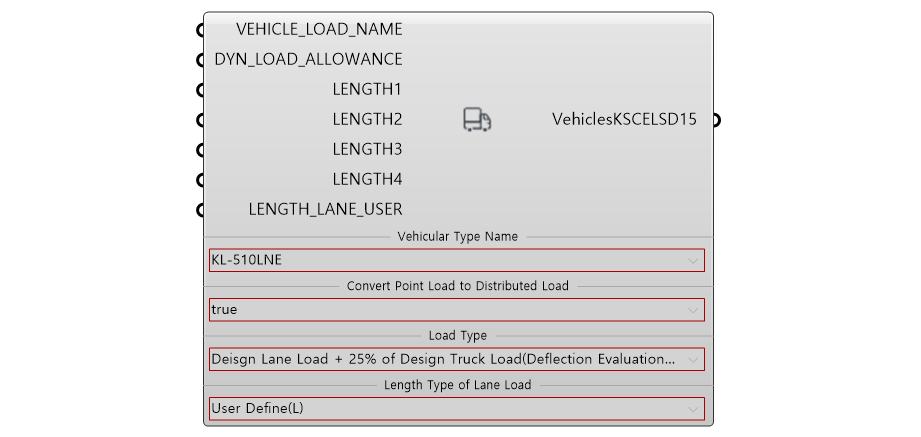

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | DYN_LOAD _ALLOWANCE |
Dynamic Load Allowance | Real | 0 | - |
| 3 | LENGTH 1~4 * |
Length of Convert Point Load to Distributed Load | Real | 0 | - |
| 4 | LENGTH_LANE _USER *** |
Length of lane Load 1st Model (User Define) |
Real | 0 | - |
| 5 |
Vehicular Type |
Vehicular Type Name | Select | KL-510TRK | - |
| 6 | Convert Point Load to Distributed Load |
Convert Point Load to Distributed Load | Select | false | - |
| 7 | Load Type ** | Load Type | Select |
Design Lane Load+75% |
- |
| 8 | Length Type of Lane Load ** | Length Type of Lane Load | Select | User Define(L) | - |
Activation Condition
* Only for if Convert Point Load to Distributed Load is true
** Only for if Vehicular Type Name is KL-510LNE
*** Only for if Length Type of Lane Load is User Define(L)
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicle KSCE-LSD15 | Json | PUT/DELETE | - |
5. Reference API Manual Link
