1. Description

This component operates the Sub Load Data of Moving Load Cases function in Civil NX.
Use the entered vehicle load classes and the traffic lanes to create moving load cases. Define type of vehicle, number of lanes, and the method to be used in moving load analysis.

The Sub Load Data of Moving Load Cases function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Moving Load Cases] Menu

2. Grasshopper Path

[Midas] > [Moving Load] > [Sub Load Data of Moving Load Cases]

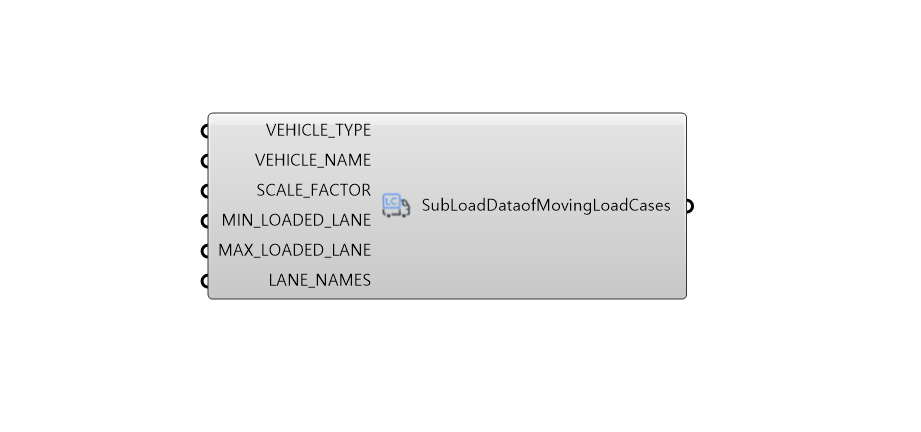

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_TYPE	Type of Vehicle Class · Vehicle Load : "VL" · Vehicle Class : "VC"	String	-	-
2	VEHICLE_NAME	Name of Vehicle Class	String	-	-
3	SCALE_FACTOR	Scale Factor	Real	-	-
4	MIN_LOADED _LANE	Min. Number of Loaded Lane	Integer	-	-
5	MAX_LOADED _LANE	Max. Number of Loaded Lane	Integer	-	-
6	LANE_NAMES	Selected Lane	String	-	-

Output Data

Moving Load Cases KSCE-LSD15Moving Load Cases KoreaMoving Load Cases AASHTO LRFDMoving Load Cases AASHTO StandardMoving Load Cases PENNDOT

Index	Command	Description	Type	Method	Next Component
1	-	Create Sub Load Data of Moving Load Cases	Object	-	Moving Load Cases · KSCE-LSD15 · Korea · AASHTO LRFD · AASHTO Standard · PENNDOT

5. Reference API Manual Link

Moving Load Cases
