Consider Inner Hole Option – Using the By Draw method
When creating a 2D object using the By Draw method, the application method of creating a duplicate overlapping region is set.
When the option is turned on, the original region is deleted once duplicate regions are selected.
When the option is turned off, duplicate objects are created in that corresponding region.

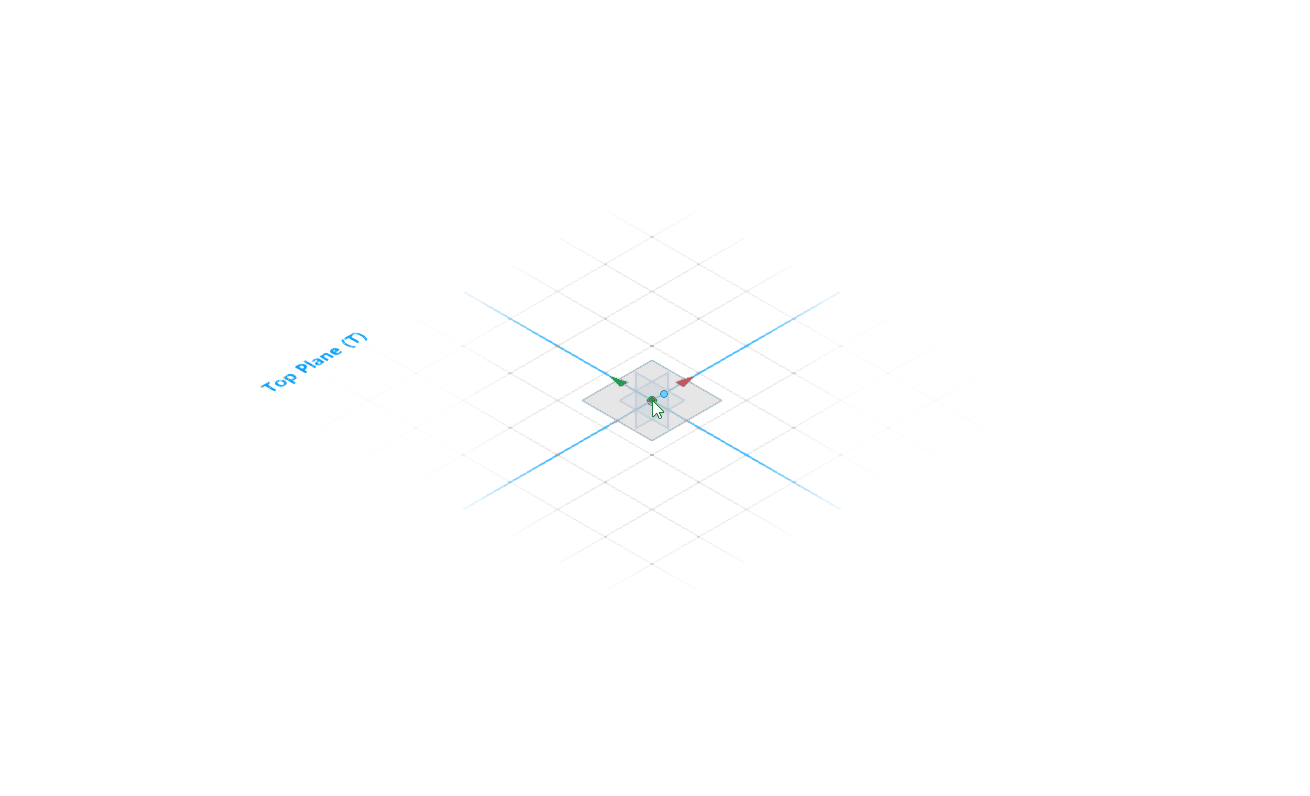

Fig. Consider Inner Hole On

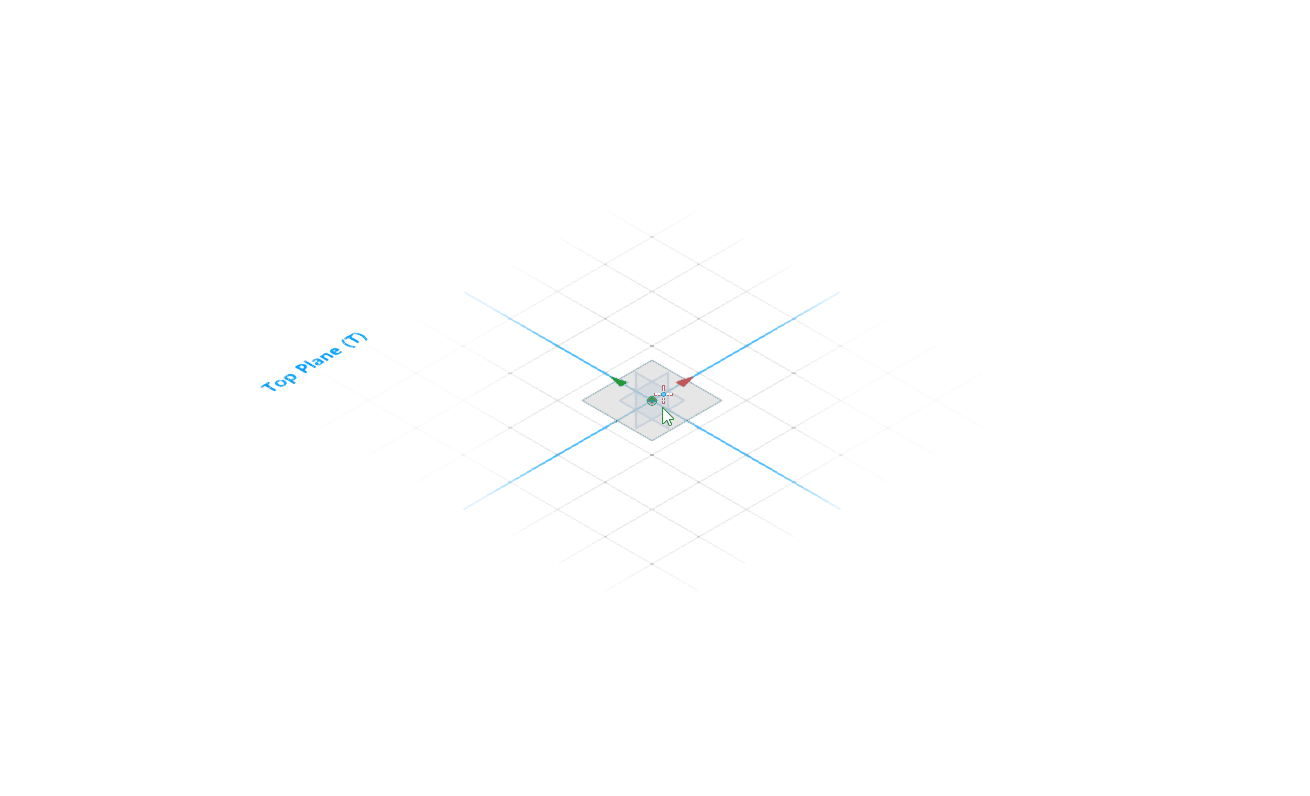

Fig. Consider Inner Hole Off
Consider Inner Hole Option – Using the By Select Method
When creating a 2D object using the By Select method, the application method of creating a duplicate overlapping region is set.
When the option is turned on, the original region is deleted once duplicate regions are selected.
When the option is turned off, duplicate objects are created in that corresponding region.

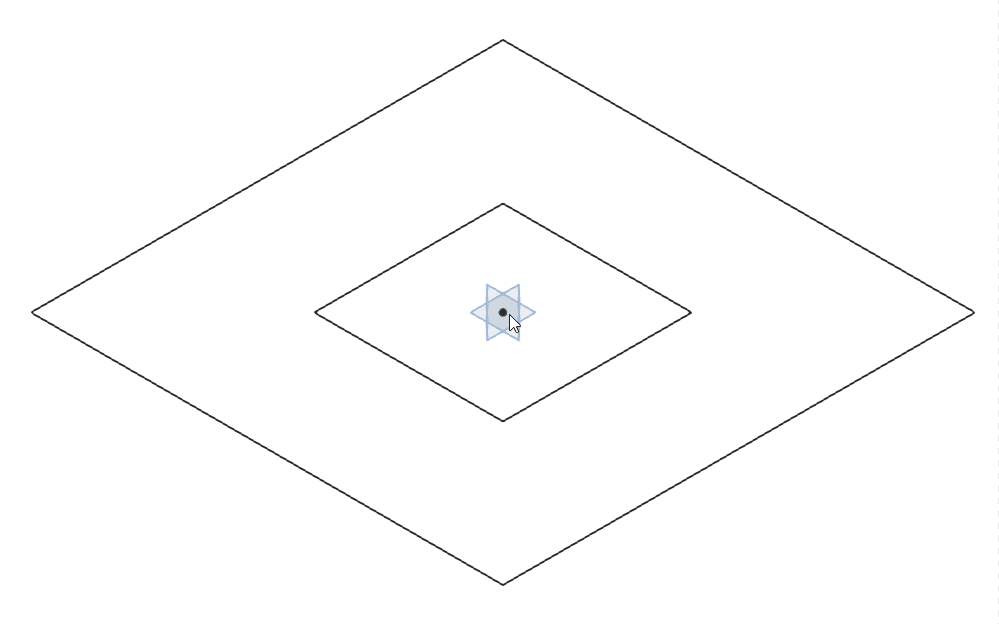

Fig. Consider Inner Hole On
Fig. Consider Inner Hole Off
