Summary
- Details of the object’s geometric properties.
Explanation

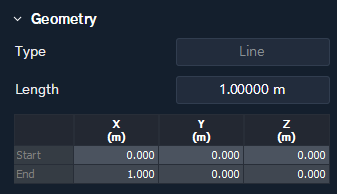

1D Geometry > Line
Length
Line Length
Table
Start : Start Point Coordinates
End : End Point Coordinates

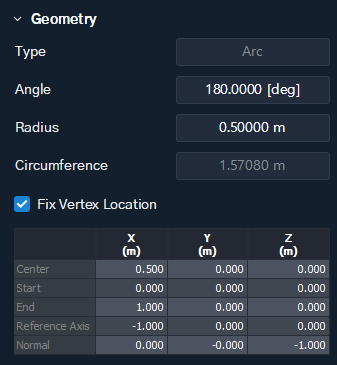

1D Geometry > Arc
Angle
Center Angle of Arc
Radius
Radius of Arc
Circumference
Circumference of Arc
Fix Vertex Location
Off
The start and end points are not fixed in the calculation based on the editing of geometric properties (angle, radius, etc.).
On
The start and end points are fixed in the calculation on the editing of geometric properties (angle, radius, etc.).
Table
Center : Center Point Coordinates
Start : Start Point Coordinates
End : End Point Coordinates
Reference Axis : Vector value in the direction of the starting point from the center point
Normal : Normal direction vector of the arc plane

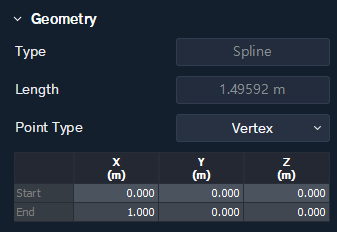

1D Geometry > Spline
Length
Length of Spline
Point Type
Vertex
Outputs the coordinates of the start and end points to a table.

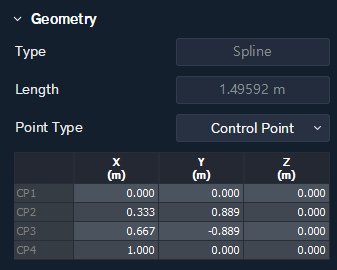

Control Point
Outputs the coordinates of the control points to a table.
Table
Outputs the start and end points, or the coordinates of the control point, depending on the Point Type settings.

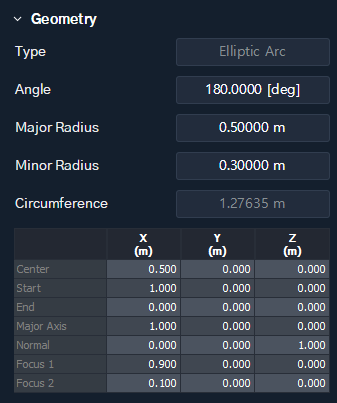

1D Geometry > Elliptic Arc
Angle
Center Angle of Elliptic Arc
Major Radius
Major Radius of Elliptic Arc
Minor Radius
Minor Radius of Elliptic Arc
Circumference
Circumference of Elliptic Arc
Table
Center : Center Point Coordinates
Start : Start Point Coordinates
End : End Point Coordinates
Major Axis : Major Axis Vector
Normal : Normal Direction Vector
Focus 1 : Coordinates of the first fixed point
Focus 2 : Coordinates of the second fixed point

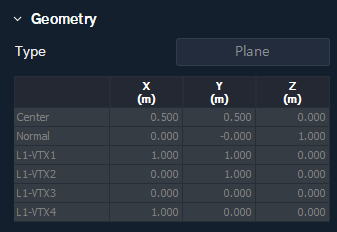

2D Geometry > Plane
Table
Center : Coordinates of the center point
Normal : Vector value in axial direction
L#-VTX# : Coordinates of the point Vertex that make up the sheet body

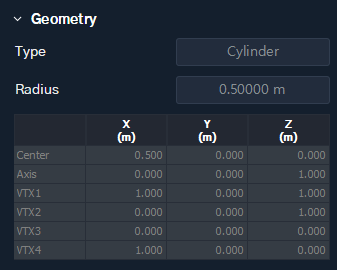

2D Geometry > Cylinder
Radius
Radius of the cylinder
Table
Center : Coordinates of the center point
Axis : Vector value in axial direction
VTX# : Coordinates of the vertices that define a sheet body

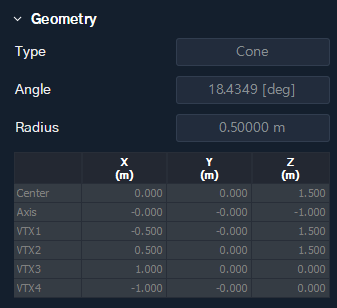

2D Geometry > Cone
Angle
The angle between the points, vertices, and center points at the bottom of the cone
Radius
Radius at the top of the cone
Table
Center : Center Point Coordinates at Top
Axis : Vector value in axial direction
VTX# : Coordinates of the vertices that define a sheet body

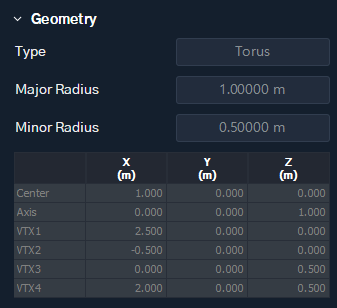

2D Geometry > Torus
Major Radius
Distance from center of Torus to center of Tube
Minor Radius
Radius of Tube
Table
Center : Coordinates of the center point
Axis : Vector values in the direction of rotational axis

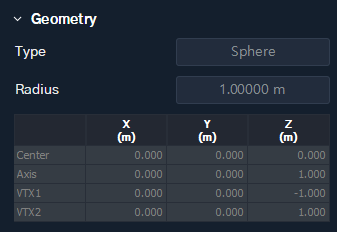

2D Geometry > Sphere
Radius
Radius of sphere
Table
Center : Coordinates of the center point
Axis : Vector values in the direction of rotational axis
VTX# : Coordinates of the vertices that define a sheet body
2D Geometry > B-Surface
Table
Outputs the coordinates of the Vertex that form the Sheet Body.
2D Geometry > Facet
3D Geometry
Face List
Outputs the list of faces that form the solid body.
Table
Outputs the geometry information of the selected faces in the Face List.
