Summary
- Explanation of object’s construction properties.
Execution
Selects the members on the screen.
Explanation
Structure
Sets the Object’s corresponding Structure Classification.

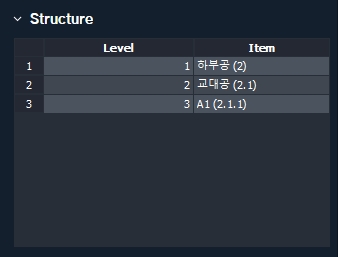

[Structure Table]
Sets the Object’s Classification.
- Level : : Indicates the level of each classification. Higher value indicates upper category hiearchy.
(Level 1 > Level 2 > Level 3 > …)
- Item : Sets the corresponding classification for each level.
Note
Under object properties, Structure classification must be entered until the lowest level.
Material Type & Field
Sets the appropriate construction type for the object’s material.
[Material Type]
Selects the material type for Construction Type. For each selected Material Type, its corresponding Sub-Material Type and Construction Type can be set.
- None : Does not set any Construction Type.
- Object Material : Sets the Construction Type for each corresponding Object Material.
- User Defined : Sets user custom Construction Type.
[Sub Material Type]
Sets the Sub Material Type for each Material Type. Once set, a Field Table is generated for each corresponding Material Type.
Note
A single object can have either a Material Type or a Sub Material Type.
[Field Table]
Sets the object’s Construction Type.
- Name : Sets the object’s Field Type.
- Item List : Sets the Field Item for the corresponding Field Type of the object.
Note
If the Field Type is set to Auto, the Field Item is automatically generated under Object Properties for each Material Type. If desired, the Field Item can be manually set by entering additional Field Items.
Reference Materials
Structure
Field
