Summary
- Edit the vertex matching state of start and end sections of a member.
How to Run
- Ribbon Menu > [Model] Tab > [Member] Group > General > Vertex Matching
[Curve Library Mode]
- Ribbon Menu > [Curve Library] Tab > [Expression Entity] Group > Path Linked > Vertex Matching
[Assembly Unit Mode]
- Ribbon Menu > [Assembly Unit] Tab > [Expression Entity] Group > Path Linked > Vertex Matching
Explanation

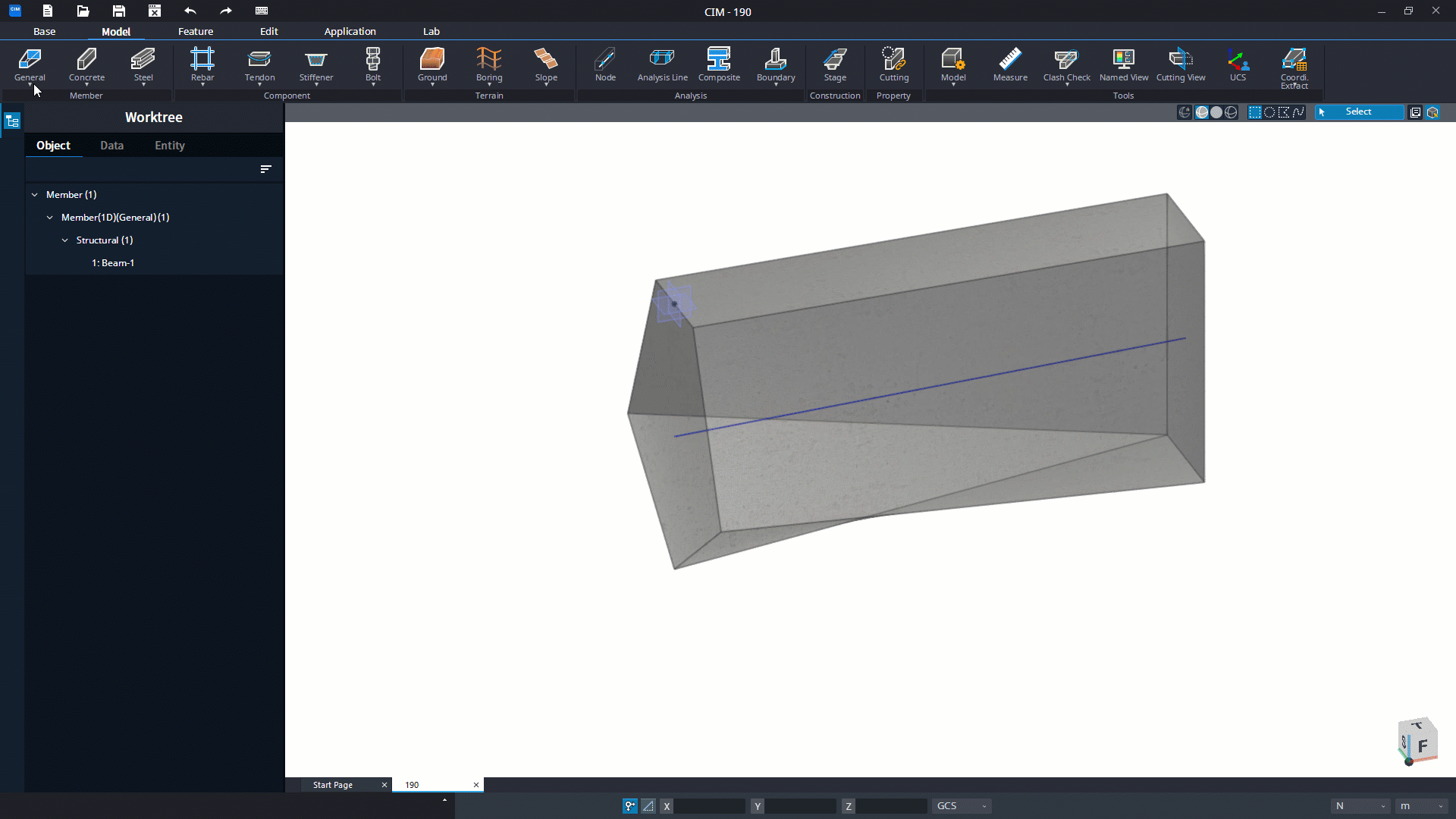

Edit Vertex Matching State
Edit the vertex matching state of a general member set in the tapered section.
[Select Member]
Select the tapered section member to perform vertex matching.
Note
Only General Members with different User Sections for the start and end cross sections can be selected as a target.
[Vertex Set]
Select the Vertex Set to edit.
Note
Select a Vertex Set in the table.
On the screen, that vertex set (the connections between vertices) is represented as selected.
[Rotate Vertex Matching]
- Target Section
Select the Target Section to determine the location in the Vertex Set where the rotational movement is needed.
- Move the Target Vertex via the Clockwise or Countclockwise buttons.
- Preview to confirm the change geometry, then complete the Vertex Matching operation.
