1. Description
This component operates the Vehicles AASHTO Standard function in Civil NX.
Enter vehicle loads specified in AASHTO Standard.
The Vehicles AASHTO Standard function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Vehicles] Menu
2. Grasshopper Path
[Midas] > [Moving Load] > [Vehicles AASHTO Standard]

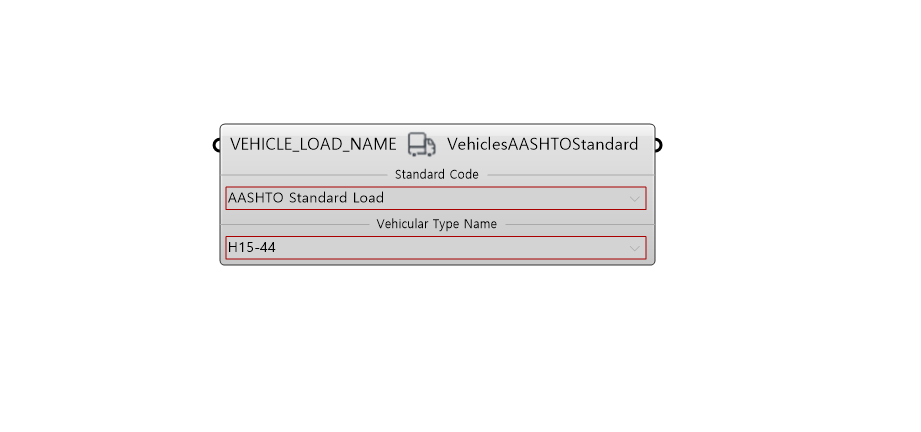

Standard Code Type 1 : AASHTO
(AASHTO Standard Load, AASHTO)
3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | Standard Code | Standard Code | Select | AASHTO Standard Load | - |
| 3 | Vehicular Type Name |
Vehicular Type Name | Select | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicle AASHTO_Standard (AASHTO Standard Code) |
Json | PUT/DELETE | - |
Standard Code Type 2 : Caltrans
(CALTRANS Standard Load_2017, CALTRANS Standard Load)
3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | Standard Code | Standard Code | Select | AASHTO Standard Load | - |
| 3 | Vehicular Type Name |
Vehicular Type Name | Select | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicle AASHTO_Standard (Caltrans Standard Code) |
Json | PUT/DELETE | - |

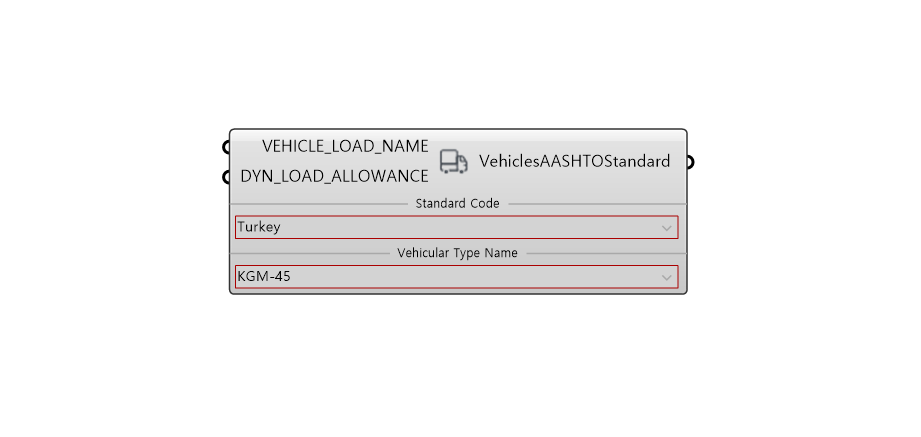

Standard Code Type 3 : Trukey
3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | DYN_LOAD _ALLOWANCE * |
Dynamic Load Allowance | Real | 0 | - |
| 3 | Standard Code | Standard Code | Select | AASHTO Standard Load | - |
| 4 | Vehicular Type Name |
Vehicular Type Name | Select | - | - |
Activation Condition
* Only for if Vehicular Type Name is KGM-45
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicle AASHTO_Standard (Turkey Standard Code) |
Json | PUT/DELETE | - |

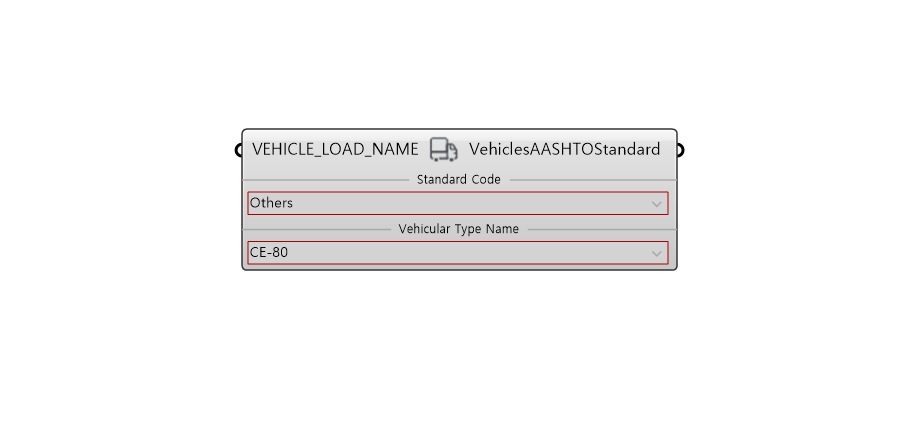

Standard Code Type 4 : OTHERS
3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | Standard Code | Standard Code | Select | AASHTO Standard Load | - |
| 3 | Vehicular Type Name |
Vehicular Type Name | Select | - | - |
Activation Condition
* Only for if Vehicular Type Name is KGM-45
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicle AASHTO_Standard (Others Standard Code) |
Json | PUT/DELETE | - |
5. Reference API Manual Link
