1. Description
This component operates the Optimize Item of Moving Load Cases function in Civil NX.
Use the entered vehicle load classes and the traffic lanes to create moving load cases. Define type of vehicle, number of lanes, and the method to be used in moving load analysis.
The Optimize Item of Moving Load Cases function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Moving Load Cases] Menu
2. Grasshopper Path
[Midas] > [Moving Load] > [Optimize Item of Moving Load Cases]

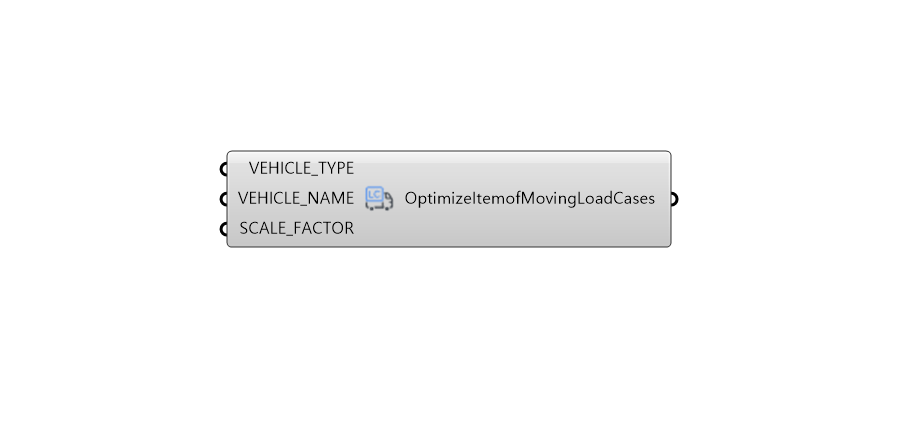

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_TYPE | Load Case Name | String | - | - |
| 2 | VEHICLE_NAME | Description | String | - | - |
| 3 | SCALE_FACTOR | Scale Factor | Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Moving Load Cases | Object | - | Moving Load Cases AASHTO Standard |
5. Reference API Manual Link
