Summary
- Creates a steel Brace member (1D).
How to Run

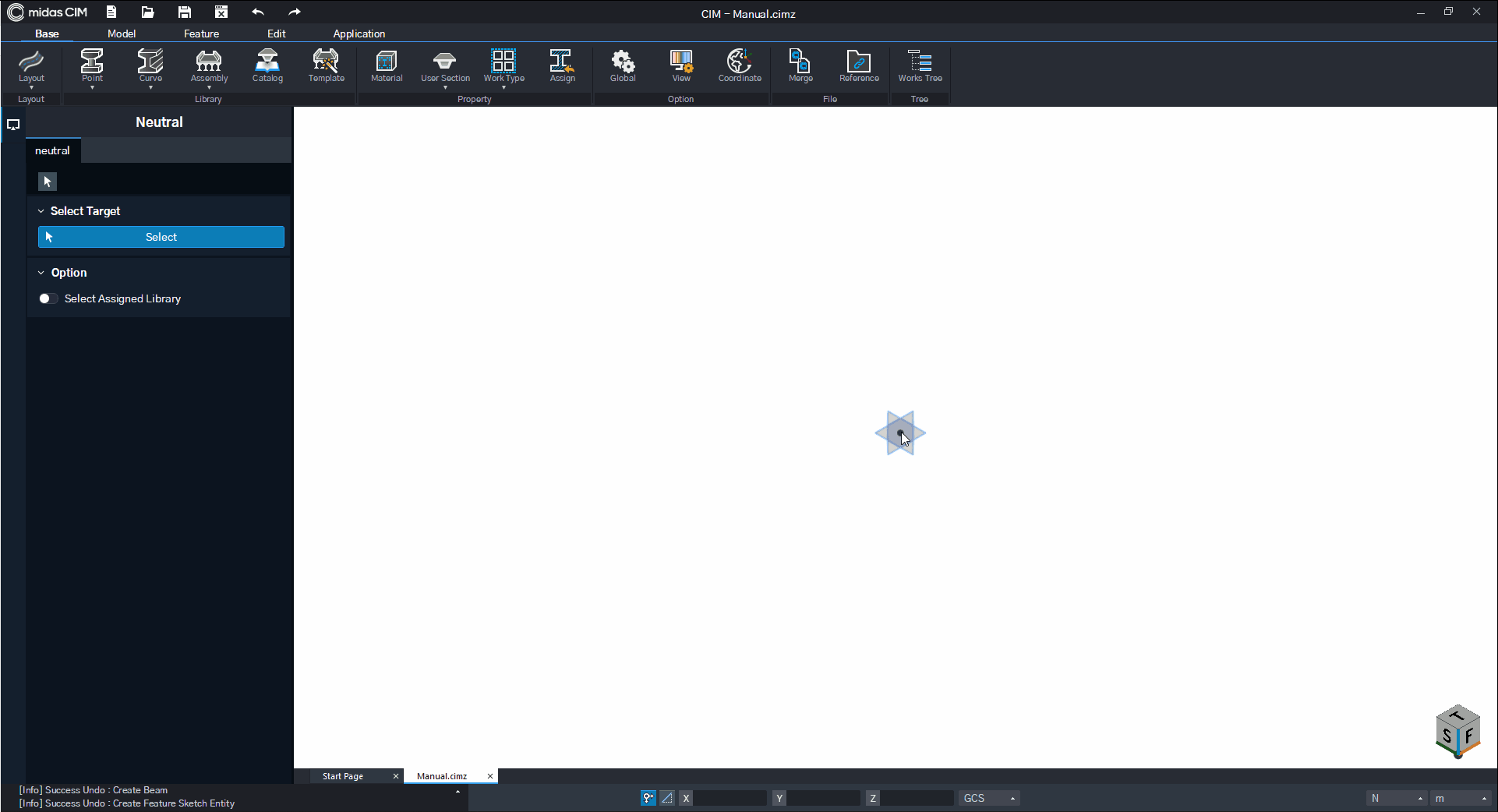

- Ribbon Menu > [Model] Tab > [Member] Group > Concrete > Beam
Explanation
By Draw Method
A method for creating a Concrete Beam by drawing lines.

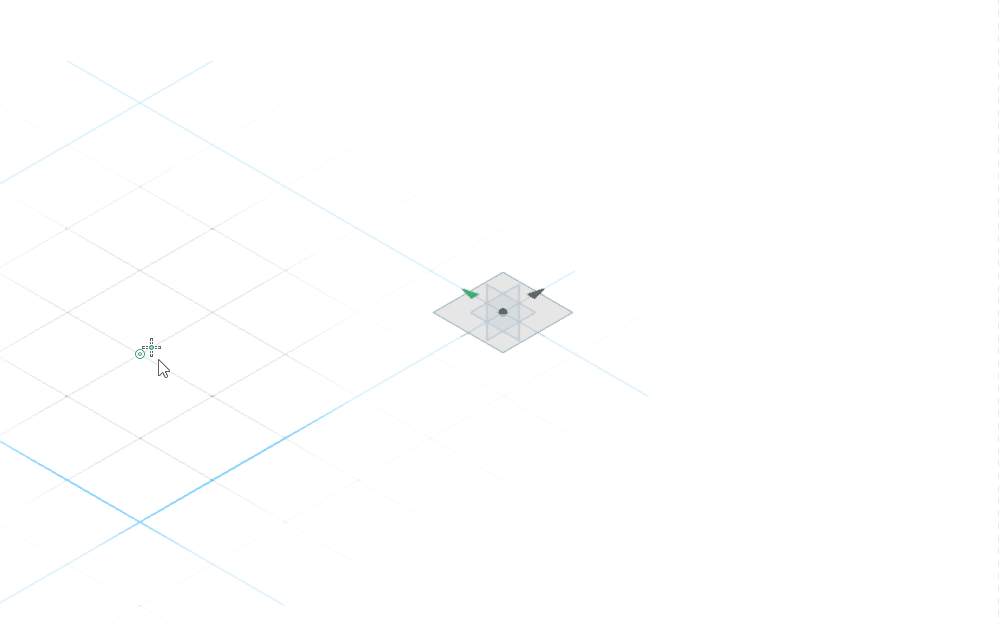

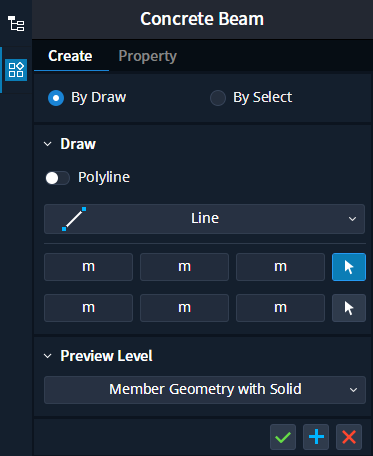

[Draw]

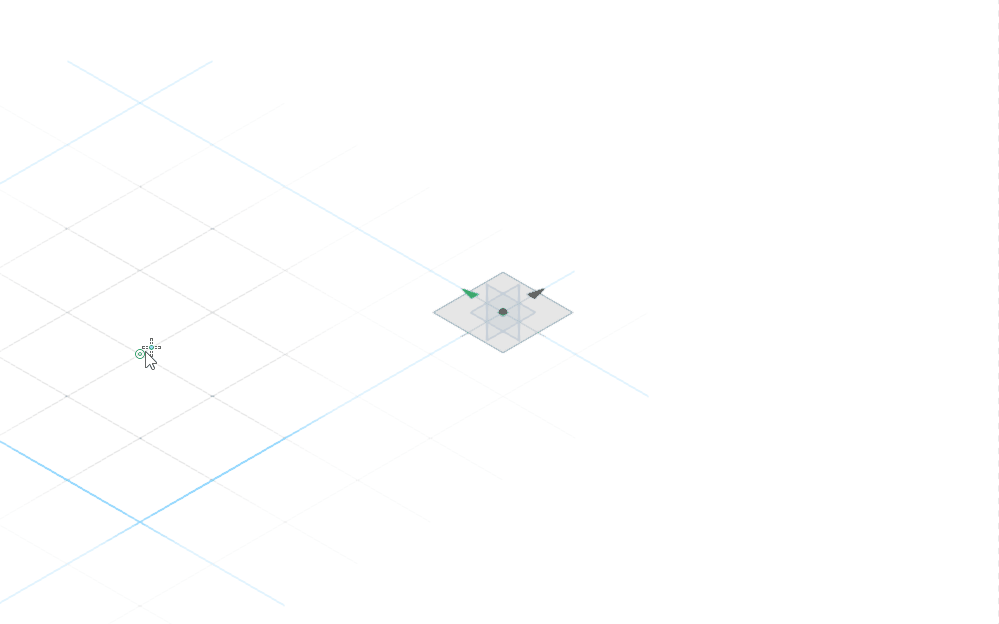

Construct a line to create a concrete beam along that line.
Detailed Explanation (Poly Beam)

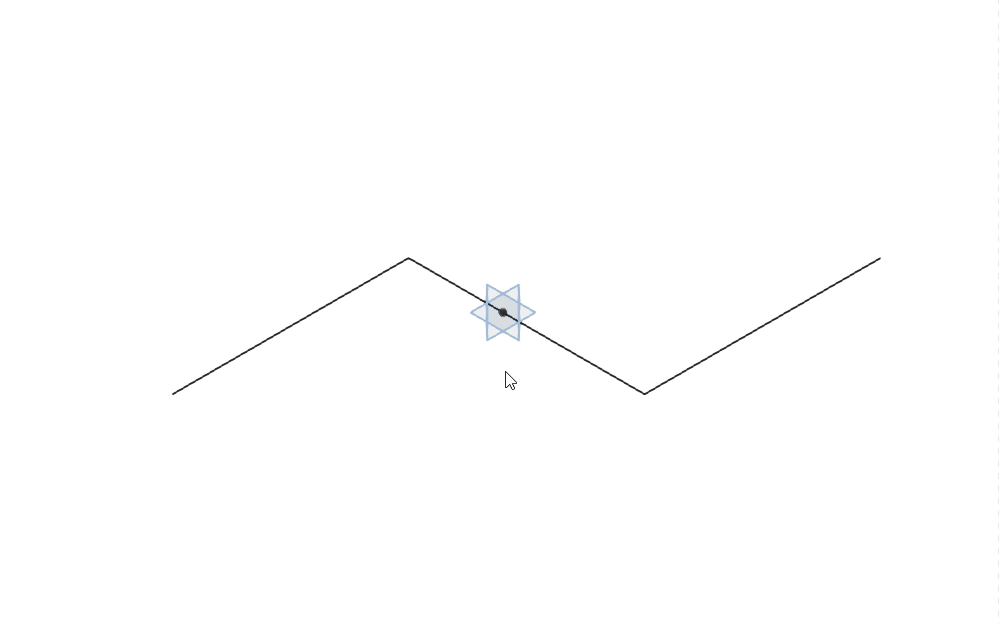

Sets the beam to have continuity across the object.
Poly Beam Off (Default)
Poly Beam On
[Preview Level]
Sets the style of the Preview during the construction process.
Note
Reference - Preview Level
By Select Method
A method for creating a Concrete Beam by selecting a previously created Edge.

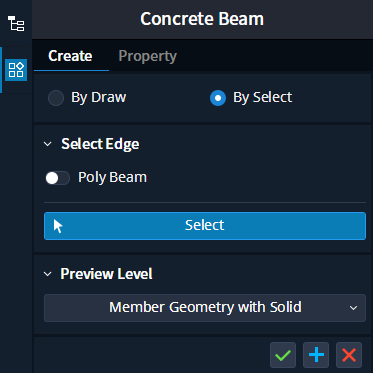

[Select Edge]

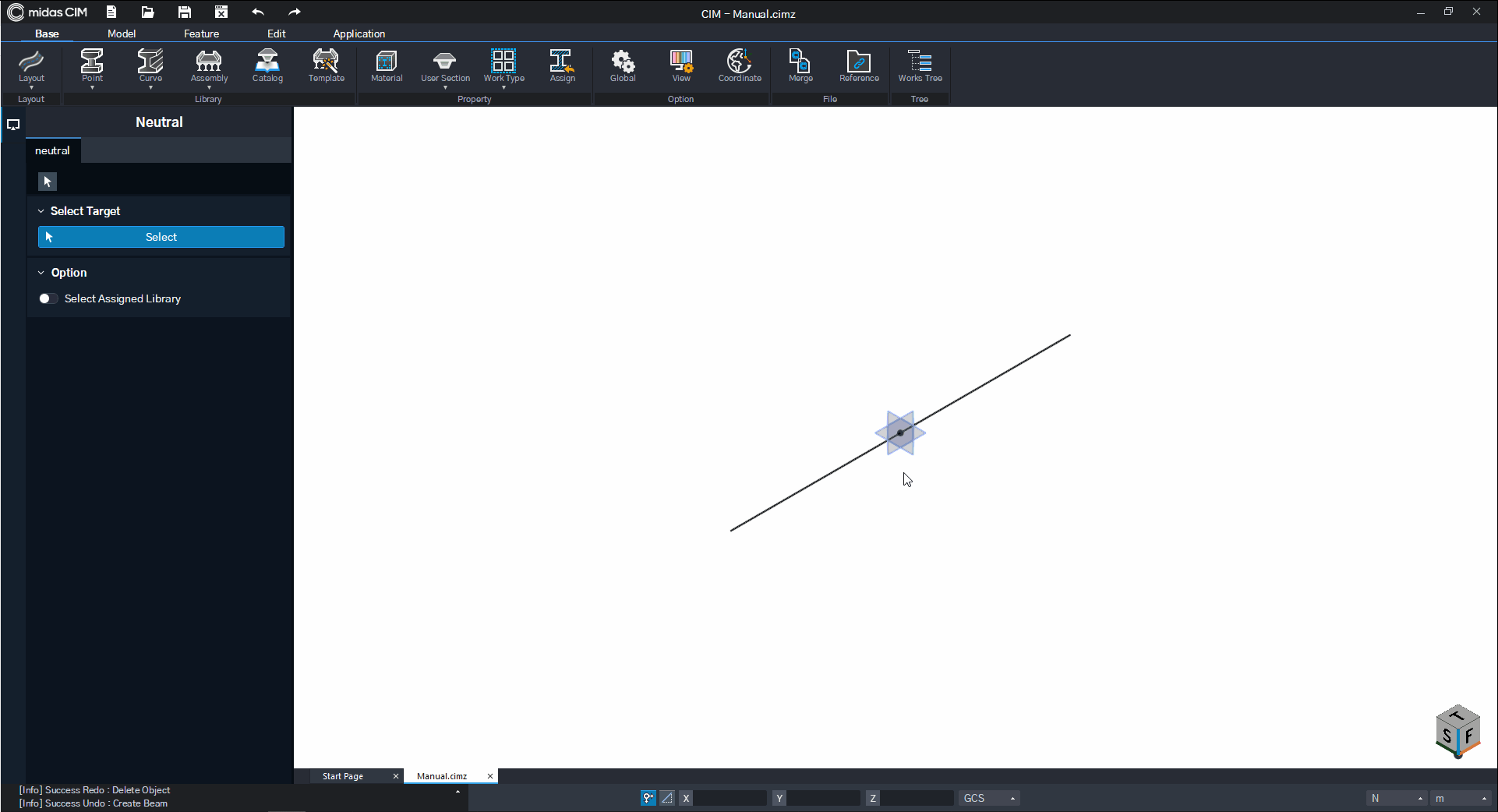

Select an Edge to create a steel beam that overlaps with that edge.
Detailed Explanation (Poly Beam)
Sets the beam to have continuity across the object.
Poly Beam Off (Default)
Poly Beam On
[Preview Level]
Sets the style of the Preview during the creation process.
Note
Reference - Preview Level
Reference Materials
1D Concrete Member Properties
