Summary
- Creates a steel Column member (1D).
How to Run
- Ribbon Menu > [Model] Tab > [Member] Group > Concrete > Column
Explanation

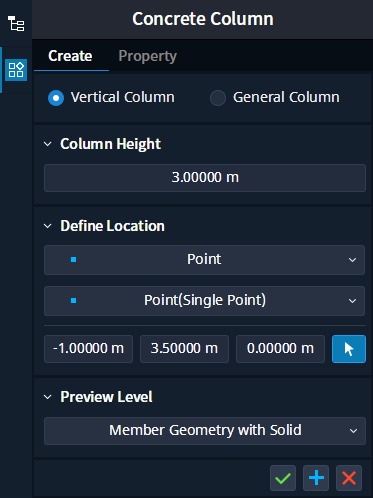

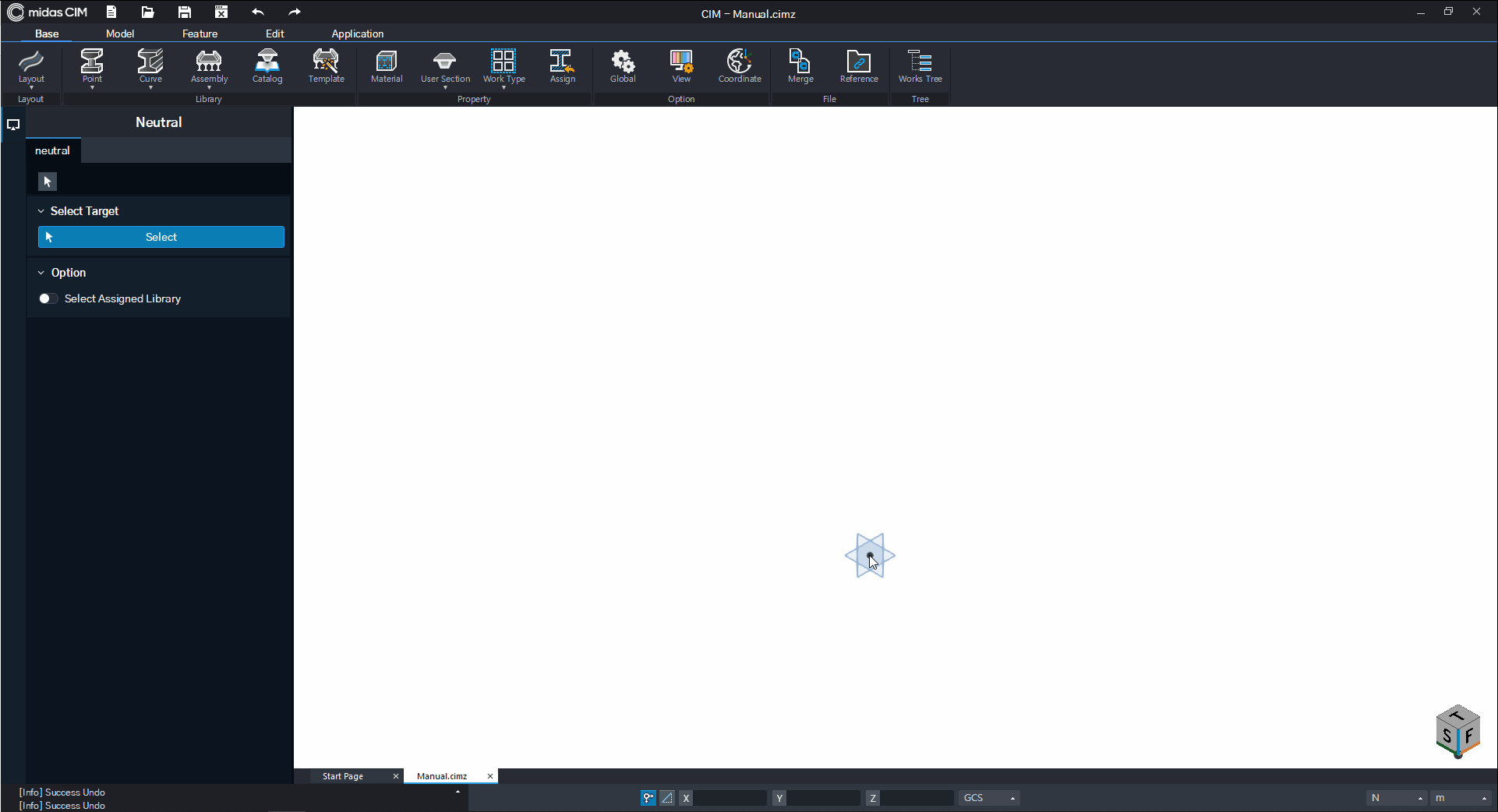

Create Vertical Column
A method to define points to create vertical concrete columns.
[Column Type]
Set the column type.
Vertical Column : Create a column standing in the Z direction.
General Column : Create a column standing in any direction.
[Column Height]
Enter the column height.
[Define Location]
Point(Single Point) : Select a method to create a concrete column. Select a point to create a vertical concrete column at that point.
Point(Center of Points) : Select a method to create a concrete column. Select multiple points to create vertical concrete columns at each point.
[Preview Level]
Sets the style of the Preview during the creation process.
Note
Reference - Preview Level

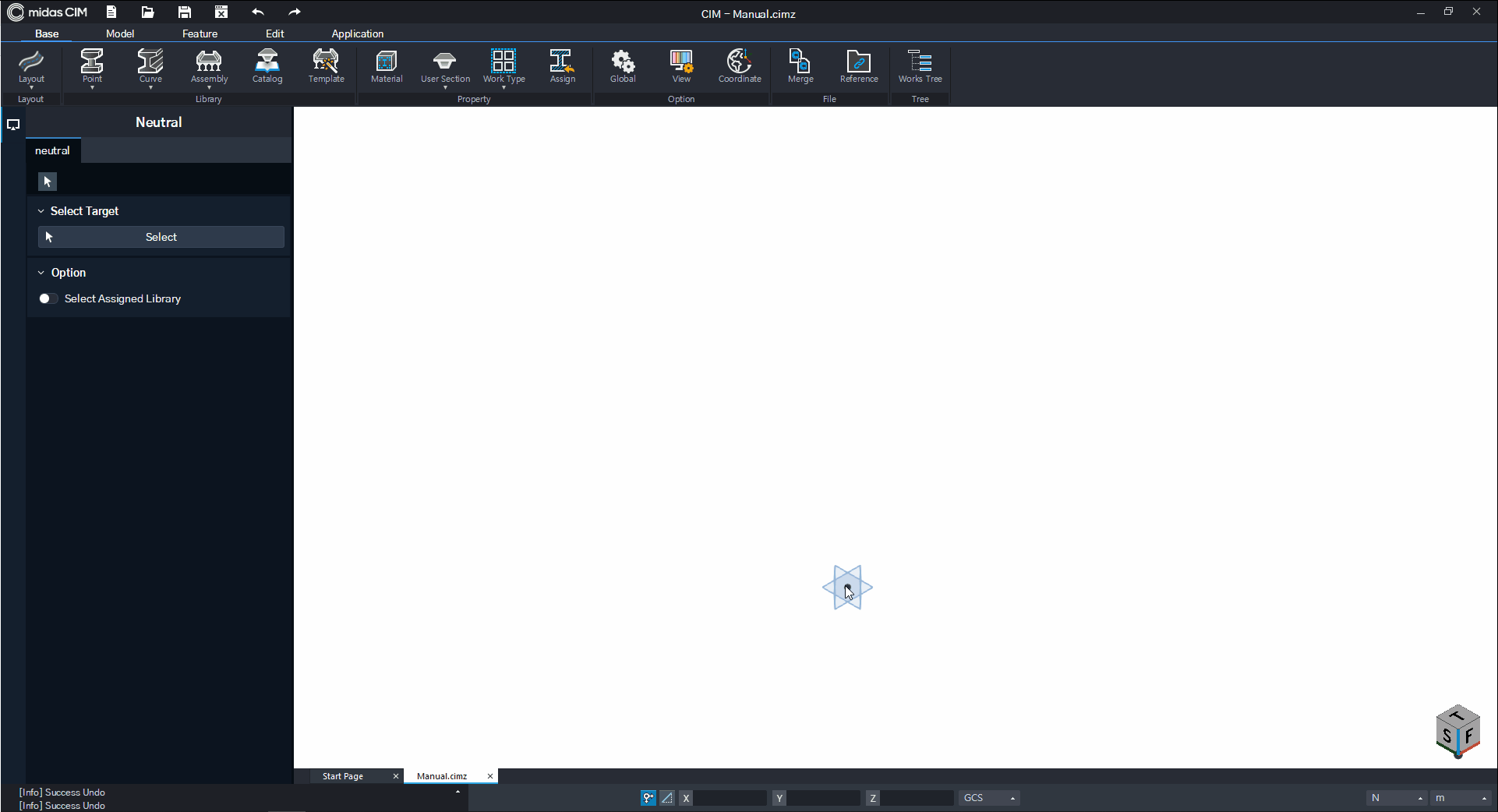

Create General Column

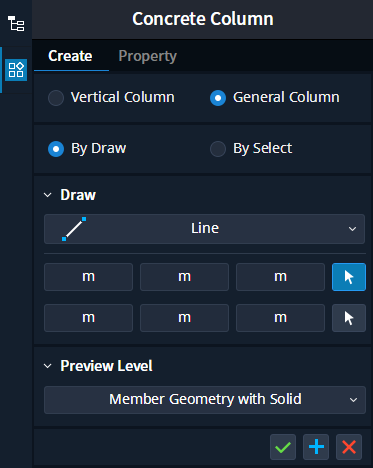

By Draw Method
A method for creating a Concrete Column by defining new line.
[Draw]
Construct a line to create a concrete column along that line.

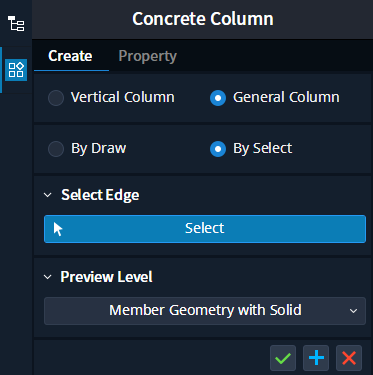

By Select Method
A method for creating a Concrete Column by selecting an already created line.
[Select Edge]
Select an edge to create a concrete column along that edge.
[Preview Level]
Sets the style of the Preview during the creation process.
Note
Reference - Preview Level
Reference Materials
1D Concrete Member Properties
