Summary

Create a wall part (2D) of concrete material.

How to Run

Ribbon Menu > [Model] Tab > [Member] Group > Concrete > Wall

Explanation

Create Vertical Wall

A method for defining lines to create concrete walls.

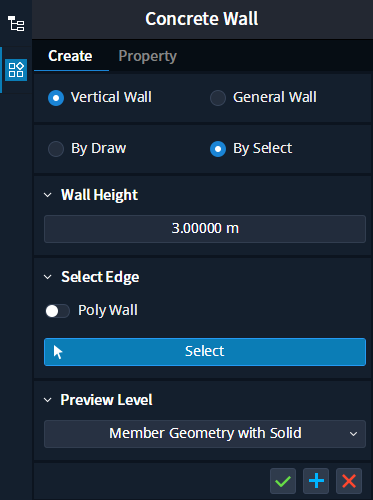

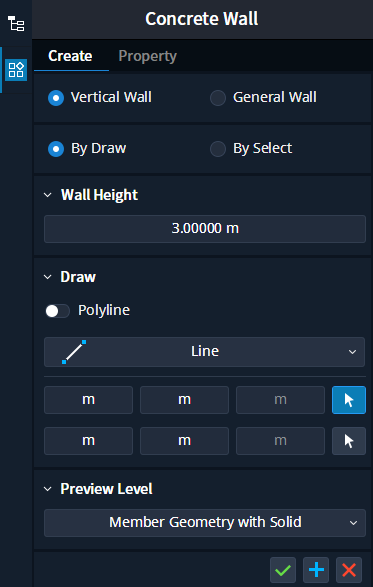

01_Vertical Wall Creation (By Draw Method).png 02_Vertical Wall Creation (By Draw Select).png

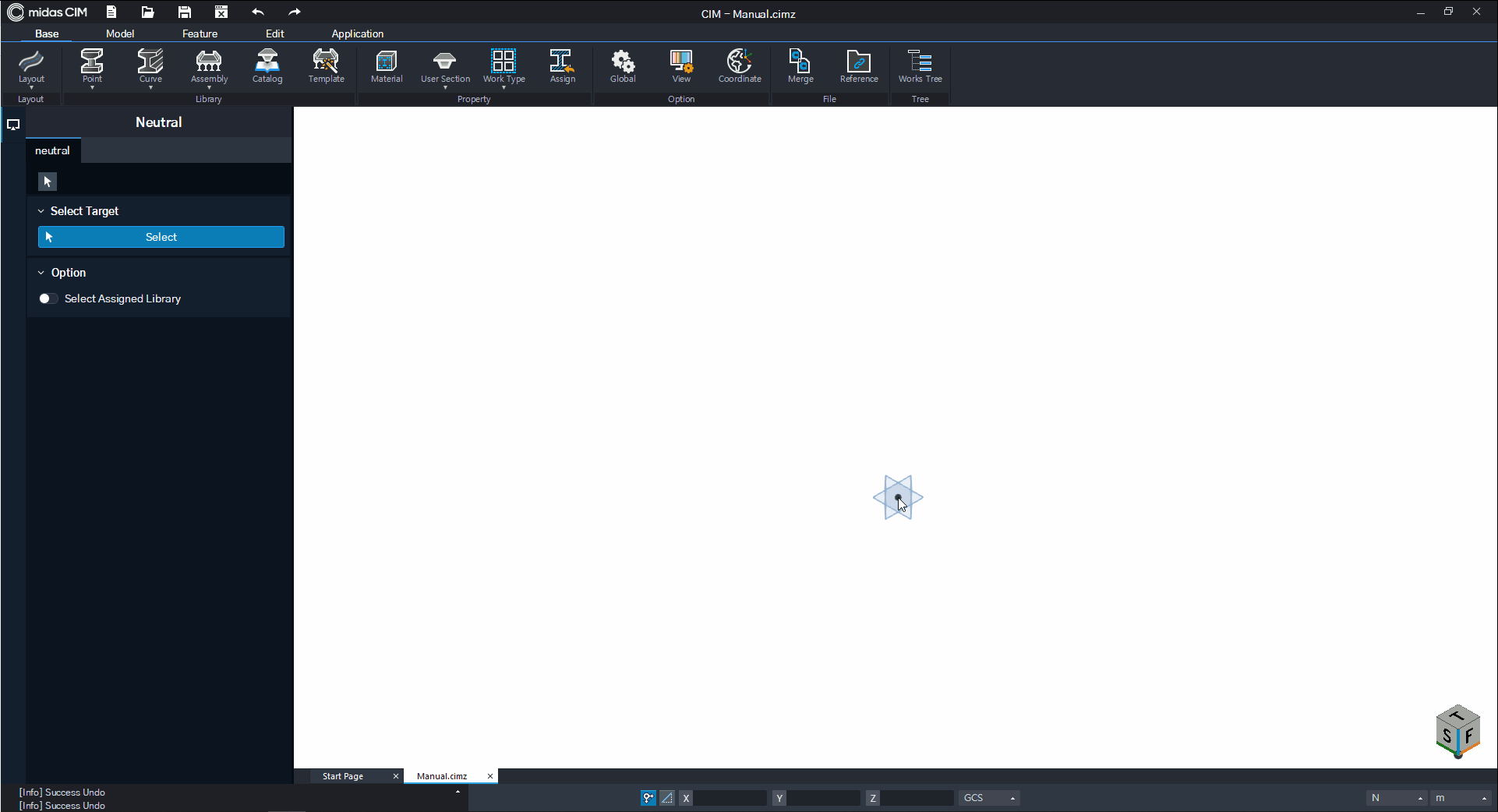

03_Vertical Wall Creation (By Draw Method).gif

[Wall Type]
Set the wall type.

Vertical Wall : Create a wall standing in the Z direction.

General Wall : Create a wall standing in any direction.

[Wall Height]

Enter the wall height.

[Draw / Select Edge]

By Draw : Select a method to create a vertical concrete wall. Construct a line to create a concrete wall along that line.

By Select : Select a method to create a vertical concrete wall. Select an edge to create a concrete wall along that edge.

Detailed Explanation (Poly Wall)e

Sets the wall to have continuity across the object.

Poly Beam Off (Default)

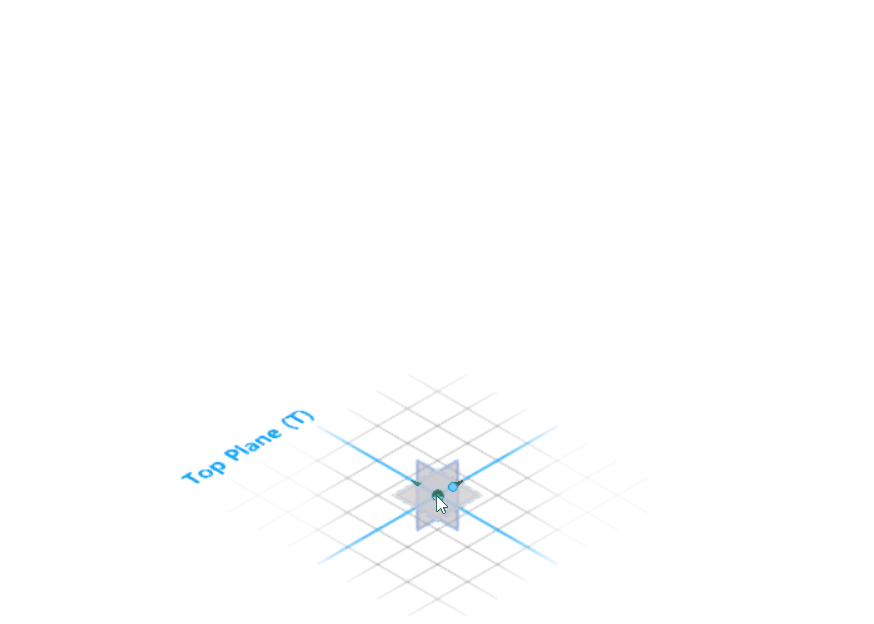

04_Vertical Wall Creation (Poly Wall Off).gif

Poly Beam On

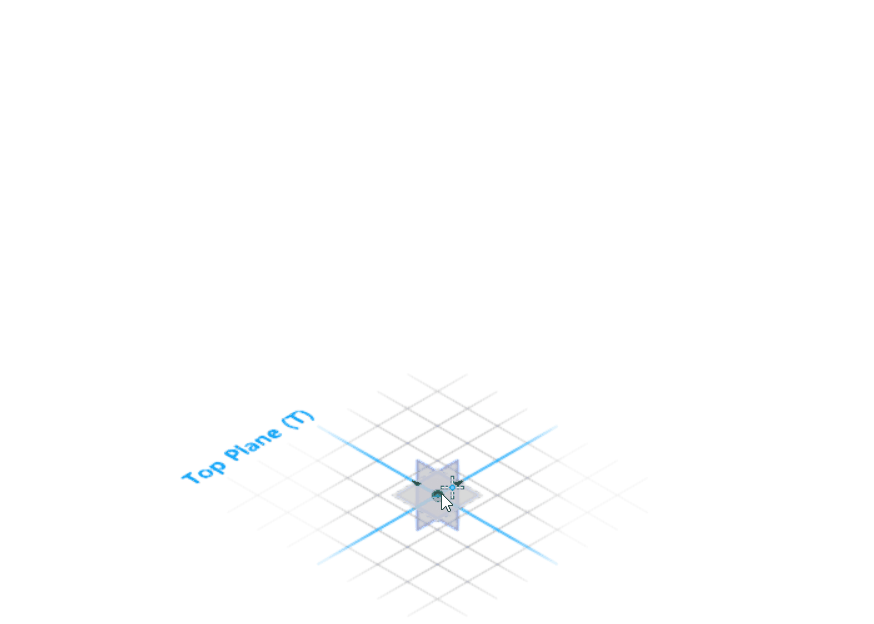

05_Vertical Wall Creation (Poly Wall On).gif

[Preview Level]
Sets the style of the Preview during the creation process.

Note
Reference - Preview Level

Create General Wall > By Draw Method

A method for creating concrete walls by defining new planes.

06_General Wall Creation (By Draw Method).png

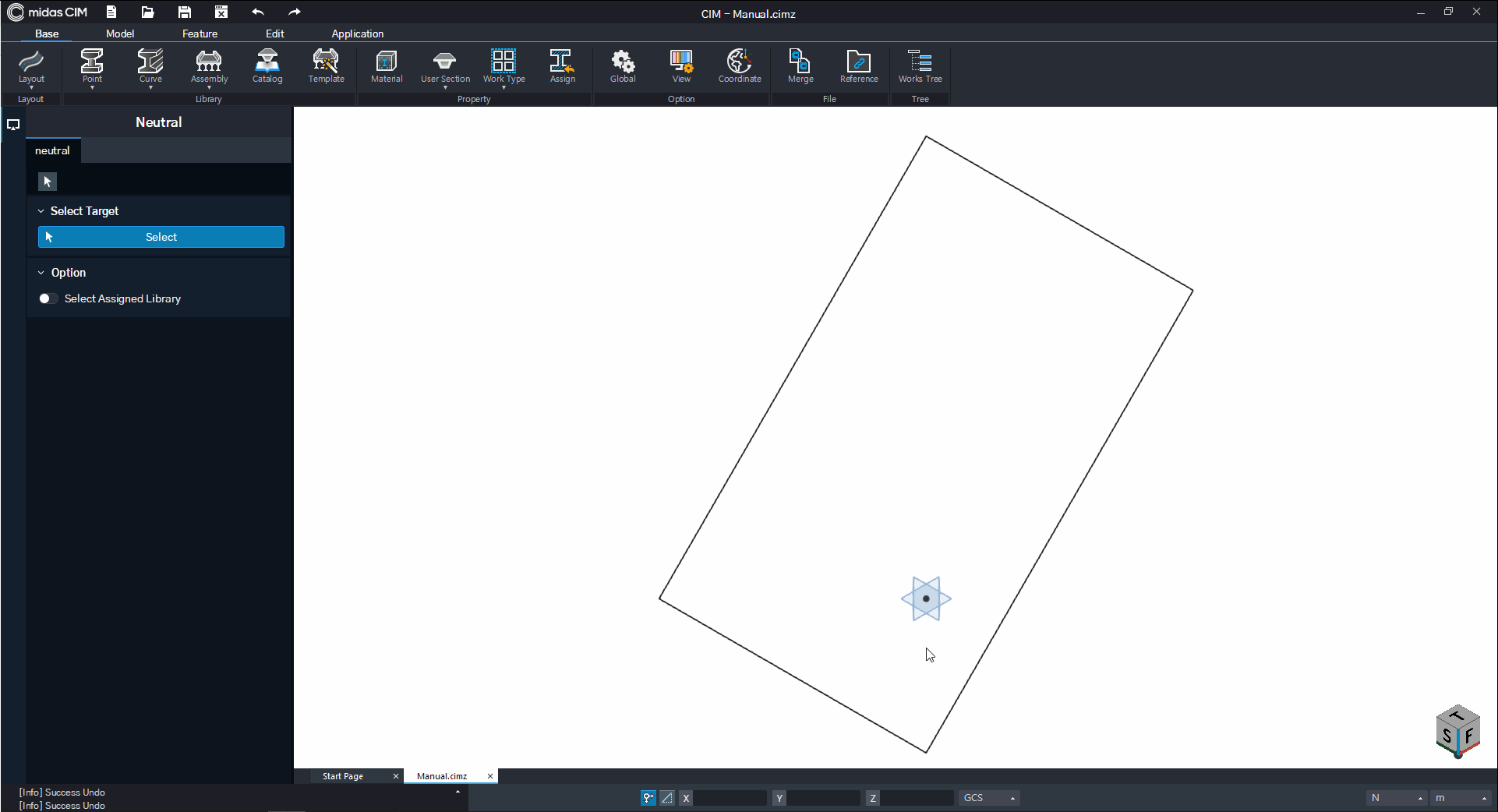

07_General Wall Creation (By Draw Method).gif

[Wall Type]

Set the wall type.

Vertical Wall : Create a wall standing in the Z direction.

General Wall : Create a wall standing in any direction.

[Draw]

Create a concrete wall by constructing a line using the By Draw method.

Note
Reference - Sketch

[Option]

Consider Inner Hole : Sets the application method when creating a region over another region.

Note
Reference - Consider Inner Hole

[Preview Level]
Sets the style of the Preview during the creation process.

Note
Reference - Preview Level

Create General Wall > By Select Method

A method of creating concrete walls by selecting previously created lines, faces, etc.

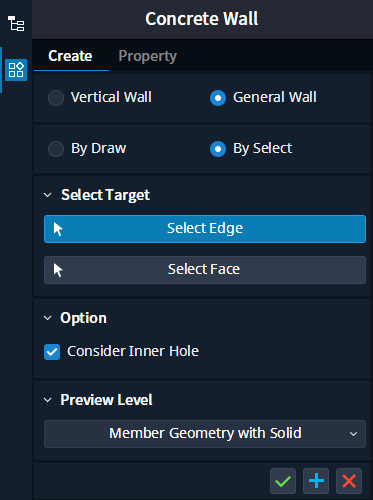

08-1_General Wall Creation (By Select Method).png

08_General Wall Creation (By Select Method).gif

[Wall Type]

Set the wall type.

Vertical Wall : Create a wall standing in the Z direction.

General Wall : Create a wall standing in any direction.

[Select Target]

Create a concrete wall by selecting an edge or a face using the By Draw method.

Select Edge : Select multiple lines into a closed line to create a concrete wall.

Select Face : Select a face to create a concrete wall.

[Option]

Consider Inner Hole : Sets the application method when creating a region over another region.

Note
Reference - Consider Inner Hole

[Preview Level]

Sets the style of the Preview during the creation process.

Note
Reference - Preview Level

Reference Materials

2D Member Properties
