Summary
- Creates a concrete Slab member (2D).
How to Run
- Ribbon Menu > [Model] Tab > [Member] Group > Concrete > Slab
Explanation

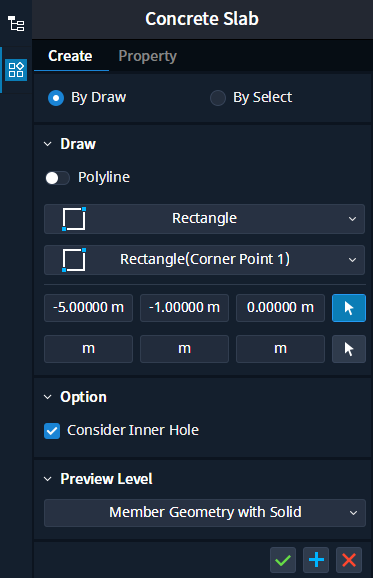

By Draw Method
A method for creating a concrete slab by defining a new plane.
[Draw]
Create a concrete slab by constructing a line using the By Draw method.
[Option]
Consider Inner Hole : Sets the application method when creating a region over another region.
Note
Reference - Consider Inner Hole
[Preview Level]
Sets the style of the Preview during the creation process.
Note
Reference - Preview Level

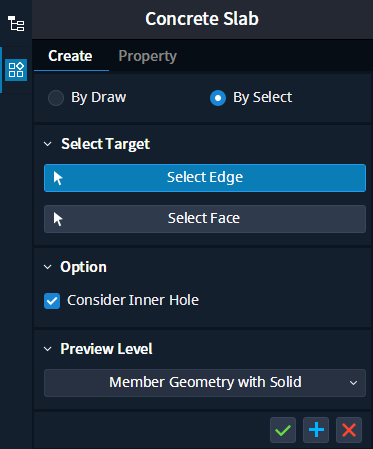

By Select Method
A method of creating a concrete slab by selecting previously created lines, faces, etc.
[Select Target]
Create a concrete slab by selecting an edge or a face using the By Draw method.
Select Edge : Select multiple lines into a closed line to create a concrete slab.
Select Face : Select a face to create a concrete slab.
[Option]
Consider Inner Hole : Sets the application method when creating a region over another region.
Note
Reference - Consider Inner Hole
[Preview Level]
Sets the style of the Preview during the creation process.
Note
Reference - Preview Level
Reference Materials
2D Member Properties
