Summary
- Creates a steel Brace member (1D).
How to Run

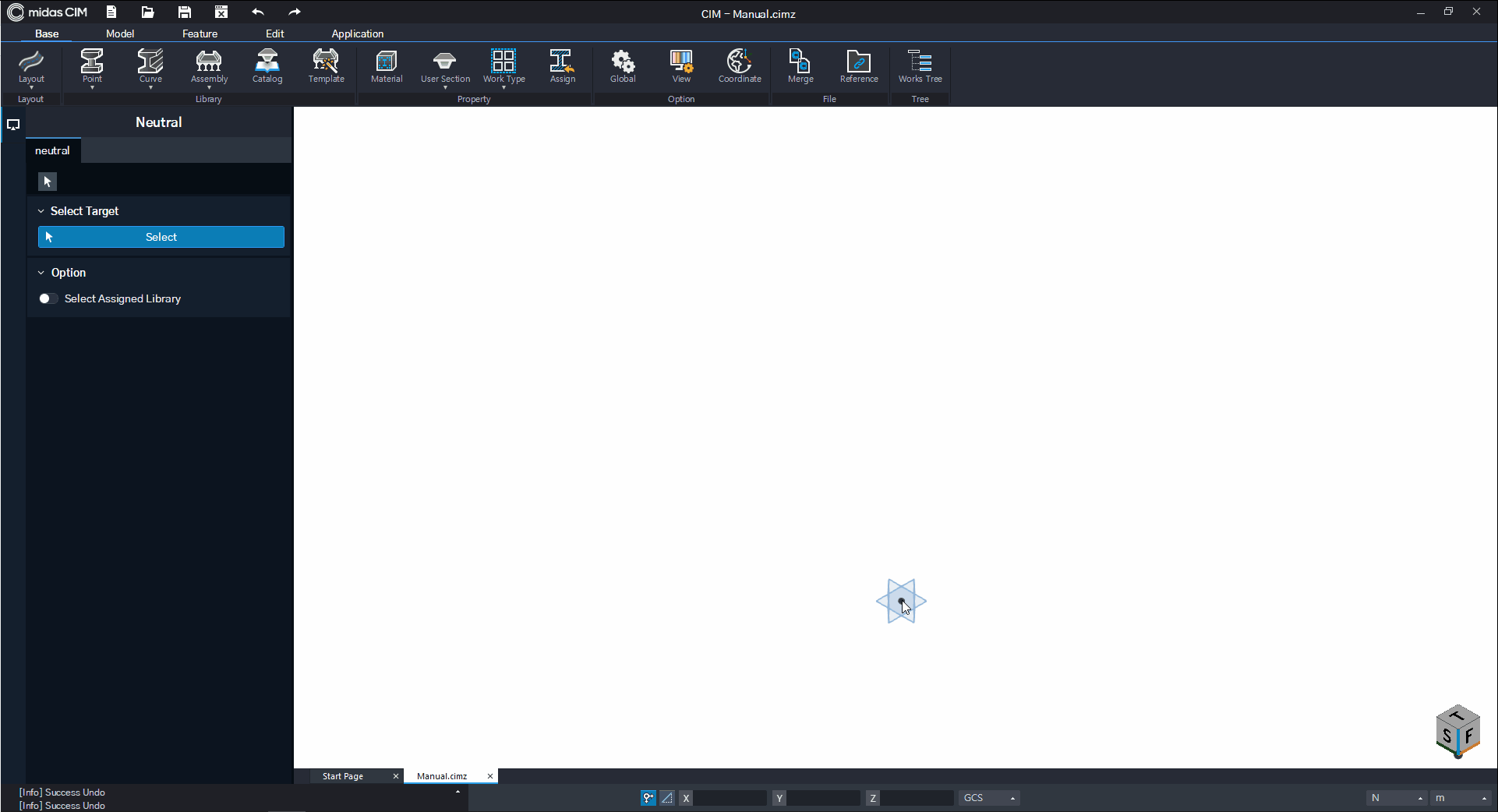

- Ribbon Menu > [Model] Tab > [Member] Group > Steel > Brace
Explanation

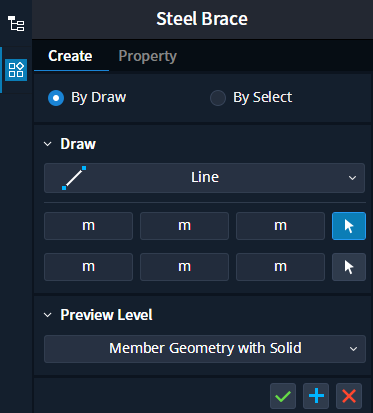

By Draw Method
A method of creating a steel brace by defining a new line.
[Draw]
Construct a line to create a steel brace along that line.

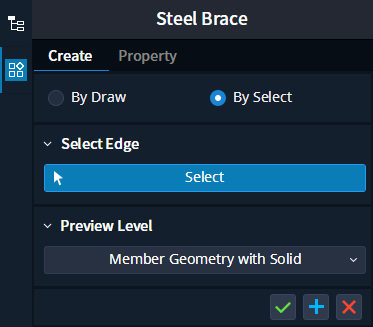

By Select Method
A method for creating a Steel Brace by selecting an already created line.
[Select Edge]
Select an edge to create a steel brace along that edge.
[Preview Level]
Sets the style of the Preview during the creation process.
Note
Reference - Preview Level
Reference Materials
1D Steel Member Properties
