Plate

Summary

• Creates a steel Plate member (2D).

How to Run

• Ribbon Menu > [Model] Tab > [Member] Group > Steel > Plate

Explanation

By Draw Method

A method for creating a steel plate by defining a new plane.

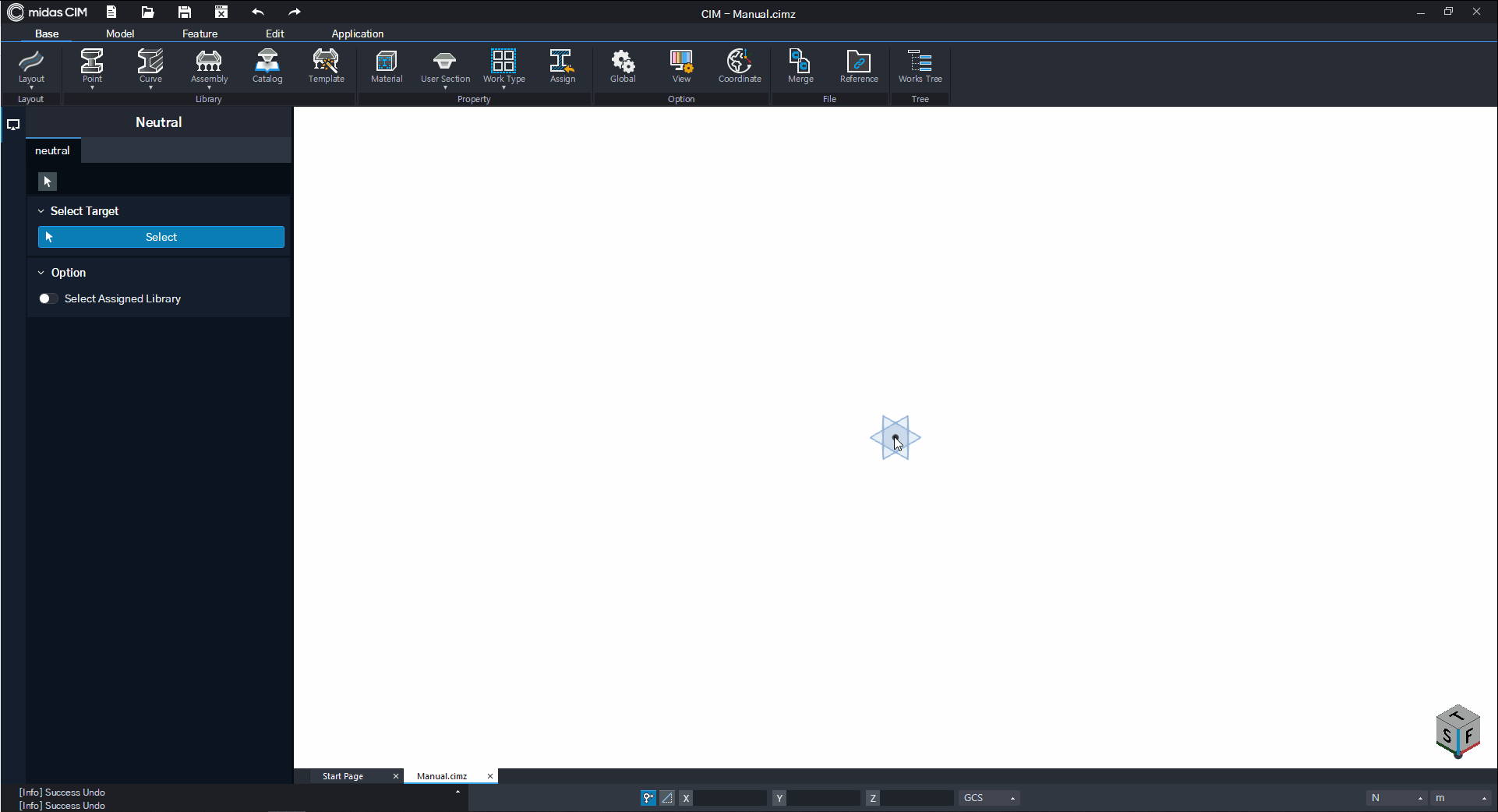

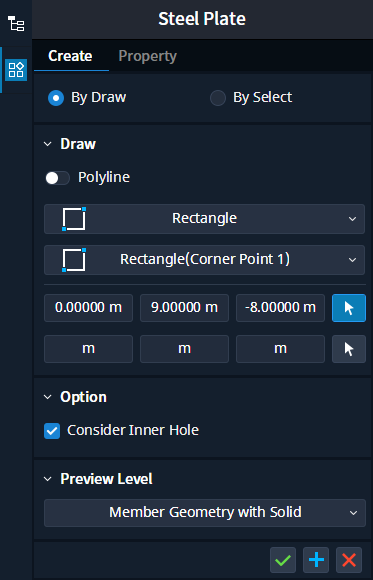

[Draw]

Create a steel plate by constructing a line using the By Draw method.

[Option]

Consider Inner Hole : Sets the application method when creating a region over another region.

Note
Reference - Consider Inner Hole

[Preview Level]

Sets the style of the Preview during the creation process.

Note
Reference - Preview Level

By Select Method

A method for creating a steel plate by selecting lines and faces that have already been created.

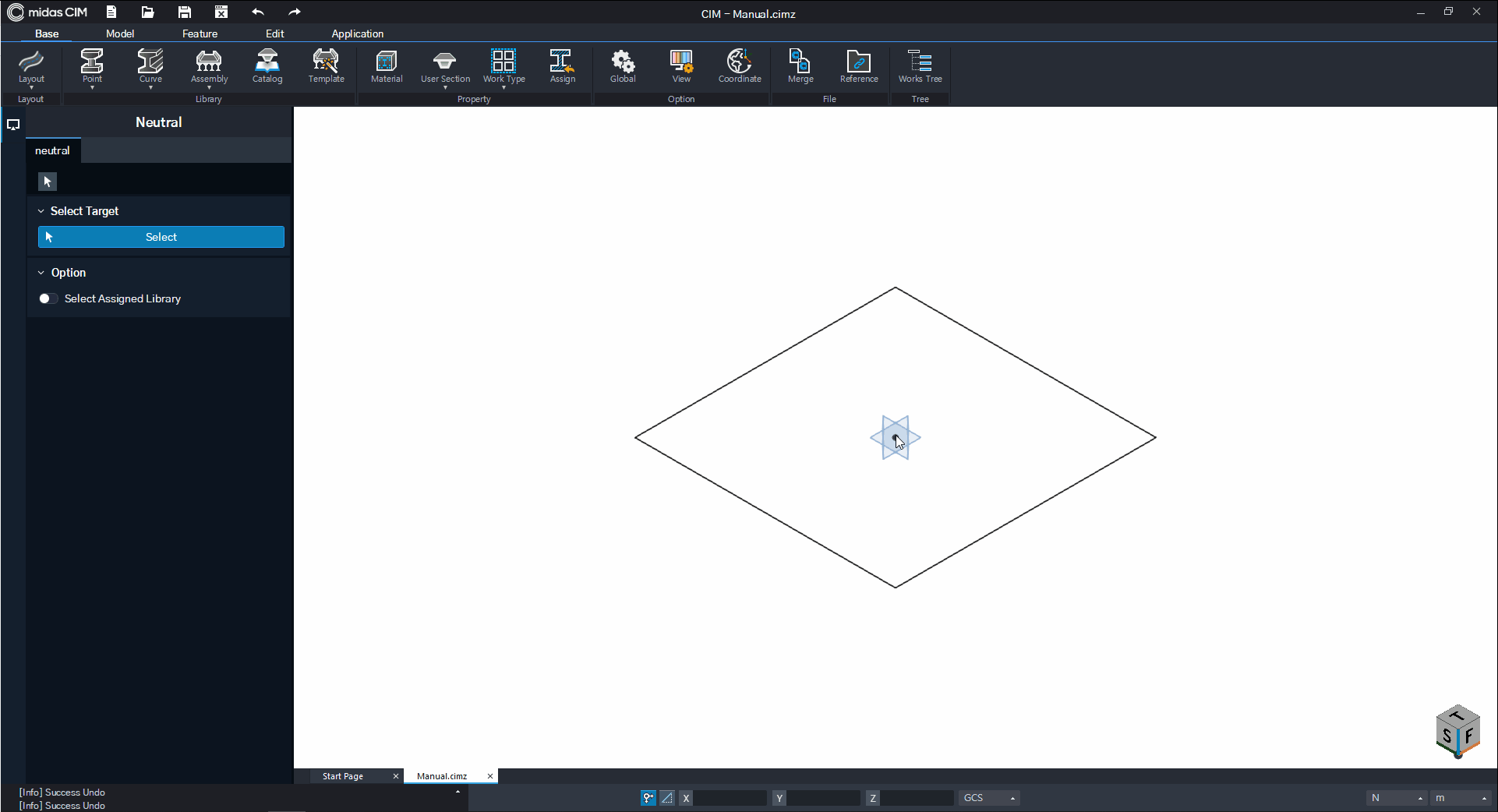

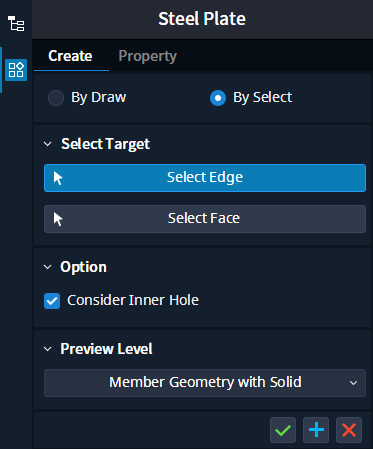

[Select Target]

Create a steel plate by selecting an edge or a face using the By Select method.

Select Edge : Select multiple lines into a closed line to create a steel plate.

Select Face : Select a face to create a steel plate.

[Option]

Consider Inner Hole : Sets the application method when creating a region over another region.

Note
Reference - Consider Inner Hole

[Preview Level]
Sets the style of the Preview during the creation process.

Note
Reference - Preview Level

Reference Materials

2D Member Properties
