Summary

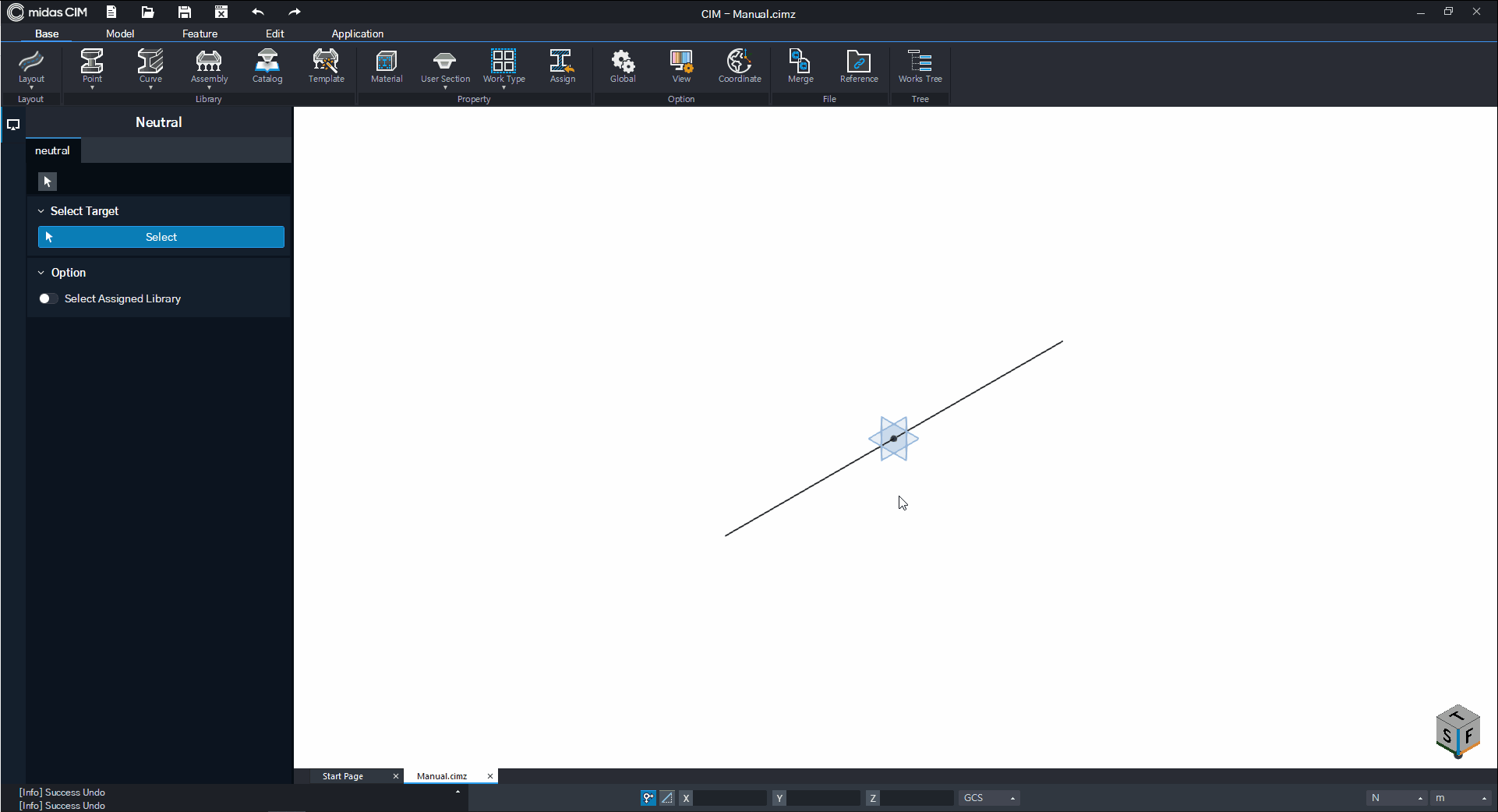

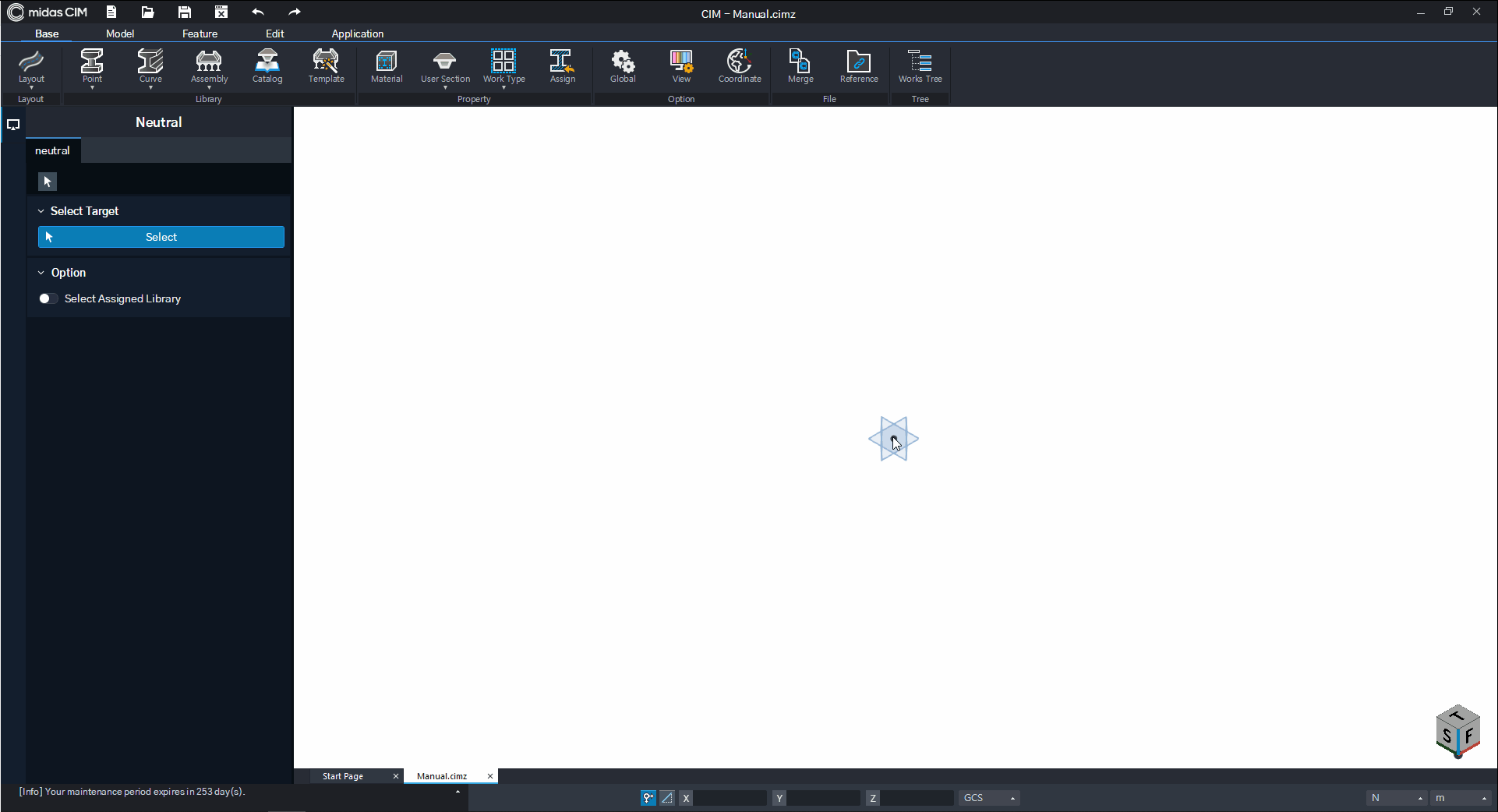

- Creates a steel Beam member (2D).
How to Run
- Ribbon Menu > [Model] Tab > [Member] Group > Steel > Beam
Explanation

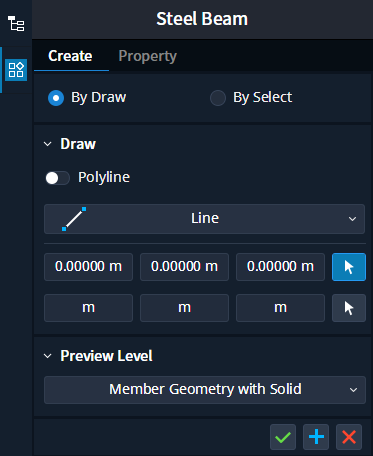

By Draw Method
A method for creating a Steel Beam by defining new lines.
[Draw]
Construct a line to create a steel beam based on the line shape.
Detailed Explanation (Poly Beam)

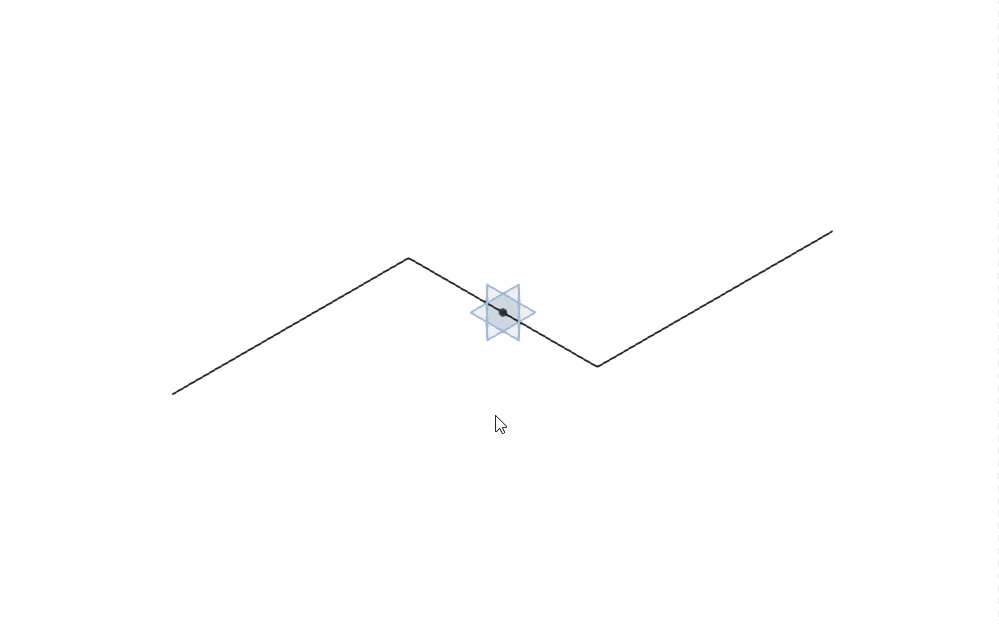

Sets the beam to have continuity across the object.

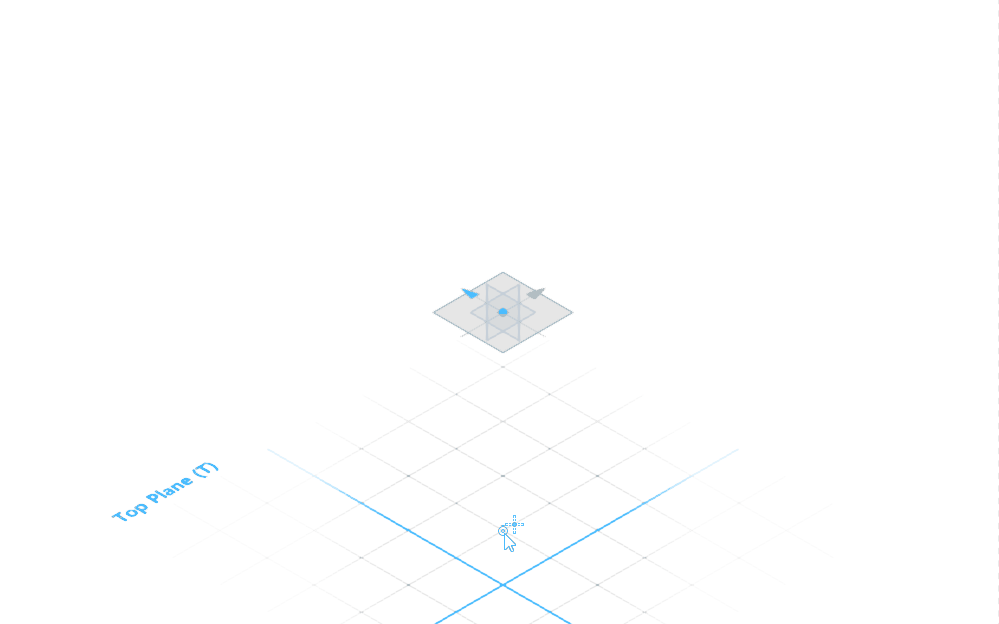

Poly Beam Off (Default)

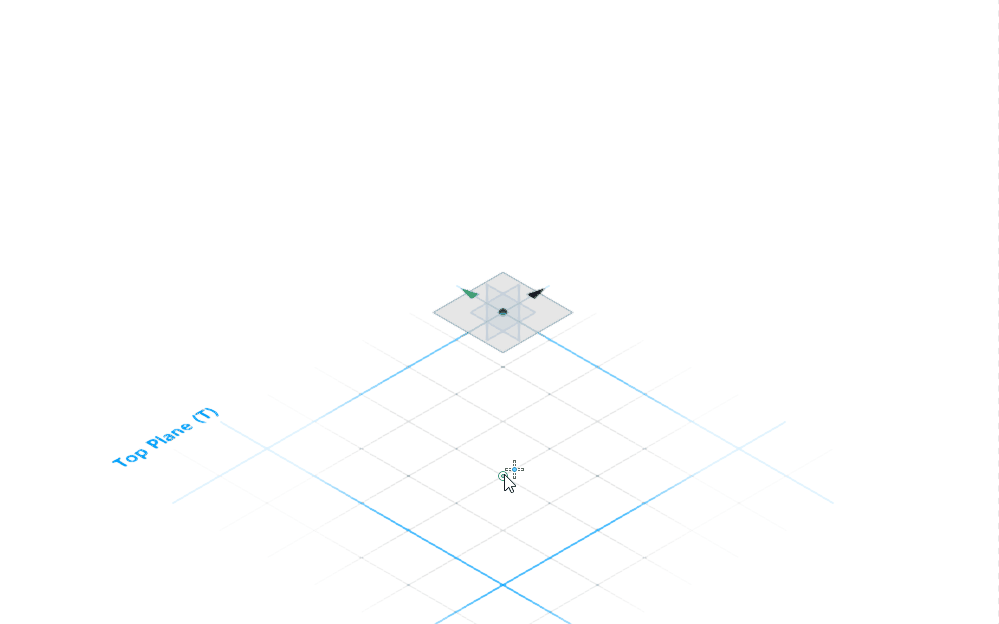

Poly Beam On
[Preview Level]
Sets the style of the Preview during the creation process.
Note
Reference - Preview Level

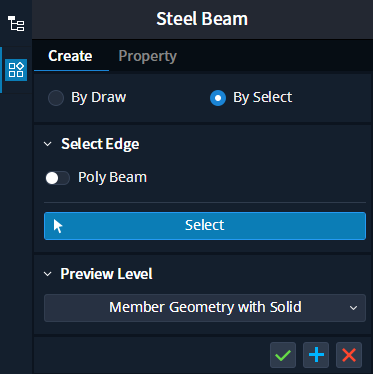

By Select Method
A method for creating a Steel Beam by selecting an already created line.
[Select Edge]
ESelect an Edge to create a steel beam that overlaps with that edge.
Detailed Explanation (Poly Beam)
ets the beam to have continuity across the object.
Poly Beam Off (Default)
Poly Beam On
[Preview Level]
Sets the style of the Preview during the creation process.
Note
Reference - Preview Level
Reference Materials
1D Steel Member Properties
