1. Description
This component operates the Vehicles AASHTO LRFD function in Civil NX.
Enter vehicle loads specified in AASHTO Standard.
The Vehicles AASHTO LRFD function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Vehicles] Menu
2. Grasshopper Path
[Midas] > [Moving Load] > [Vehicles AASHTO LRFD]

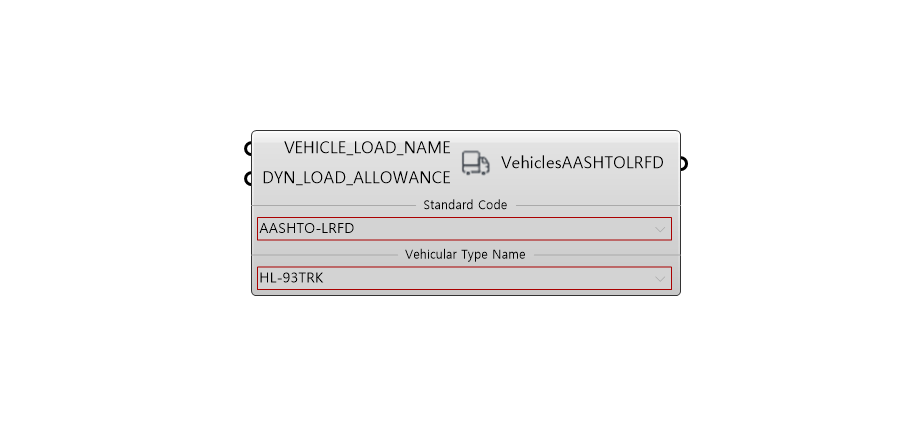

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | DYN_LOAD _ALLOWANCE |
Dynamic Load Allowance | Real | 0 | - |
| 3 | Standard Code | Standard Code | Select | AASHTO-LRFD | - |
| 4 | Vehicular Type Name |
Vehicular Type Name | Select | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicles AASHTO LRFD | Json | PUT/DELETE | - |
5. Reference API Manual Link
