Summary
- Sets the criteria for the specification of the Rebar.
How to Run
- Ribbon Menu > [Model] Tab > [Component] Group > Rebar > Specification
Explanation
Rebar Specification
Set rebar details based on standard.

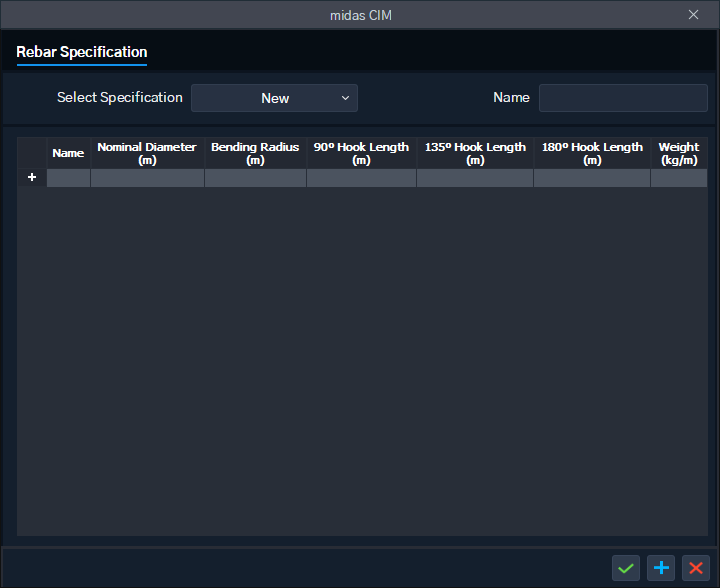

Rebar Specification
[Select Specification]
Displays the code provided by the program and the Specification item added by the user. When selected, the Specification details appear in the Table.
[Name]
Type the name of the Specification to add.
[Table]
The name, nominal diameter, curvature radius, hook length, and weight information for each reference are displayed.
Note
The OK or Apply button must be pressed to register the specification.
