Spiral Rebar

Summary

• Create a 3D shaped rebar.

How to Run

• Ribbon Menu > [Model] Tab > [Component] Group > Rebar > Other Type

Explanation

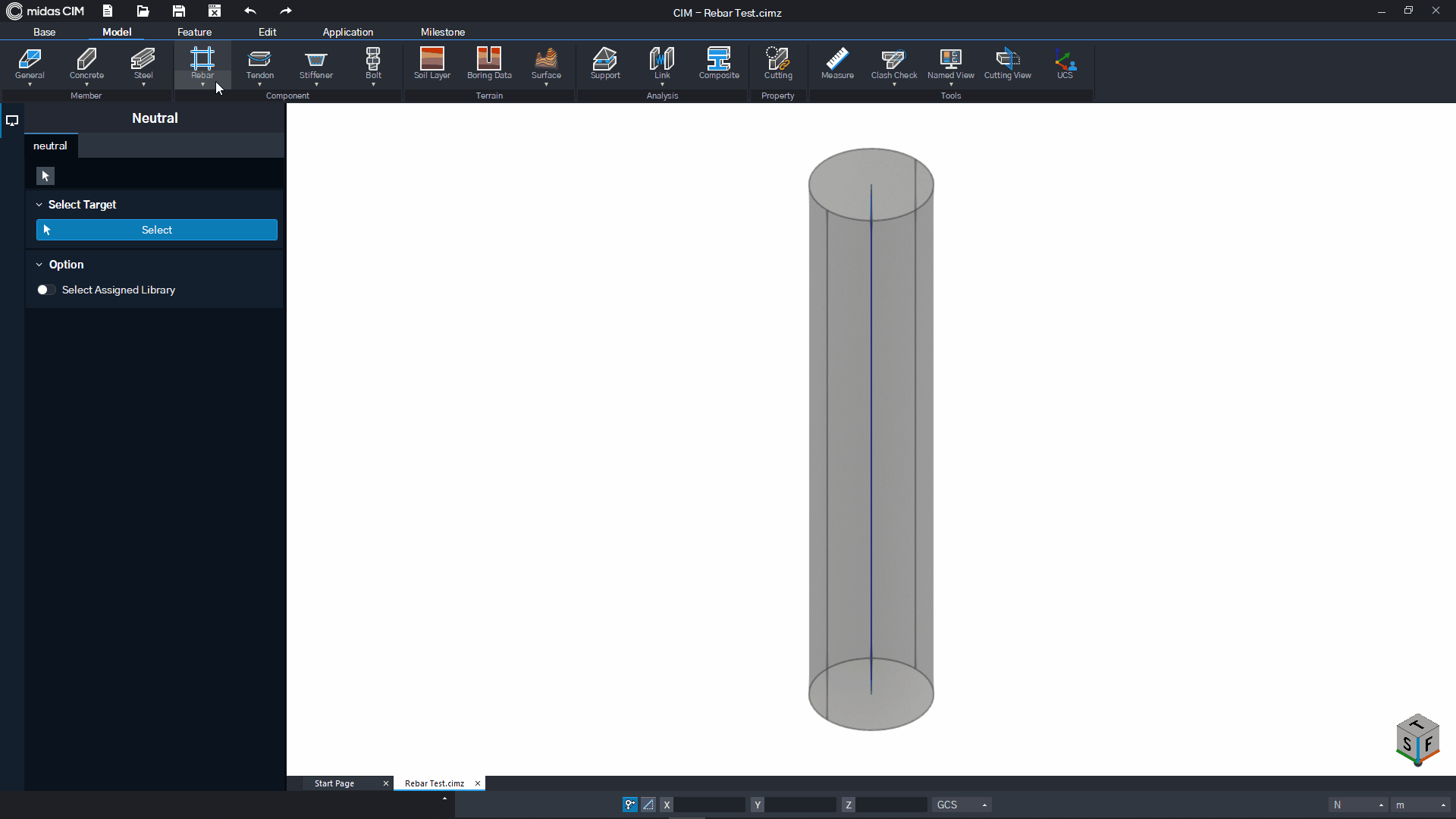

Create Spiral Rebar

Creates a spiral rebar on a circular member.

[Tab] Create

[Type]

Select the 3D shaped rebar type (CIM currently offers only the spiral rebar type)

Spiral Rebar : Creates a spiral rebar. This can only be created on circular section members.

[Select Member]

Select the object on which to place the rebar.

[Longitudinal Rebar]

Sets whether to create longitudinal rebar dependent on the 3D shaped rebar.

[Tab] Property

Note
Spiral Rebar Property

Note
Longitudinal Rebar Property for Spiral Rebar
