Summary
- Draws (defines) the Longitude Rebar on the Draw Plane.
How to Run
[Rebar Draw Mode]
- Ribbon Menu > [Rebar Draw] Tab > [Rebar] Group > Draw
Explanation
Select Transverse Rebar Method
Create a longitudinal rebar using the Select Transverse Rebar method.
[Tab] Draw
[Rebar Type]
Select the type and method of rebars to be constructed.
Select Longitudinal Rebar.
Choose Select Transverse Rebar.
[Draw Rebar]

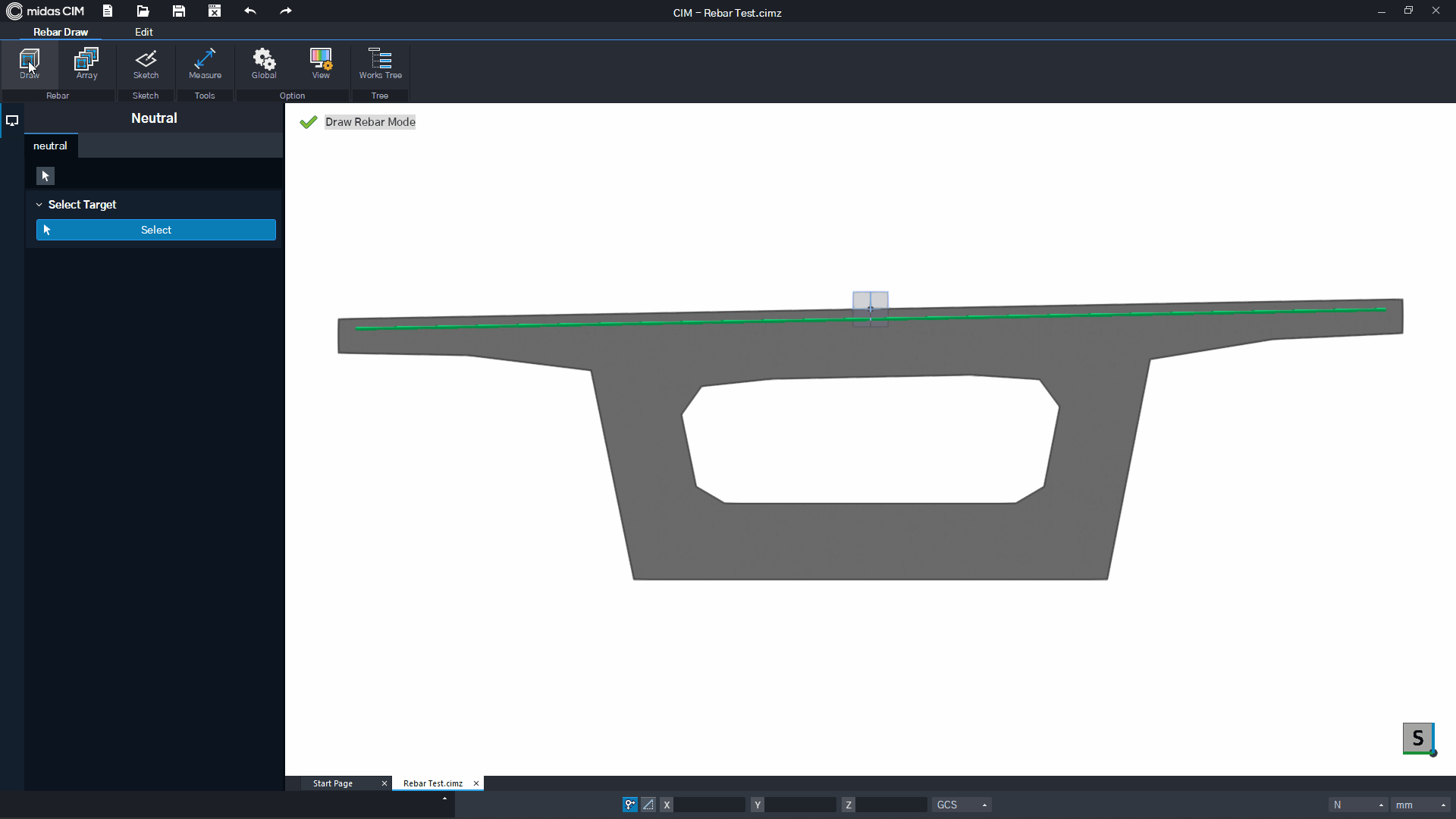

Select the desired portion of the transverse rebar to position the longitudinal rebar profile.
Reverse Direction : Apply the position of the rebar in the opposite direction relative to the edge.
Reverse Start Point : Switch the start and end points of the longitudinal rebar profile.
[Tab] Property
Note
Longitudinal Rebar Property
2 Points Method
Create longitudinal rebar using the 2 Points method.
[Tab] Draw
[Rebar Type]
Select the type and method of rebars to be constructed.
Select Longitudinal Rebar.
Select 2 Points.
[Draw Rebar]
Click two points above the transverse rebar to position the longitudinal rebar profile.
[Tab] Property
Note
Longitudinal Rebar Property
Single Method
Create longitudinal rebars using the Single method.
[Tab] Draw
[Rebar Type]
Select the type and method of rebars to be constructed.
Select Longitudinal Rebar.
Select Single.
[Draw Rebar]
Click a point above the transverse rebar to position the longitudinal rebar profile.
[Tab] Property
Note
Longitudinal Rebar Property
Reference Materials
Longitudinal Rebar Property
