Summary
- Draw (define) the Shear Reinforcement on the plane.
How to Run
[Rebar Draw Mode]
- Ribbon Menu > [Rebar Draw] Tab > [Rebar] Group > Draw
Explanation

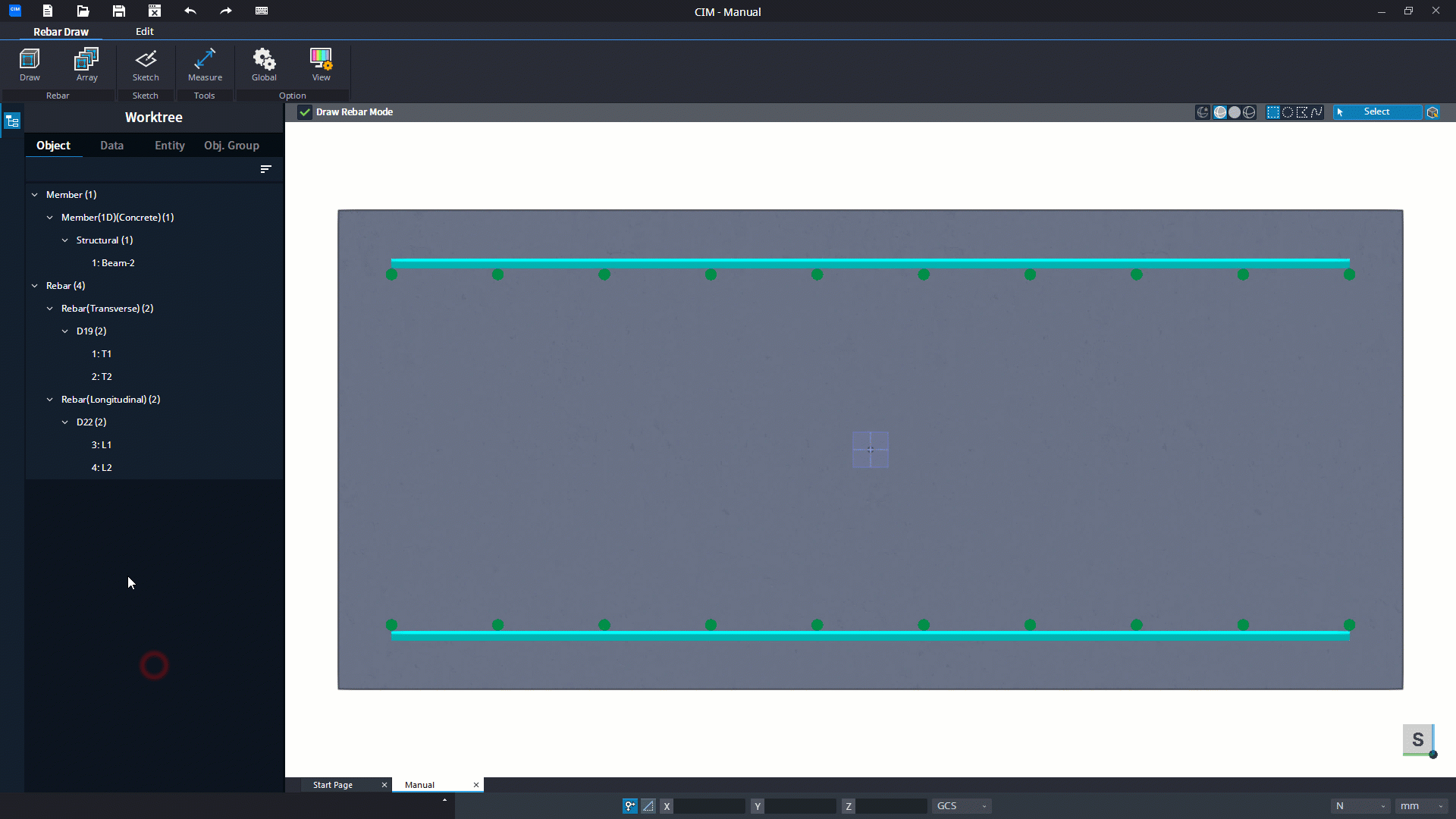

How to Draw Shear Reinforcement
Creates a shear reinforcement that is subordinate to the transverse or longitudinal rebar.
[Tab] Draw
[Rebar Type]
Select the type and method of rebars to be constructed.
Select Shear Reinforcement.
[Draw Rebar]
Select the point reinforcement (transverse/longitudinal) to which the shear reinforcement is subordinated.
Closed Rebar
On : Creates a closed shear reinforcement.
Off : Createa a non-closed shear reinforcement.
Switch Start Point : Switch the position of the shear reinforcement start and points.
Align Bending Center
On : Rebars in the perpendicular direction of the section are at the center of the bending part of the hear reinforcement.
Off : Rebars in the perpendicular direction of the section in the perpendicular direction of the section are at the end of the straight section of the shear reinforcement.
Note
The target rebar of the shear reinforcement, i.e., the rebar in the perpendicular direction of the section, must be arrayed.
[Tab] Property
Shear Reinforcement Property
