Summary
- Enter Rebar Draw Mode to draw Rebar in a plane.
How to Run
- Ribbon Menu > [Model] Tab > [Component] Group > Rebar > Draw
Explanation

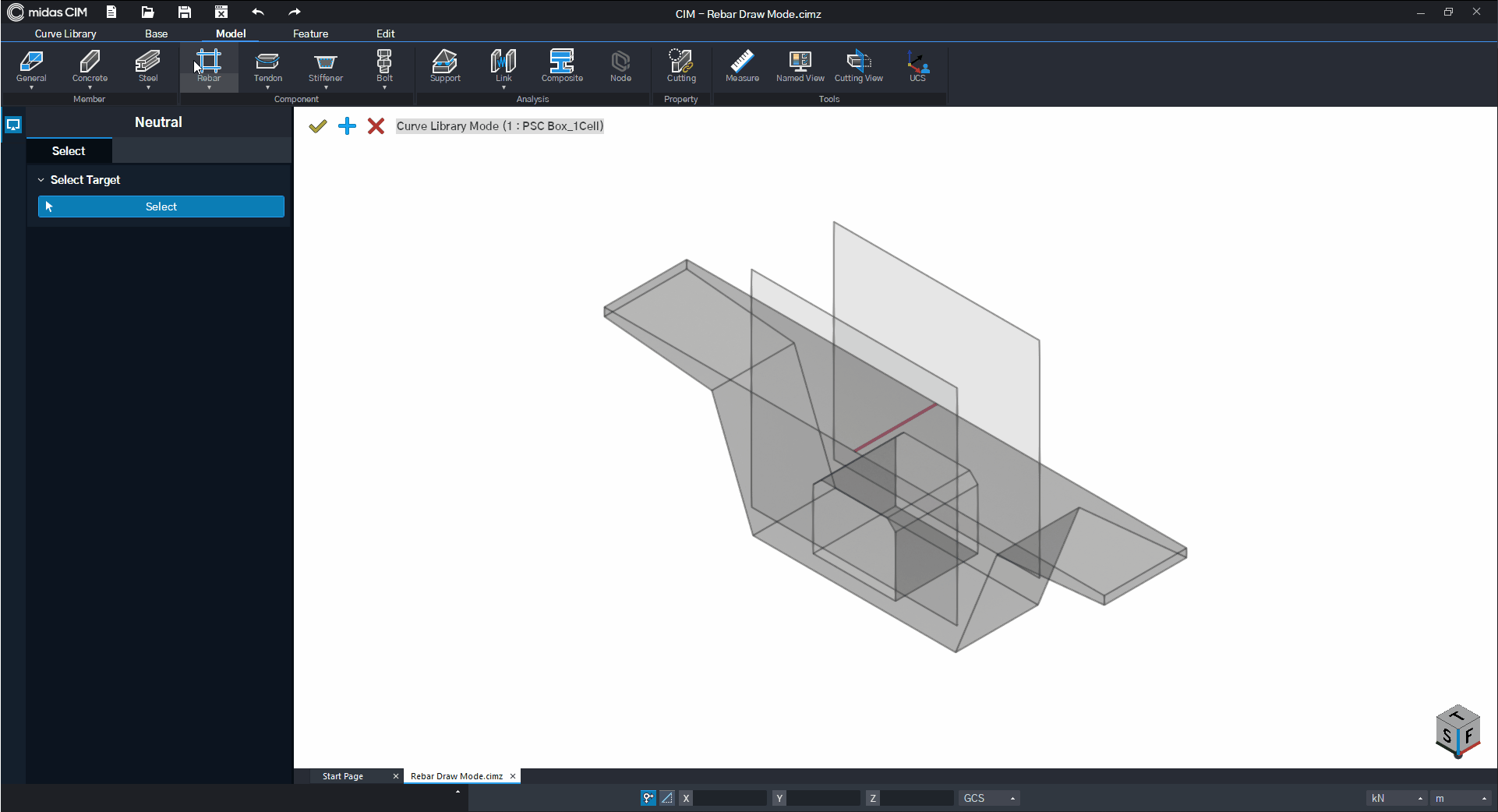

Enter Rebar Draw Mode
Select the target member and plane and then enter Rebar Draw Mode.

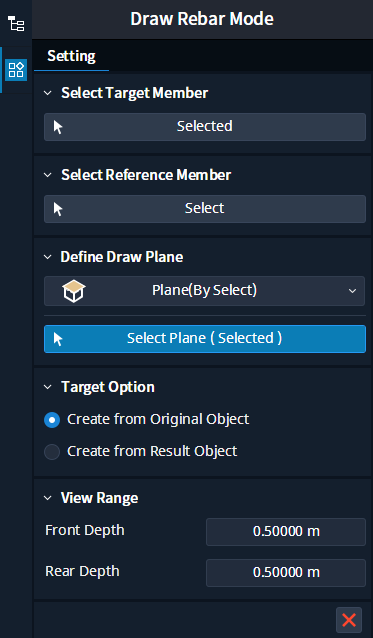

[Select Target Member]
Select the concrete member on which to place the rebar.
[Select Reference Member]
Select the concrete member to use as a reference for rebar construction.
The reference member can hold the Snap of the Vertex and Edge of the member during rebar construction, but the member has no dependency with the rebar.
[Define Draw Plane]
Define the reference plane on which to place the rebar.
Note
Define Plane
[Target Option]
Select the type of object on which to place the rebar.
Create from Original Object : Create a plane from the original object of the target member and then enter Draw Mode. The rebars are created on the original object of the target member.
Create from Result Object : Create a plane for the target member's result object and enter Draw Mode. The rebars are created on the target member's result object.
Note
Depending on the application of the Cutting Property function, the member has the original object and the result object.
[View Range]
Defines the front and rear visible ranges of the defined Draw Plane.
